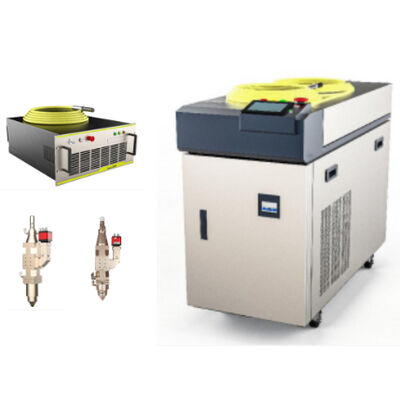

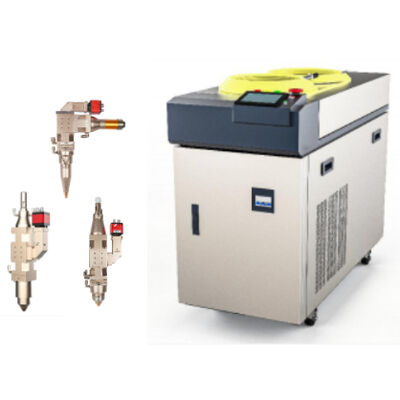

HW YAG Laser Welder Compatible with Multiple Platforms and Optical Path Structures

Name: HW YAG Laser Welder Compatible with Multiple Platforms and Optical Path Structures
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-Y-8/25/80/160/300/500
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-Y-8/25/80/160/300/500
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

Model:

HW-Y-8/25/80/160/300/500

Weight:

100/170/180/220/240 Kg

Wavelength:

1064nm

Power Stability:

± 2.5 / ± 3.0

Pulse Width:

15 Ms

Frequency:

30/100 Hz

Input Electric:

AC220 50/60 Hz / AC380 50/60 Hz

Working Mode:

Pulse

Dimension:

955*415*870 Mm/ 1175mm×515mm×980mm/ 1360mm×630mm×1120mm

Cooling Mode:

Air / Water

Pulse Energy:

5J /25J /50J / 70/100J

Equipmen:

1/1.2/3/6/12/16 Kw

Output Power:

8/25/80/160/300/500W

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

YAG laser welder multiple platforms

YAG laser welding machine optical path

YAG laser welder with warranty

Product Description

HW YAG Laser Welder Compatible with Multiple Platforms and Optical Path Structures

This YAG energy negative feedback laser welding machine uses an advanced fiber optic transmission output method, allowing laser energy to be transmitted smoothly and efficiently to the welding port. The equipment can switch between single-path or multi-path output according to different production needs, making it convenient for users to flexibly allocate processing cycles and production tasks. At the same time, the machine is compatible with various types of workbenches, including automated rotary platforms, precision positioning platforms, and custom fixture workbenches, making the overall application more flexible and suitable for various production process layouts.

Key Features

Optical fiber transmission output, compatible with various platforms and optical path structures.
High-performance optical path structure paired with imported optical components.
Optical path with enhanced tolerance and stable power output.
Built-in PID feedback system ensures consistent welding quality over time.
Application scope covering precision welding needs across multiple industries.

Technical Specifications

Model	HW-Y-8	HW-Y-25	HW-Y-80	HW-Y-160	HW-Y-300	HW-Y-500
Input Electric	AC220 50/60 Hz	AC220 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz
Wavelength	1064nm	1064nm	1064nm	1064nm	1064nm	1064nm
Output Power	8 W	25 W	80 W	160 W	300 W	500 W
Pulse Energy	5 J	25 J	50 J	50 J	70/100 J	70/100 J
Pulse width	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms
Frequency	30 Hz	30 Hz	100 Hz	100 Hz	100 Hz	100 Hz
Power Stability	± 2.5	± 2.5	± 3.0	± 3.0	± 3.0	± 3.0
Working Mode	Pulse	Pulse	Pulse	Pulse	Pulse	Pulse
Cooling mode	Air	Air	Water	Water	Water	Water
Weight	100 Kg	100 Kg	170 Kg	180 Kg	220 Kg	240 Kg
Equipment	1 Kw	1.2 Kw	3 Kw	6 Kw	12 Kw	16 Kw
Dimension	955415870 mm		1175mm515mm980mm		1360mm630mm1120mm

Applications

This device is suitable for precision metal welding in fields such as optical communication devices, USB connectors, precise mobile phone accessories, 18650 battery caps, battery tabs, electronic connectors, hardware accessories, kitchen and sanitary fittings, jewelry, elevator panels, household appliance structural components, and motor parts, providing customers with stable, efficient, and reliable welding solutions.

About Shenzhen Hanwei Laser

The YAG energy negative feedback laser welding machine is widely used in the production of optical communication devices, USB and HDMI connector manufacturing, mobile phone components, 18650 and various battery structural parts, battery tab welding, precision hardware products, kitchen and bathroom components, jewelry processing, elevator decorative panels, home appliance metal parts, motor components, and other industries. Its high stability and high precision characteristics make it an ideal device for metal welding in multiple fields.

Hanwei Laser upholds the principle of "taking R&D as the core driver, technology as the solid foundation, and service as the backbone support", providing professional solutions for B2B customers spanning laser equipment producers and automation firms. Its service pledges revolve around dependable product quality, continuous technological upgrading, persistent innovation capability, and thoughtful after-sales support. Endowed with profound professional knowledge in laser technology, laser system integration, power supply configuration, control system development, optical structure design, and welding process optimization, Hanwei Laser’s technical team draws on robust theoretical underpinnings and extensive practical experience to deliver high-efficiency, high-performance solutions tailored to diverse industrial scenarios.

The company’s products boast a proprietary optical system architecture, coupled with a scientifically optimized optical path arrangement and high energy transmission efficiency. Core optical components are crafted from premium imported quartz optical lenses and integrated with cutting-edge overseas coating technologies, attaining industry-leading standards in terms of reflectivity, light transmittance, and heat resistance. This sophisticated design not only guarantees the stability of laser energy delivery but also effectively prolongs the service lifespan of the system while enhancing the consistency of processing results. Hanwei Laser’s product portfolio enjoys widespread applications across a broad spectrum of sectors, including new energy batteries, automotive manufacturing, auto spare parts, electronic circuits, optical fiber communication devices, mobile electronics, household appliances, kitchen and bathroom hardware, precision instruments, measuring tools, jewelry processing, medical equipment, solar energy, eyewear production, and motor manufacturing industries.

Product Portfolio

Ring-Spot laser welding equipment
Blue laser welding systems
Blue laser + fiber hybrid welders
Diode + fiber hybrid welders
YAG laser welders
YAG + Diode hybrid welders
Diode laser welders
Mold repair laser welders
QCW laser welders
