HanWei 600w Single Lamp Single Bar Full Chamber Water Cooling YAG Welding Machine

Name: HanWei 600w Single Lamp Single Bar Full Chamber Water Cooling YAG Welding Machine
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-Y-600
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-Y-600
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

Model:

HW-Y-600

Input Voltage:

AC380V 50/60 Hz

Wavelength:

1064nm

Max Pulse Energy:

70/100 J

Pulse Width:

15 Ms

Output Power:

600W

Repeat Frequency:

100 Hz

Power Stability:

± 3 %

Net Weight:

240 Kg

Optical Separate Type:

Time / Energy

Cooling Mode:

Water Cooling

Optical Route:

1~4 (Optional)

Dimension:

1375*628*1150mm

Max Peak Power:

10 Kw

Working Mode:

Pulse

Equipment Power:

20 KW

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Product Description

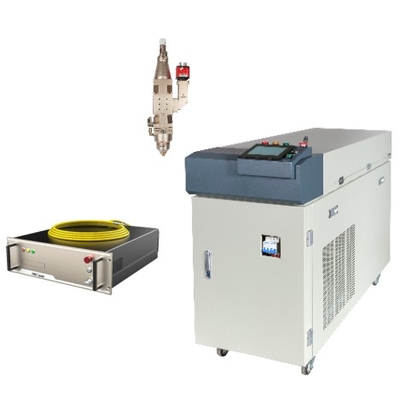

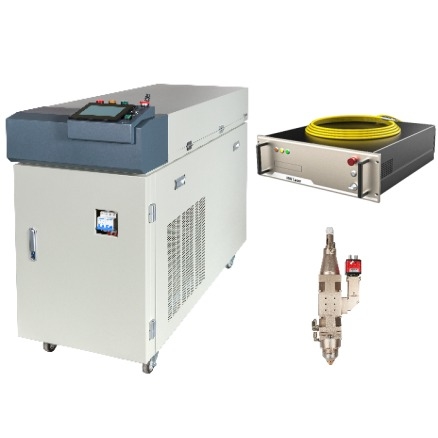

HanWei 600w Single Lamp Single Bar Full Chamber Water Cooling YAG Welding Machine

The HW-YAG-600W stands as our company’s core product, adopting a single-lamp-and-rod structure while integrating key components like imported optical resonators. It features a high anti-damage threshold and steady light velocity; in terms of standards, it leverages an independently R&D PID adaptive feedback power supply system—effectively guaranteeing the equipment’s high conversion efficiency, strong beam stability, outstanding penetrating performance, and quicker welding rate.

For power battery connection strap welding and seal nail welding, this product reaches a welding efficiency of up to 6 PPM and a pass rate of 99.5%, thus gaining wide application in power battery welding fields. Moreover, the equipment is furnished with intelligent monitoring for water flow, temperature of water with specific conductivity, xenon lamps, and other key parameters.

Key Features

Independent R&D, production and sales
Single-lamp & single-rod full-cavity water cooling
More stable light spots and stronger penetration
Equipped with multiple intelligent monitoring functions
Imported quartz optical lenses and accessories
Unique optical system design

Technical Specifications

Model	HW-Y-600
Input Voltage	AC380V 50/60 Hz
Wavelength	1064nm
Output Power	600W
Max Pulse Energy	70/100 J
Pulse Width	15 ms
Repeat Frequency	100 Hz
Power Stability	± 3 %
Working Mode	Pulse
Cooling Mode	Water Cooling
Net Weight	240 Kg
Max Peak Power	10 Kw
Dimension	13756281150mm
Optical Route	1~4 (Optional)
Optical Separate Type	Time / Energy
Equipment Power	20 Kw

Areas of Applications

New energy battery welding, particularly used in the power battery field.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As a certified national high-tech and "specialized, sophisticated, distinctive, and novel" enterprise, we focus on full-industry-chain R&D, production, and sales of welding-dedicated lasers and related technologies.

Our product portfolio includes:

Ring-Spot laser welding equipment
Blue laser welding equipment
Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
YAG and Diode laser welding equipment
Mold repair laser welding equipment
QCW laser welding equipment

With a team of technical experts specializing in laser welding R&D, we serve industries including new energy batteries, automotive, electronics, medical devices, and more. Our products deliver irreplaceable welding performance across multiple applications.
