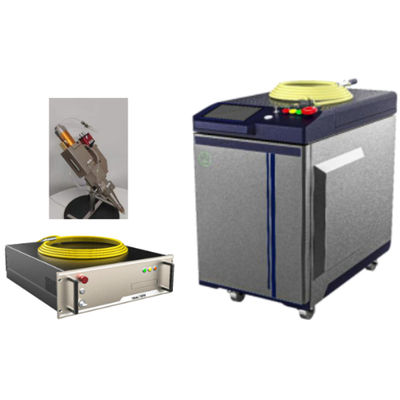

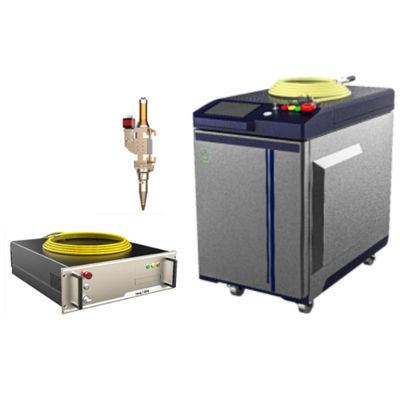

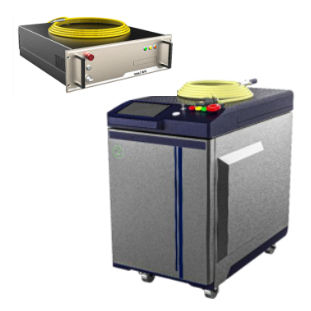

Complete Version Spot-Ring Beam Welder with Stable Welding Forming for 3C Industry

Complete Version Spot-Ring Beam Welder with Stable Welding Forming for 3C Industry

Brand Name:	HanWei
Model Number:	HW-DH-2Kw+2Kw
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

Laser Power:

Up To 6000W

Cooling Method:

Water Cooling

Laser Power Stability:

≤ 3%

Wavelength:

1080 Nm ±3

Guide Beam(mW):

≥0.5

Connection:

QBH

Fiber Cable Length:

10m (Customized)

Fiber Core(um):

50/100

Frequency(Khz):

1~100

Operating Voltage:

380v±10% 50/60Hz

Working Mode:

CW/QCW/PWM

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

Complete Version Spot-Ring Beam Welder

Stable Welding Forming Laser Welder

3C Industry Laser Welding Machine

Product Description

Complete Version Spot-Ring Beam Welder with Stable Welding Forming for 3C Industry

Product Description

The full-version point ring light spot welding machine uses the company's independently developed technology of adjustable inner and outer ring beam lasers. This laser can independently control the energy distribution of the inner and outer ring spots, making the spot shape and energy density during welding more controllable and uniform. Compared with traditional single-spot lasers, this system can better control thermal input, reduce the heat-affected zone, and improve weld formation stability during welding, thereby demonstrating higher process flexibility and welding consistency in high-reflectivity materials, precision welding, and complex surface welding.

Product Features

Self-developed, designed and manufactured the complete chain from laser source, control system and laser welding head.
Power ratio and core diameter ratio can be customized.
Equipped with a waveform card, it can achieve QCW (arbitrary waveform for spot welding can be set), PWM (modulation), CW (continuous), and light emission modes, and it comes with soft-start and soft-stop functions, ensuring stable welding forming and excellent consistency.

Technical Parameters

Model	HW-DH-2Kw+2Kw	HW-DH-3Kw+3Kw	HW-DH-2Kw+4Kw
Laser Power	4000 W	6000 W	6000 W
Working mode	CW/QCW/PWM	CW/QCW/PWM	CW/QCW/PWM
Wavelength	1080 nm ±3	1080 nm ±3	1080 nm ±3
Frequency(Khz)	1-100	1-100	1-100
Guide Beam(mW)	≥0.5	≥0.5	≥0.5
Connection	QBH	QBH	QBH
Fiber Core(um)	50/100	50/100	50/100
Fiber Cable Length	10m (Customized)	10m (Customized)	10m (Customized)
Operating Voltage	380v±10% 50/60Hz	380v±10% 50/60Hz	380v±10% 50/60Hz
Power Consum	8Kw	12Kw	12Kw
Air Switch Capacity	60A	60A	60A
Work Mode	102	105	105
Working Temp	5~40℃
Working Humidity	≤70
Cooling Method	Water Cooling
Cooller Temp	25℃ (28℃ Summer)
Chiller Electric	≥12 KW
Machine Dimension	1000450850mm
Machine Weight	100 Kg

Product Application

In practical welding applications, the equipment can switch modes on-site according to process requirements without the need to change optical accessories or hardware structures, greatly improving process debugging efficiency and production flexibility. Whether for deep-penetration welding, heat-conduction welding, or micro-joining processes, this laser can achieve optimal welding results through spot mode and energy ratio adjustments. It is particularly suitable for welding scenarios with high-quality and complex process demands and is one of the key devices for enhancing welding consistency, efficiency, and product quality.

Shen Zhen HanWei Laser Enterprise and Features

Shenzhen Hanwei Laser is committed to enabling all system integrators to access world-leading laser welding technologies. As a national high-tech and "specialized, refined, distinctive, and innovative" enterprise, it stands among the global few that focus on the full-industry-chain layout--covering R&D, production, and sales of welding-specific lasers, laser control systems, laser optical systems, and laser welding processes.

Product Portfolio

Ring-Spot laser welding machines
Blue laser welding machines
Blue laser + fiber composite welding machines
Diode + fiber composite welding machines
YAG + Diode composite welding machines
YAG laser welding machines
Diode laser welding machines
Mold repair laser welding machines
QCW laser welding machines

Supplementary products for the above include matching laser welding control systems, laser welding optical systems, and related peripheral accessories for laser welding. The company upholds the philosophy of "taking R&D as the core, technology as the guarantee, and service as the support". It exclusively serves B-end clients, including laser equipment manufacturers and automation firms, with service objectives centered on "reliable quality, continuous improvement, constant innovation, and thoughtful service". From component sourcing, R&D and manufacturing, to assembly testing and sales support, Hanwei Laser consistently provides integrators with internationally cutting-edge welding products and technical services. It has gathered top-tier talents in China, including a team of technical experts with long-term experience in laser welding R&D. In particular, the team boasts profound theoretical and practical expertise in lasers, laser systems, laser power supplies, laser control, laser optical system design, and welding process research. Hanwei Laser's products are widely applied in sectors such as new energy batteries, automobiles, auto parts, electronic circuits, optical fiber communication devices, mobile phones, home appliances, kitchen and bathroom hardware, precision instruments, meters, gold and silver jewelry, medical devices, solar energy, eyewear, and motors. In many of these industries, several of its products deliver irreplaceable welding performance.
