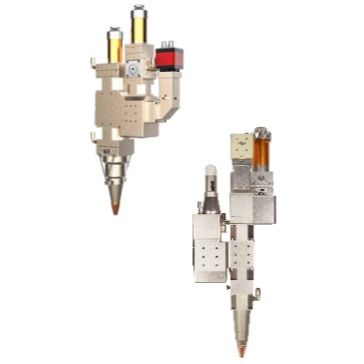

Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper

Basic Properties
Place of Origin: Shenzhen, China
Brand Name: HanWei
Certification: CE
Model Number: HW-36-70-100200-Y-QBH
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

2000w wobble laser welding head

Handheld Fiber Laser Welding Head

handheld welding head Metal
Specifications
Model: HW-36-70-100200-Y-QBH Net Weight: 2.5 Kg
Head Type: Y Laser Power: Blue Laser 1000 W & Fiber Laser 3000 W
Focusing Focal Length: 150 / 200mm Collimation Focal Length: Blue 70mm – Fiber 100mm
Laser Beam Type: ―、○、◎、⊙、△、8 Interface Type: QBH - QBH
Accessible Wave Range: 450nm + 1064nm Laser Beam Size Adjustable: 0.5 – 5mm
Usable Laser Source: Blue And Fiber Laser Source
High Light:

blue light hybrid welding head

,

fiber laser welding head with warranty

,

double motor copper welding head
Product Description
Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper
The hybrid-laser wobble welding system, combining Hanwei's blue laser (450nm) and fiber laser (1064nm), enables coaxial integration of the two laser sources. It is specifically applied to the welding of thick, highly reflective metals such as gold, silver, copper, and aluminum.

The adoption of the wobble technique expands its application scope and enhances the adaptability of its technical parameters. Highly reflective materials exhibit higher absorptivity for the blue-fiber hybrid laser, which minimizes spark generation during the welding process. This not only ensures high-quality welds but also delivers a smooth and neat weld surface.

Applications
Widely used in welding high-reflectivity materials.
Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper 0
Key Features
  • Used for processing thicker materials
  • Welding with no spatter
  • Single-side welding with double-side formation
  • The adjustable spot oscillation design significantly broadens the welding process window and application range
Technical Parameters
Model HW-36-70-100200-Y-QBH
Laser Power Blue laser 1000 W & Fiber laser 3000 W
Focusing Focal Length 150 / 200mm
Interface Type QBH - QBH
Head Type Y
Net Weight 2.5 Kg
Laser Beam Size Adjustable 0.5 – 5mm
Accessible Wave Range 450nm + 1064nm
Collimation Focal Length

Blue 70 – Fiber 100
Laser Beam Type ―,○,◎,⊙,△,8
Usable Laser Source Blue and Fiber Laser Source
Performance Advantages
  • More than 70% high absorptivity
  • Reduces equipment power requirements compared to red guide beam laser
  • High and stable welding quality with deep penetration
  • Smooth welding surface finish
  • Suitable for thick and highly reflective material welding
  • Low spark production during welding
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser aspires to democratize the adoption of world-leading laser welding technology for all system integrators. As one of the global elite enterprises certified as both a national high-tech entity and a "specialized, sophisticated, distinctive, and novel" firm, it concentrates exclusively on the full-industry-chain R &D, production, and sales of specialized laser welding equipment—encompassing welding-specific lasers, laser control systems, laser optical systems, and core laser welding technologies.
Product Portfolio
Ring-Spot laser welding systems, blue laser welding units, blue laser + fiber hybrid welding setups, Diode + fiber hybrid welding equipment, YAG + Diode hybrid welding systems, YAG laser welding units, Diode laser welding devices, mold repair laser welding systems, QCW laser welding equipment. Complementary to these are compatible laser welding control systems, laser welding optical systems, and supporting products for laser welding peripheral machinery.
Core Principles
Adhering to the principle of "taking R &D as the core, technology as the cornerstone, and service as the support," Hanwei Laser has consistently served B-end clients (including laser equipment manufacturers and automation firms). It takes "reliable quality, continuous progress, persistent innovation, and thoughtful service" as its service objectives.
Applications
New energy batteries, automotive manufacturing, auto parts production, electronic circuits, optical fiber communication devices, mobile electronics, home appliances, kitchen and bathroom hardware, precision instruments, measuring tools, gold and silver jewelry, medical devices, solar energy equipment, eyewear manufacturing, and motor production.

Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper 1  Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper 2

Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper 3   Various Laser Beam Type Blue Light Hybrid Welding Head with Double Motor for Copper 4
