| Brand Name: | HanWei |
| Model Number: | HW-F-3000w/4000w/6000w |
| MOQ: | 1 set |
| Price: | Negotia |
| Payment Terms: | T/T |
| Supply Ability: | 1200 set per year |
Description
AMB - Adjustable Mode Beam Laser Source, HanWei Laser have devoted itself to Research and Development for many years. AMB welding with Less-spatter, High speed welding, high plumpness welding features. And also, with HanWei independent developed laser control system. The AMB welding technology used to many industries and field such as :
New energy resources product welding, Sheet metal welding, Hardware, kitchen, jewelry, elevator panel, household electrical appliances, corrugated pipe, battery, Solar energy, Optical communication cover, aviation parts.
The stabilization of the weld pool virtually eliminates spatter, maximizes uptime and significantly reduces rework of welded parts.
Advantage
Independent research and development, produce and sale.
High reflective materials welding like copper, brass and aluminum with low-spatter, achieve better welding seam.
High quality welding, the welding surface achieve stable quality.
High speed welding.
Low welding part pollution.
Specification
| Model | HW-F-1000W | HW-F-1500W | HW-F-2000W | HW-F-3000W | 4000 – 6000 W |
| Laser Power | 1000 W | 1500 W | 2000 W | 3000 W | 6000w |
| Wavelength | 1070 nm | 1070 nm | 1070 nm | 1070 nm | 1070 nm |
| Output power | 1000 W | 1500 W | 2000 W | 3000 W | 6000w |
| Working mode | CW/QCW/PWM | CW/QCW/PWM | CW/QCW/PWM | CW/QCW/PWM | CW/QCW/PWM |
| Cooling way | Water | Water | Water | Water | Water |
| Equipment power | 5 KW | 7 KW | 9 KW | 13 KW | 25 KW |
| Source Dimension | 665*450*450mm | 665*450*450mm | 665*450*450mm | 665*450*450mm | 865*450*450mm |
| Source Weight | 50 Kg | 50 Kg | 50 Kg | 50 Kg | 60 Kg |

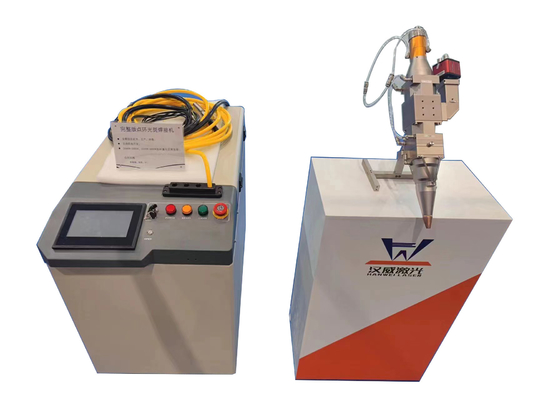

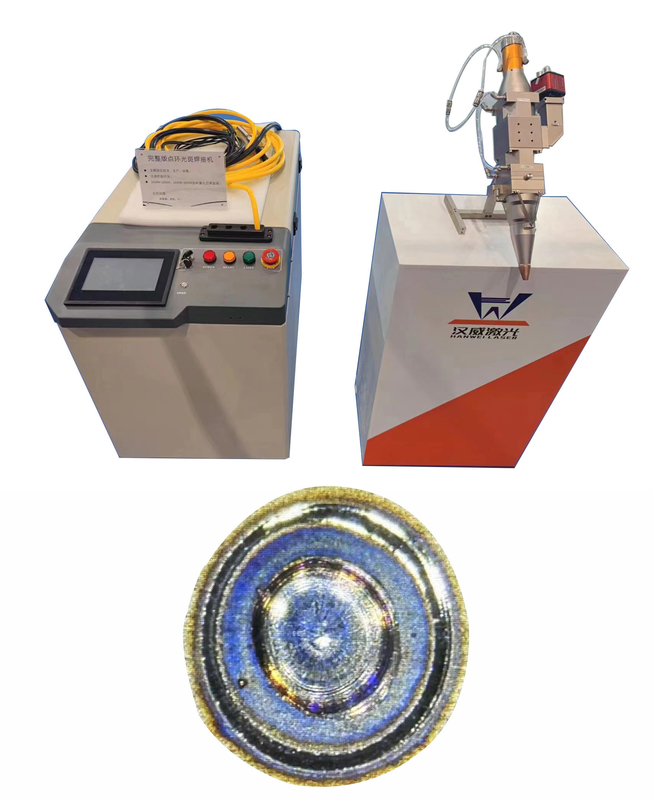

Product Show
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world.
Hanwei Laser Equipment Co.,Ltd is a leading corporation of laser welding systems for a variety of industries, is the worldwide innovation leader in the development of components and system solutions in the field of laser welding technology, including automobile battery, new energy resources, energy storages, aerospace, jewelry, metal processing, medical, plastic, and more.
Hanwei laser Founded in 2016, the company has over two decades of experience in the industry and utilizes the latest technology to provide innovative, reliable, and high-quality laser solutions.
Great changes are driven by technology. And technologies change the world.
The company offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.
Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.
The company has a reputation for excellent customer service, quality products, and innovative solutions, which have made it a trusted name in the laser welding industry.
