HW Platform Galvanometer Welding Head with Diverse Wobble and Laser Emission Modes

Basic Properties
Place of Origin: Shenzhen, China
Brand Name: HanWei
Certification: CE
Model Number: HW-Y-8/25/80/160/300/500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Deep Penetration Wobble Laser Welding Head

300mm Wobble Laser Welding Head

Wobble Laser Welding Head 1000w
Specifications
Model: HW-Y-8/25/80/160/300/500 Weight: 100/170/180/220/240 Kg
Wavelength: 1064nm Power Stability: ± 2.5 / ± 3.0
Pulse width: 15 Ms Frequency: 30/100 Hz
Input Electric: AC220 50/60 Hz / AC380 50/60 Hz Working Mode: Pulse
Dimension: 955*415*870 Mm/ 1175mm×515mm×980mm/ 1360mm×630mm×1120mm Cooling mode: Air / Water
Pulse Energy: 5J /25J /50J / 70/100J Equipmen: 1/1.2/3/6/12/16 Kw
Output Power: 8/25/80/160/300/500W
High Light:

galvanometer welding head with wobble

,

laser welding head emission modes

,

wobble laser welding head galvanometer
Product Description

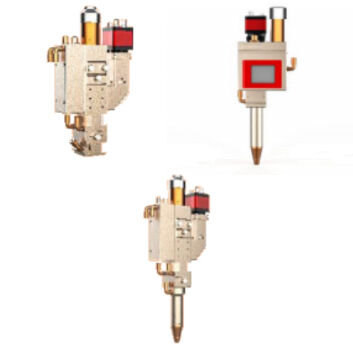

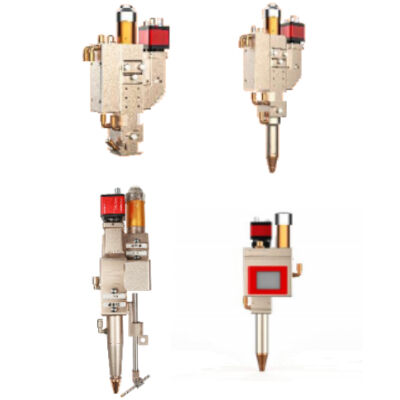

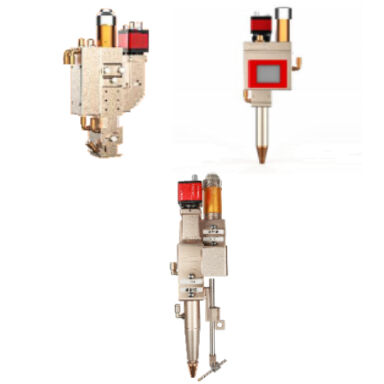

HW Platform Galvanometer Welding Head with Diverse Wobble and Laser Emission Modes
The galvanometer scanning welding head of the platform adopts a compact design, featuring small overall size and light weight, which makes it easy to integrate into various laser welding equipment. Lightweight design not only reduces the load on robotic arms or platforms, but also improves welding flexibility and precision, providing a reliable guarantee for automated production.
Key Features

  • Compact and Lightweight Design.

  • Diverse Oscillation and Laser Emission Modes.

  • Versatile Scenario Adaptability.

  • User-Friendly Lens Maintenance Design.

  • Laser Control System with a Decade of Iteration.

Technical Specifications
Model HW-PT-36 HW-PT-50
Usable Power 3000 W maximum 6000 W maximum
Collimating length 100 100
Focus length 200 / 250 / 300 / 350 200 / 250 / 300 / 350
Interface type QBH QBH
Accessible wave range 1064 nm 1064nm
Head Type Customized Customized
Net weight 2.3 kg 3.5 kg
Beam size adjustable 0.5 – 5mm 0.5 – 5mm
Laser beam mode ―,○,◎,⊙,△,8 ―,○,◎,⊙,△,8
Usable laser source Most of laser source Most of laser source
Applications
The platform galvanometer scanning welding head is suitable for a wide range of industries such as electronics, automotive and medical devices. Benefiting from its unique optical design and optimized structure, it significantly reduces the weight of the welding head while ensuring optical path stability and welding quality, thus meeting the demands of complex workpiece processing and high-intensity welding tasks.
About Shenzhen Hanwei Laser
This welding head comes with 19 built-in oscillation modes and 4 laser emission modes, and the spot size can be precisely adjusted via the system. The rich oscillation modes meet the requirements of different welding trajectories, while the laser emission modes and spot adjustment function further improve weld quality, enabling high-precision and high-efficiency laser welding.
Hanwei Laser adheres to the philosophy of "taking R&D as the core impetus, technology as the solid cornerstone, and service as the backbone support", offering tailored professional solutions to B2B clients ranging from laser equipment manufacturers to automation enterprises. Its service commitments center on reliable product quality, ongoing technological advancement, sustained innovation capacity, and comprehensive after-sales service. Endowed with in-depth expertise in laser technology, laser system integration, power supply configuration, control system development, optical structure design, and welding process optimization, Hanwei Laser’s technical team leverages solid theoretical foundations and rich hands-on experience to provide high-efficiency, high-performance solutions customized for various industrial scenarios.

The company’s product lineup features an in-house optical system framework, combined with a scientifically optimized optical path layout and high energy transfer efficiency. Core optical components are made of high-grade imported quartz optical lenses and integrated with advanced overseas coating technologies, reaching industry-leading levels in terms of reflectivity, light transmittance, and heat resistance. This elaborate design not only ensures the stability of laser energy delivery, but also effectively extends the system’s service life while improving the consistency of processing outcomes. Hanwei Laser’s product range finds extensive applications across a wide array of sectors, including new energy batteries, automotive manufacturing, auto parts, electronic circuits, optical fiber communication devices, mobile electronics, home appliances, kitchen and bathroom hardware, precision instruments, measuring tools, jewelry processing, medical equipment, solar energy, eyewear production, and motor manufacturing industries.
Product Portfolio
  • Ring-Spot laser welding equipment
  • Blue laser welding systems
  • Blue laser + fiber hybrid welders
  • Diode + fiber hybrid welders
  • YAG laser welders
  • YAG + Diode hybrid welders
  • Diode laser welders
  • Mold repair laser welders
  • QCW laser weldersHW Platform Galvanometer Welding Head with Diverse Wobble and Laser Emission Modes 0 HW Platform Galvanometer Welding Head with Diverse Wobble and Laser Emission Modes 1 HW Platform Galvanometer Welding Head with Diverse Wobble and Laser Emission Modes 2 HW Platform Galvanometer Welding Head with Diverse Wobble and Laser Emission Modes 3
