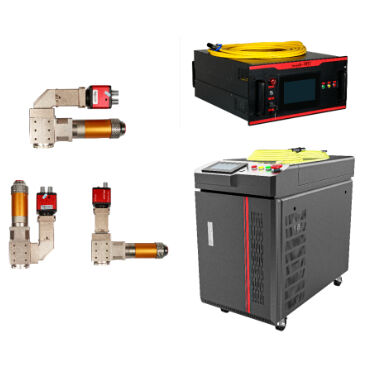

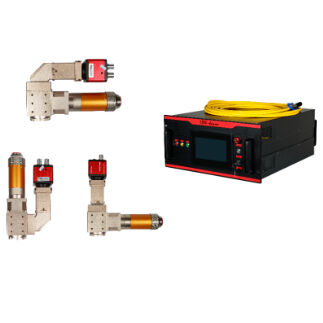

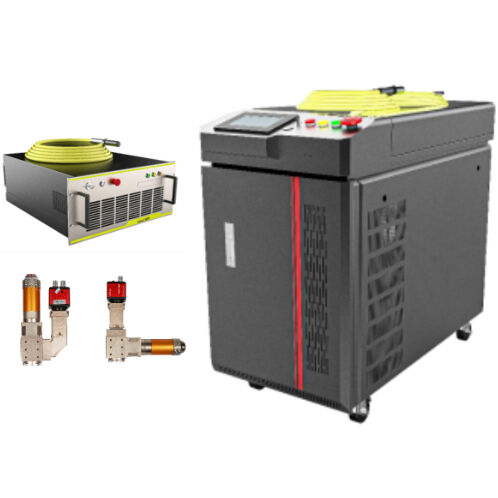

QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization

QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization

Brand Name:	HanWei
Model Number:	HW-QCW
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

Laser Power:

150W/300W

Power Consumption:

2 Kw/2.5 Kw

Machine Size:

665*450*300 Mm

Cooling Method:

Air Cooling

Wavelength:

1070nm ± 10%

Pulse Width:

0.5-50

Peak Power:

1500W/3000W

Machine Weight:

22Kg/28Kg

Pulse Energy:

15J/30J

Frequency:

100 Hz/2 KHz

Power Stability:

≤ ± 1%

Input Voltage:

AC220V 50/60Hz

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

QCW laser welder with structural optimization

industrial laser welding machine with low maintenance

QCW laser welder optimized for durability

Product Description

QCW Laser Welder with Significantly Reduced Maintenance via Structural Optimization

Quasi-Continuous Wave (QCW) fiber lasers deliver extremely high instantaneous energy over extended pulse durations, making them highly suitable for metal processing scenarios requiring strict thermal stability and energy concentration. Whether employed for precise metal spot welding or continuous linear welding, their output mode maintains excellent repeatability. When processing various metals, these lasers effectively control molten pool variations, enhancing the predictability of the welding process. They are particularly ideal for applications demanding rigorous welding precision and uniform heat distribution.

Key Features

QCW fiber laser technology suitable for long pulse width and high-energy pulse output
Welding solution approaches for upgrading traditional YAG equipment
Significant reduction in maintenance requirements through optimized construction
Fully independently developed optical control system and output coordination platform

Technical Specifications

Model	HW-Q-150	HW-Q-300
Input Voltage	AC220V 50/60Hz	AC220V 50/60Hz
Machine Size	665450300 mm	665450300 mm
Wavelength	1070nm ± 10%	1070nm ± 10%
Frequency	100 Hz	2 KHz
Machine Weight	22 Kg	28 Kg
Laser Power	150 W	300 W
Peak Power	1500 W	3000 W
Pulse Width	0.5-50	0.5-50
Pulse Energy	15 J	30 J
Power Stability	≤ ± 1%	≤ ± 1%
Power Consumption	2 Kw	2.5 Kw
Cooling Method	Air Cooling	Air Cooling

Applications

The entire system, from the multi-beam distribution module and energy management structure to the output timing coordination system, is built on independently developed technology. This platform can flexibly adjust multiple outputs according to production line requirements, ensuring energy consistency and synchronized response speed for each beam. The self-developed system architecture not only enhances overall reliability but also provides greater compatibility when integrating with automated platforms and implementing complex process schemes. On this basis, users can expand to different applications and achieve higher-level processing configurations.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser ranks among the globe’s scarce enterprises endowed with independent R&D capabilities for the full hardware and software ecosystem of high-speed laser beam splitting systems, energy splitting systems, and time splitting systems. Its product portfolio mainly encompasses diverse laser welding solutions as well as supporting laser welding control systems.

Since 2019, Shenzhen Hanwei Laser has been dedicated to the independent R&D and innovation of laser welding machines, leveraging core advantages derived from in-house R&D, design, and manufacturing capabilities.
