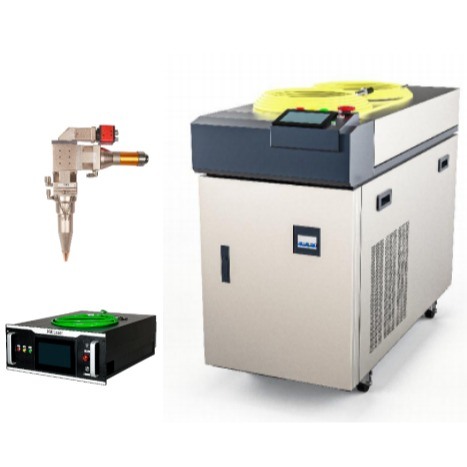

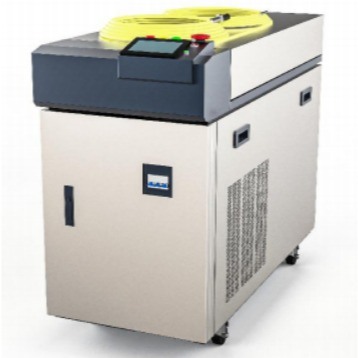

YAG Energy Negative Feedback Laser Welder with PID Adaptive Power Feedback System

Basic Properties
Place of Origin: Shenzhen, China
Brand Name: HanWei
Certification: CE
Model Number: HW-Y-8/25/80/160/300/500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Aluminium Laser Welding Machine 3000W

Fiber Laser automatic laser welding machine

Aluminium Laser Welding Machine Automatic
Specifications
Model: HW-Y-8/25/80/160/300/500 Wavelength: 1064nm
Output Power: 8/25/80/160/300/500W Power Stability: ± 2.5 / ± 3.0
Pulse Energy: 5J /25J /50J / 70/100J Pulse width: 15 Ms
Frequency: 30/100 Hz Weight: 100/170/180/220/240 Kg
Input Electric: AC220 50/60 Hz / AC380 50/60 Hz Working Mode: Pulse
Dimension: 955*415*870 Mm/ 1175mm×515mm×980mm/ 1360mm×630mm×1120mm Cooling mode: Air / Water
Equipmen: 1/1.2/3/6/12/16 Kw
High Light:

YAG laser welder with PID feedback

,

aluminum laser welding machine

,

adaptive power feedback laser welder
Product Description
YAG Energy Negative Feedback Laser Welder with PID Adaptive Power Feedback System
This cutting-edge laser welding system features fiber-optic conductive output, enabling both single and multi-optical path configurations with versatile workbench compatibility. The advanced optical system incorporates imported quartz optical lenses with state-of-the-art coating technology for exceptional damage resistance and stable light transmission. Includes proprietary PID adaptive power feedback system as standard.
YAG Energy Negative Feedback Laser Welder with PID Adaptive Power Feedback System 0
Key Features
  • Fiber optic transmission enables energy and time splitting capabilities
  • Integrated PID adaptive power feedback technology ensures consistent welding results
  • Proprietary optical design with imported optical lenses provides high damage resistance and stable light speed
Technical Specifications
Model HW-Y-8 HW-Y-25 HW-Y-80 HW-Y-160 HW-Y-300 HW-Y-500
Input Electric AC220 50/60 Hz AC220 50/60 Hz AC380 50/60 Hz AC380 50/60 Hz AC380 50/60 Hz AC380 50/60 Hz
Wavelength 1064nm 1064nm 1064nm 1064nm 1064nm 1064nm
Output Power 8 W 25 W 80 W 160 W 300 W 500 W
Pulse Energy 5 J 25 J 50 J 50 J 70/100 J 70/100 J
Pulse width 15 ms 15 ms 15 ms 15 ms 15 ms 15 ms
Frequency 30 Hz 30 Hz 100 Hz 100 Hz 100 Hz 100 Hz
Power Stability ± 2.5 ± 2.5 ± 3.0 ± 3.0 ± 3.0 ± 3.0
Working Mode Pulse Pulse Pulse Pulse Pulse Pulse
Cooling mode Air Air Water Water Water Water
Weight 100 Kg 100 Kg 170 Kg 180 Kg 220 Kg 240 Kg
Equipment 1 Kw 1.2 Kw 3 Kw 6 Kw 12 Kw 16 Kw
Dimension 955*415*870 mm 1175mm*515mm*980mm 1360mm*630mm*1120mm
Applications
Optical communication components, USB interfaces, mobile device peripherals, 18650 battery caps, battery tabs, electrical connectors, hardware components, kitchen and bathroom fixtures, jewelry crafting, elevator panels, household appliances, motor components, corrugated hoses, battery production, solar energy applications, optical communication enclosures, and aerospace components.
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As one of the few companies globally certified as both a national high-tech enterprise and a "specialized, sophisticated, distinctive, and novel" enterprise, we focus exclusively on full-industry-chain R&D, production, and sales of welding-dedicated lasers, control systems, optical systems, and related technologies.
Product Portfolio
  • Ring-Spot laser welding equipment
  • Blue laser welding systems
  • Blue laser + fiber hybrid welders
  • Diode + fiber hybrid welders
  • YAG + Diode hybrid welders
  • YAG laser welders
  • Diode laser welders
  • Mold repair laser welders
  • QCW laser welders
We also provide compatible laser welding control systems, optical systems, and peripheral support products.
Company Philosophy
Guided by the principle of "R&D as the core, technology as the guarantee, and service as the support," Hanwei Laser serves B2B customers including laser equipment firms and automation companies. Our service objectives emphasize reliable quality, continuous improvement, persistent innovation, and thoughtful support.
Technical Expertise
Our team of technical experts possesses deep expertise in lasers, laser systems, power supplies, control systems, optical design, and welding process research. This extensive theoretical knowledge and practical experience enables us to deliver superior solutions across multiple industries.
Industry Applications
Hanwei Laser products are widely used in new energy batteries, automotive, auto parts, electronic circuits, fiber optic communication devices, mobile phones, home appliances, kitchen and bathroom hardware, precision instruments, measuring tools, jewelry, medical devices, solar energy, eyewear, and motor industries.
YAG Energy Negative Feedback Laser Welder with PID Adaptive Power Feedback System 1 YAG Energy Negative Feedback Laser Welder with PID Adaptive Power Feedback System 2 YAG Energy Negative Feedback Laser Welder with PID Adaptive Power Feedback System 3 YAG Energy Negative Feedback Laser Welder with PID Adaptive Power Feedback System 4
