QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System

Basic Properties
Place of Origin: Shenzhen, China
Brand Name: HanWei
Certification: CE
Model Number: HW-QCW
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Industrial Laser Welding Machine 1500w

Mold Repair 1500w laser welding machine

1500w Fiber Laser Welding Machine
Specifications
Laser Power: 150W/300W Power Consumption: 2 Kw/2.5 Kw
Machine Size: 665*450*300 Mm Cooling Method: Air Cooling
Peak power: 1500W/3000W Machine Weight: 22Kg/28Kg
Pulse Energy: 15J/30J Frequency: 100 Hz/2 KHz
Wavelength: 1070nm ± 10% Power Stability: ≤ ± 1%
Pulse Width: 0.5-50 Input Voltage: AC220V 50/60Hz
High Light:

QCW laser welder with optical distribution

,

industrial laser welding machine with timing control

,

QCW laser welder with independent system
Product Description
QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System
Quasi-Continuous Wave (QCW) fiber lasers are widely used in metal manufacturing fields requiring strict thermal input control, thanks to their ability to deliver high peak energy over extended pulse durations. Whether for spot welding on metal surfaces, regular weld seam joining, or welding of small-to-medium-sized structures demanding stable energy density, this type of laser source maintains reliable beam performance.

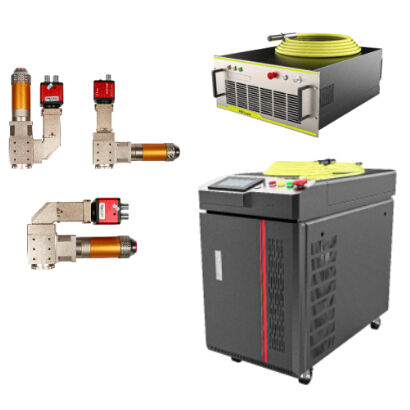

QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System 0
Key Features
  • Key Features of QCW Fiber Laser Sources with Long Pulse Duration and High Energy Output
  • Specialized Design Solution for YAG Process Replacement Requirements
  • Structural Advantages in Reducing Daily Operation Burden and Maintenance Costs
  • Independently Developed Optical Distribution and Timing Control System
Technical Specifications
Model HW-Q-150 HW-Q-300
Input Voltage AC220V 50/60Hz AC220V 50/60Hz
Machine Size 665*450*300 mm 665*450*300 mm
Wavelength 1070nm ± 10% 1070nm ± 10%
Frequency 100 Hz 2 KHz
Machine Weight 22 Kg 28 Kg
Laser Power 150 W 300 W
Peak Power 1500 W 3000 W
Pulse Width 0.5-50 0.5-50
Pulse Energy 15 J 30 J
Power Stability ≤ ± 1% ≤ ± 1%
Power Consumption 2 Kw 2.5 Kw
Cooling Method Air Cooling Air Cooling
Applications
To address the shortcomings of traditional YAG lasers in energy consumption, beam quality, and long-term stability, this QCW laser welding machine has been specifically designed with process reengineering for common YAG welding scenarios. Featuring more uniform energy output and adjustable modes, the equipment is capable of handling typical YAG applications such as metal assembly welding, component joining, and precision structure welding.
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser stands as one of the world's rare enterprises boasting independent R&D capabilities for the complete hardware and software suite of high-speed laser beam splitting systems, energy splitting systems, and time splitting systems. Its product range primarily covers various laser welding solutions and complementary laser welding control systems.

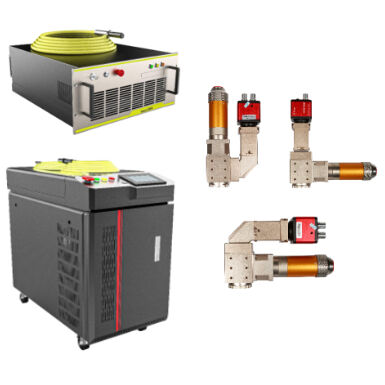

QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System 1 QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System 2 QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System 3 QCW Laser Welder with Independently Developed Optical Distribution & Timing Control System 4
