High-absorption Blue Laser Hybrid Welding Machine Delivers Excellent Weld Quality

Name: High-absorption Blue Laser Hybrid Welding Machine Delivers Excellent Weld Quality
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-B
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-B
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

Laser Power:

1000W

Cooling Method:

Water Cooling

Gas Type:

Co-axial / Side Gas

Core Diameter:

200 μm / 0.22 NA

Welding Materials:

Copper / Gold / Silver

Wavelength (nm):

445nm

Operating Temperature (℃):

5-40

Head Structure:

T / F/ Y

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Product Description

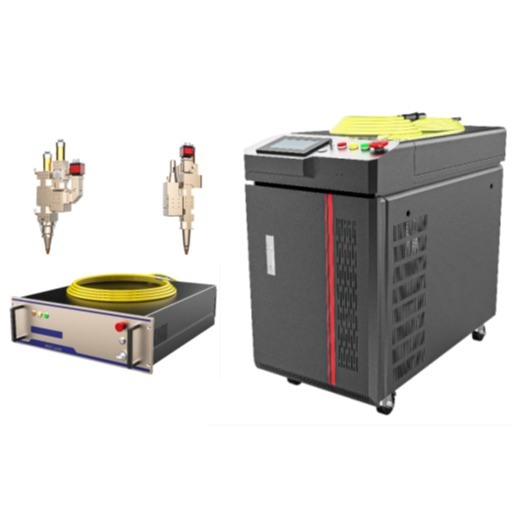

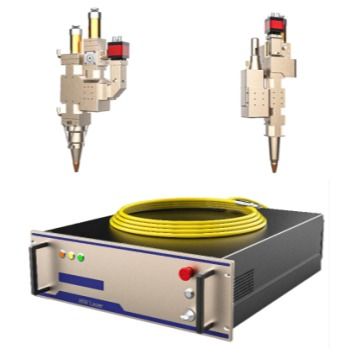

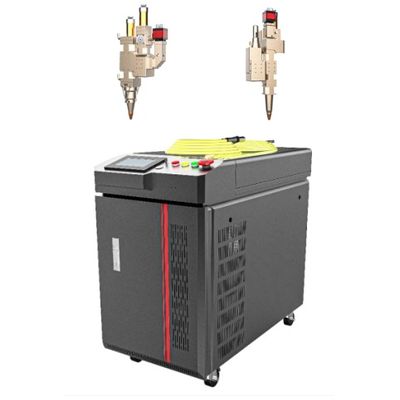

High-absorption Blue Laser Hybrid Welding Machine Delivers Excellent Weld Quality

Hanwei blue laser welding machine, composite welding machines have significant advantages in welding highly reflective metal materials such as copper, gold, and silver. Traditional infrared lasers often result in high energy loss, unstable welding, and numerous seam defects when processing these materials due to their low absorption rates. In contrast, blue light laser wavelengths are more easily absorbed by copper metals, allowing energy to be transmitted more efficiently into the material, thereby achieving a more stable welding process. This makes them widely used in industries such as consumer electronics, new energy vehicles, power batteries, and motor connection components, significantly improving welding quality and production consistency.

Key Features

Self-developed, designed and manufactured the complete chain from laser source, control system and laser welding head.
Composite and swing technologies create a wider process window.
A lower absorption threshold provides more controllable processing capability.
The welding process is cleaner with no spatter.

Unlike the common spattering and molten droplets in traditional laser welding processes, the blue light composite welding machine can maintain a more stable molten pool during welding, reducing the severity of thermal shock and metal evaporation. As a result, welding produces almost no spatter, the weld edges are aesthetically neat, which minimizes subsequent cleaning and grinding steps, significantly lowering processing costs and improving production efficiency.

Technical Parameters

Model	HW-B
Laser Power	1000 W
Wavelength(um)	445 nm
Head Option	Blue Laser Hybrid
Laser Core	50um / 100um
Head Weigh	4 Kg
Focuses	Option
Laser Beam	Stationary / Wobble
Cooling Method	Water Cooling
Machine Size	1000450850mm
Power Range	10-100
Power Instability (%)	＜ 3
Core Diameter	200 μm / 0.22 NA

Applications

Blue laser light has a very high absorption rate for materials such as copper, allowing energy to penetrate the material more effectively, resulting in a deeper and more uniform melt depth.

Welding Samples

Shenzhen Hanwei Laser Enterprise

Shenzhen Hanwei Laser Equipment Co., Ltd. offers an extensive selection of laser equipment, including both desktop and portable models. These systems utilize sophisticated fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser technologies, all meticulously designed to cater to customers' unique needs.

The company delivers tailored solutions for specific applications as well as training and support services, guaranteeing that clients can fully utilize the potential of their laser systems. Boasting branches and subsidiaries across Europe, North America, Asia, and the Middle East, Hanwei Laser has built a strong international footprint, serving clients worldwide.

Hanwei Laser's main focus lies in the field of laser welding. The company is dedicated to providing state-of-the-art laser welding technology to international laser integration enterprises, aiming to supply high-caliber welding technology to all integrators. As one of the relatively few national high-tech specialized and innovative enterprises globally, it specializes in the research and development, manufacturing, and distribution of a wide variety of welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
