Wobble Laser Welding Head
Created with Pixso.

Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum

name

Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum

Brand Name: HanWei
Model Number: HW-DFH-70100200-QBH
MOQ: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Model:
HW-DFH-70100200-QBH
Accessible Wave Range:
915nm + 1064nm
Head Type:
Y
Net Weight:
2.5 Kg
Collimating Length:
Diode 70 – Fiber 100/120/150
Focuses Length:
150/200
Interface Type:
QBH - QBH
Usable Laser Source:
Diode And Fiber Laser Source
Laser Beam Size Adjustable:
0.5 – 5mm
Laser Beam Type:
―、○、◎、⊙、△、8
Packaging Details:
Export Plywood Packing
Supply Ability:
2000 Sets / year
Highlight:

diode-fiber hybrid laser welding head

,

wobble laser welding head for aluminum

,

double motor laser welding head

Product Description
Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum
Hanwei Diode laser (915nm) and fiber laser (1064nm) Hybrid-laser welding achieves coaxial recombination of diode and fiber laser sources. Designed for thick and highly reflective metal welding (gold, silver, copper, aluminum), this system increases absorptivity while reducing sparks, resulting in superior weld quality and surface finish.
Ideal for power battery cover seal welding, this solution prevents battery leakage and explosion risks while significantly improving welding efficiency.

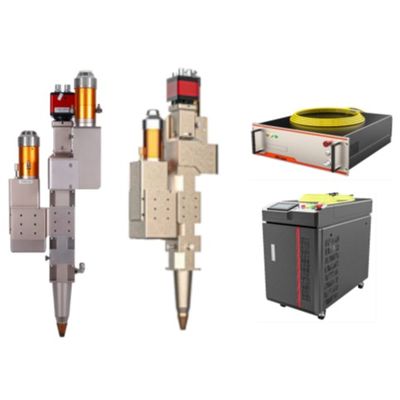

Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum 0
Key Features
  • Reduces welding defects and improves welding efficiency
  • Covers all laser wavebands
  • Excellent performance for welding thin, thick, wide and narrow weld joints in highly reflective materials (aluminum)
  • Specialized design for power battery cover welding applications
Technical Specifications
Model HW-DFH-70100200-QBH
Accessible Wave Range 915nm + 1064nm
Usable Laser Source Diode and Fiber laser source
Focus Length 150/200
Collimating Length Diode 70 – Fiber 100/120/150
Interface Type QBH - QBH
Laser Beam Size Adjustable 0.5 – 5mm
Laser Beam Type ―,○,◎,⊙,△,8
Net Weight 2.5 kg
Application Advantages
  • Superior performance for welding highly reflective materials (aluminum) across various thicknesses and joint configurations
  • Optimized design specifically for power battery cover welding applications

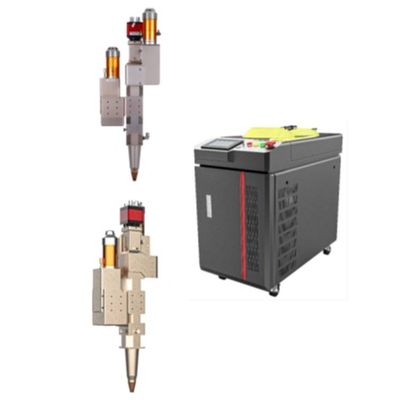

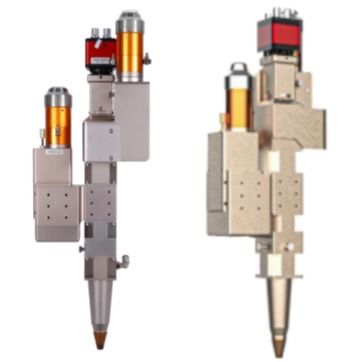

Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum 1 Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum 2 Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum 3 Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum 4
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to every system integrator. As a certified national high-tech enterprise and recipient of the "specialized, sophisticated, distinctive, and novel" recognition, we focus on comprehensive R&D, production, and sales of specialized laser welding technologies.
Our Product Portfolio Includes:
  • Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
  • YAG and Diode laser welding equipment
  • Mold repair laser welding equipment
  • QCW laser welding equipment
  • Ring-Spot laser welding equipment
  • Blue laser welding equipment
With a team of laser welding R&D experts, we serve industries including new energy batteries, automotive, electronics, and medical devices, delivering unmatched welding performance across diverse applications.
