products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Laser Welding Head
Created with Pixso.

Diode-Fiber Hybrid Laser Welding Head with Full Band Coverage for Power Battery Top Cover

name

Diode-Fiber Hybrid Laser Welding Head with Full Band Coverage for Power Battery Top Cover

Brand Name: HanWei
Model Number: HW-BFH-XXXXXX
MOQ: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Model:
HW-BFH-XXXXXX
Accessible Wave Range:
915nm + 1064nm
Head Type:
Y
Net Weight:
2.5 Kg
Focuses Length:
200
Interface Type:
QBH - QBH
Usable Laser Source:
Diode And Fiber Laser Source
Collimating Length:
Diode 110 – Fiber 100/120/150
Laser Power:
Diode Laser ≤ 30000 W & Fiber Laser ≤ 4000 W
Packaging Details:
Export Plywood Packing
Supply Ability:
2000 Sets / year
Highlight:

fiber laser welding head for power battery

,

diode-fiber hybrid laser welding head

,

full band coverage laser welding head

Product Description
Diode-Fiber Hybrid Laser Welding Head with Full Band Coverage for Power Battery Top Cover
The Hanwei Diode-Fiber Hybrid Laser Welding Head combines diode laser (915 nm) and fiber laser (1064 nm) technologies into a coaxial configuration. This cutting-edge design excels at joining thick metals and highly reflective materials such as gold, silver, copper, and aluminum, offering enhanced absorption that reduces spatter while yielding high-quality welds with outstanding surface smoothness.
Engineered specifically for the seal welding of power battery covers, the system produces clean, flawless seams. It effectively removes the hazards of battery leakage and explosion while substantially increasing welding productivity.

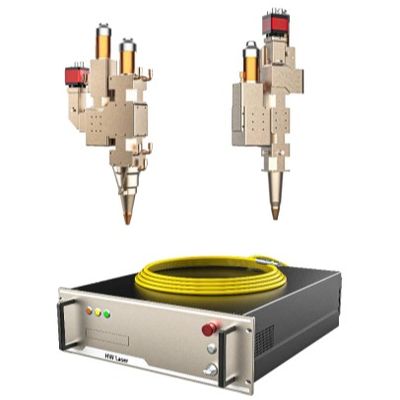

Diode-Fiber Hybrid Laser Welding Head with Full Band Coverage for Power Battery Top Cover 0
Key Features
  • Eliminates spatter and liquid leakage issues
  • Significantly reduces weld defects and imperfections
  • Produces aesthetically pleasing, smooth welds for power battery top covers
  • Enhances overall welding efficiency and productivity
  • Superior performance for medium-thin plates, aluminum, and high-reflective materials
Technical Specifications
Model HW-BFH-XXXXXX
Laser Power Diode laser ≤ 30000 W
Fiber laser ≤ 4000 W
Accessible Wave Range 915nm + 1064nm
Usable Laser Source Diode and Fiber laser source
Focus Length 200
Collimating Length Diode 110 - Fiber 100/120/150
Net Weight 2.5 Kg
Head Type Y
Interface Type QBH - QBH
Application Advantages
  • Ideal solution for power battery top cover welding
  • Reduction of welding defects with improved efficiency
  • Full wavelength range coverage for versatile applications

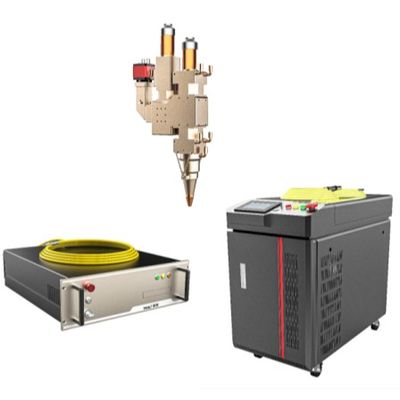

Diode-Fiber Hybrid Laser Welding Head with Full Band Coverage for Power Battery Top Cover 1
Diode-Fiber Hybrid Laser Welding Head with Full Band Coverage for Power Battery Top Cover 2
Diode-Fiber Hybrid Laser Welding Head with Full Band Coverage for Power Battery Top Cover 3
Diode-Fiber Hybrid Laser Welding Head with Full Band Coverage for Power Battery Top Cover 4
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to every system integrator. As a certified national high-tech enterprise and recipient of the "specialized, sophisticated, distinctive, and novel" recognition, we focus on comprehensive R&D, production, and sales of specialized laser welding technologies.
Our Product Portfolio Includes:
  • Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
  • YAG and Diode laser welding equipment
  • Mold repair laser welding equipment
  • QCW laser welding equipment
  • Ring-Spot laser welding equipment
  • Blue laser welding equipment
With a team of laser welding R&D experts, we serve industries including new energy batteries, automotive, electronics, and medical devices, delivering unmatched welding performance across diverse applications.
