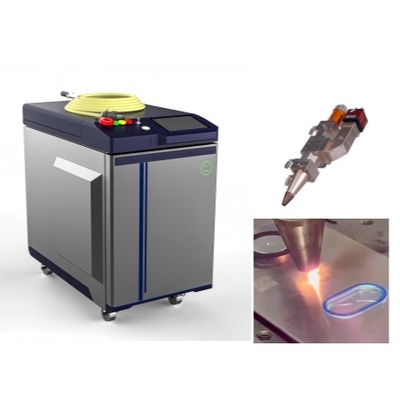

HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery

name

HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery

Brand Name: HanWei
Model Number: HW-DH-ECO-MP
MOQ: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Laser Power:
Up To 6000W
Laser Beam:
Ring And Spot
Electrical Input Voltage:
380v 50Hz / 60Hz
Laser Core:
50 Um/ 60um
Laser Power Stability:
≤ 3%
Power Consumption:
≤ 30 KW
Welding Materials:
Aluminium / Copper / Stainless Steel / Brass / Gold / Silver
Laser Power Adjustable:
10~100%
Cooling Method:
Water Cooling
Laser Output Frequency:
≤ 20 Khz
Packaging Details:
Export Plywood Packing
Supply Ability:
2000 Sets / year
Highlight:

ECO ring and spot laser welder

,

battery welding laser machine

,

aluminium RS series welder

Product Description
HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery
The HW-AMB-ECO laser welding solution represents advanced laser welding technology, utilizing simultaneous outer annular and inner spot laser beams for uniform thermal distribution and enhanced welding quality. This dual-beam design prevents common issues like deformation, porosity, and cracking by optimizing heat distribution through multi-point heating.
Key Advantages
  • Eliminates spatter through weld pool stabilization
  • High-speed welding with superior efficiency
  • Increased productivity with minimal rework
  • Reduced operating costs with less post-processing
  • Exceptional weld quality with no pores or cracks
HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 0
Product Features
  • Less spatter with stabilized weld pool
  • Fast welding with high efficiency
  • Increased throughput and productivity
  • Lower operating costs with reduced downtime
  • Maximum application flexibility
  • Easy operation and maintenance
  • High-quality weld seams with no defects
  • English language interface standard
  • Adjustable laser beam size (0-5mm)
  • Touch screen digital parameter setting
  • Durable lens with easy-replace mirror holder
  • High-performance laser welding head
  • Simple internal structure with high sealing
  • Compatible with automation solutions
  • Competitive pricing
HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 1 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 2 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 3
Technical Specifications
Parameter Specification
Laser Source HW-DH-Middle Power / HW-DH-High Power
Laser Power 4000 W / 6000 W
Model HW-DH-ECO-MP
Laser Beam Ring and Spot
Laser Core 50μm / 100μm
Laser Power Stability ≤ 3%
Cooling Method Water Cooling
Controller System HW-AMB
Laser Head HW-AMB-36
Power Adjustment 10%-100%
Working Mode CW / QCW / PWM
Machine Size 875*531*849mm
Machine Weight 150 Kg / 200 Kg
Power Consumption ≤ 20Kw / ≤ 30Kw
Applications
The HW-AMB-ECO laser welding technology delivers efficient, precise results across diverse industries:
  • Battery modules and lithium batteries for electric vehicles
  • Automotive welding and processing
  • Aluminum, copper, brass, gold, and silver welding
  • Consumer electronics manufacturing
  • Shipbuilding and jewelry industries
  • Special materials with high laser reflectivity
HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 4 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 5 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 6 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 7 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 8 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 9 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 10 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 11
Welding Samples
Material Sample
Copper HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 12
Aluminum HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 13 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 14 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 15
Steel HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 16
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser Equipment Co., Ltd. offers comprehensive laser equipment solutions using advanced fiber, pulsed, continuous-wave, blue, diode, and hybrid laser technologies. With global branches and subsidiaries, we provide customized solutions, training, and support to maximize laser system capabilities.
Specializing in laser welding technology, Hanwei Laser is a national high-tech enterprise focused on R&D, production, and distribution of welding lasers, control systems, optical systems, and processes throughout the industrial chain.
HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 17 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 18 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 19 HW RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Battery 20
