High-Precision Handheld Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum

Name: High-Precision Handheld Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-DZJS-2000
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-DZJS-2000
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Laser Power:

2000W

Welding Beam Size:

0-5mm Adjustable ( 0-10mm Option )

Welding Materials:

Steel / Stainless Steel / Aluminium

Electrical Input Voltage:

220v 50Hz / 60Hz

Laser Output Mode:

4 Mode ( CW, PWM, QCW, Argon )

Collimation Focal Length:

60mm

Focusing Focal Length:

150mm

Feeding Wires:

0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )

Welding Thickness:

4mm Stainless Steel Full Penetration

Welding Parameter Save:

30 Kinds Of Different Welding Parameter Save

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Product Description

High-Precision Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum

High-Precision Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum Description:

The Compact Single Motor Welding Head stands as a state-of-the-art and innovative welding instrument. Crafted with a user-focused philosophy, it skillfully tackles intricate welding demands by harmonizing welding process efficiency with user-friendly ergonomics for extended operation. This empowers welders to carry out projects with greater efficiency and precision.

Boasting a lightweight, streamlined, and ergonomic design, the welding head guarantees a comfortable and stable grip. It can be smoothly integrated into various welding tasks across different work environments—from large-scale industrial manufacturing settings to outdoor on-site repair scenarios—consistently producing outstanding outcomes.

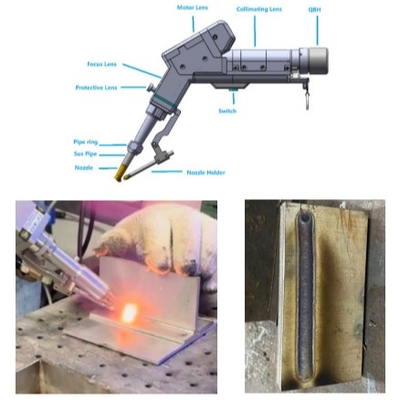

High-Precision Handheld Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum 0

High-Precision Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum Features:

Handheld Laser Welding Machine
Laser Beam Size: 0~5mm Adjustable
Fiber Cable: 10m Standard (15 / 20m Option)
Gas: Argon / Nitrogen
Product Name: Fiber Laser Welding Head
Positioning: Red Guide Beam
Fiber Connector: QBH
Handheld Laser Gun Weight: 0.7kg

The fiber laser welding head is a premium-grade fiber laser apparatus featuring an integrated QBH fiber coupler. Its laser beam diameter is adjustable across a 0–5mm range, and it comes equipped with a red aiming beam to ensure precise positioning. With an overall weight of just 0.7kg, this fiber laser welding head is remarkably lightweight, boasting a design that places a premium on user comfort.

High-Precision Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum Technical Parameters:

Product Name	Handheld Single Motor Laser Welding Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	2000W
Handheld Laser Gun Weight	0.7kg
Welding Beam Form	Line " 一 "
Welding Beam Size	0-5mm Adjustable
Welding Parameter Save	30 kinds of different welding parameter save
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Fiber Connector	QBH
Position Guide	Red Guide Light
Cooling method in Winter	Add Antifreeze

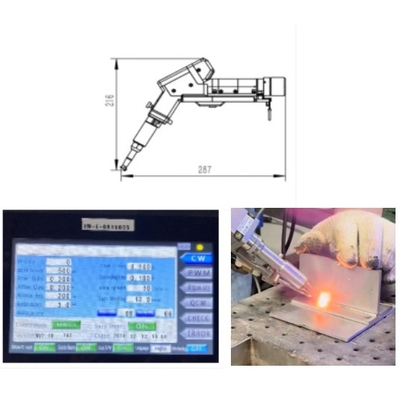

High-Precision Handheld Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum 1

High-Precision Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum Application Advantages:

The HanWei HW-DZJS-2000 portable welding device demonstrates outstanding performance in various scenarios. Its portability offers unmatched convenience for on-site welding tasks, enabling flexible operations in almost any location. The cordless welding feature simplifies workflows, allowing welding projects to be completed quickly. This product has become a mainstay in the construction, manufacturing, and repair industries, serving as an essential tool for professionals seeking reliable, high-performance welding solutions.

For thin metal plates like stainless steel, carbon steel, and aluminum, the handheld single-vibration welding device provides an excellent alternative to traditional argon arc and electric welding methods. The welding torch is lightweight, compact, and ergonomically designed for comfortable handling, equipped with a safety lock and touch-activated indicator light. Its user-friendly design reduces operator fatigue while producing high-quality welds at high speeds. Notably, the process leaves no visible welding marks or color changes, eliminating the need for post-weld polishing. With strong anti-interference capabilities, it is integrated with a proprietary control system to ensure stable and precise performance.

High-Precision Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum Packing:

One Fiber Laser Welding Head
One Controller
Two Protective Lens
Seven kinds of nozzles
One 15v Power Supply
One Wire feeding device
A set of Connection Cables and Line
One User Manual
One Safety Switch Clip
One Touch Screen Monitor

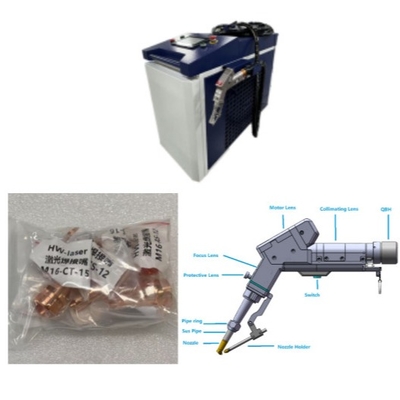

High-Precision Handheld Laser Welding Machine for Stainless Steel / Carbon Steel and Aluminum 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. is a leading provider in the laser equipment domain, offering an extensive array of products. Their portfolio encompasses both desktop and handheld laser systems, integrating advanced technologies like fiber lasers, pulsed or continuous - wave lasers, blue lasers, diode lasers, and hybrid lasers. This diverse technological mix enables the company to precisely meet the unique needs of customers across various industries.

The firm is also dedicated to providing customized solutions for specific applications. Recognizing that different projects require tailored approaches, Hanwei Laser's team of experts works closely with clients to design and develop laser systems that are perfectly suited to their operational requirements. In addition, they offer comprehensive training and support services. These services ensure that customers can fully utilize the capabilities of their laser systems, maximizing productivity and efficiency.

With a strong global footprint, Hanwei Laser has established branches and partnerships in Europe, North America, Asia, and the Middle East. This widespread presence allows them to serve clients worldwide, delivering high - quality laser equipment and services promptly and effectively.

At the heart of Hanwei Laser's business is the laser welding field. The company is committed to presenting top - tier laser welding technology to international laser integration companies. Their goal is to offer all integrators high - quality welding solutions. As one of the few national high - tech specialized and innovative enterprises globally, Hanwei Laser focuses on the entire industrial chain of laser welding. This includes the research and development, production, and sales of various welding lasers, laser control systems, laser optical systems, and laser welding processes. Through continuous innovation and a customer - centric approach, Hanwei Laser is driving the advancement of the laser welding industry.
