3000W Handheld Single Motor Laser Welding Machine for Welding Carbon Steel

Name: 3000W Handheld Single Motor Laser Welding Machine for Welding Carbon Steel
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-BDJGKZ-3000
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-BDJGKZ-3000
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Laser Power:

3000W

Welding Beam Size:

0-5mm Adjustable ( 0-10mm Option )

Electrical Input Voltage:

380v 50Hz / 60Hz

Welding Materials:

Steel / Stainless Steel / Aluminium

Laser Output Mode:

4 Mode ( CW, PWM, QCW, Argon )

Collimation Focal Length:

60mm

Focusing Focal Length:

150mm

Feeding Wires:

0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )

Welding Thickness:

4mm Stainless Steel Full Penetration

Welding Parameter Save:

30 Kinds Of Different Welding Parameter Save

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

Carbon Steel Handheld Laser Welding Machine

3000W Handheld Laser Welding Machine

Single Motor Handheld Laser Welding Machine

Product Description

3000W Handheld Single Motor Laser Welding Machine For Welding Carbon Steel

3000W Handheld Single Motor Laser Welding Machine For Welding Carbon Steel Description:

The Compact Single Motor Welding Head is a state - of - the - art and revolutionary welding tool. Employing a user - centric design philosophy, it skillfully meets complex welding demands by carefully considering both the efficiency of the welding process and the user's comfort during extended use. This results in a more efficient and accurate operational method for welding tasks.

This welding head boasts a lightweight, sleek, and ergonomically engineered structure, guaranteeing a comfortable and secure hold. It can be easily adjusted to various welding projects across diverse working conditions. Be it large - scale factory production or outdoor on - site repair work, it is fully equipped to deliver excellent results.

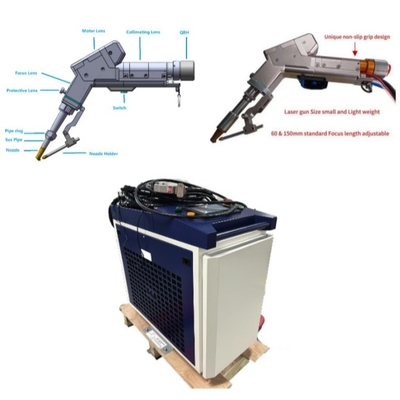

3000W Handheld Single Motor Laser Welding Machine for Welding Carbon Steel 0

3000W Handheld Single Motor Laser Welding Machine For Welding Carbon Steel Features:

Handheld Laser Welding Machine
Product Name: Fiber Laser Welding Head
Fiber Cable: 10m Standard. (15 / 20m Option)
Laser Beam Size: 0~5mm Adjustable
Fiber Connector: QBH
Positioning: Red Guide Beam
Handheld Laser Gun Weight: 0.8kg
Gas: Argon / Nitrogen

The fiber laser welding head represents a high - end fiber laser device featuring a QBH fiber coupler. The diameter of its laser beam can be adjusted within the range of 0 - 5mm. Moreover, it is equipped with a red alignment beam to guarantee accurate positioning.

This fiber optic laser welding nozzle is lightweight, with an overall weight of merely 0.8kg. It has been designed with great regard for the comfort of the end - user.

3000W Handheld Single Motor Laser Welding Machine For Welding Carbon Steel Technical Parameters:

Product Name	Handheld Single Motor Laser Welding Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	3000W
Handheld Laser Gun Weight	0.8kg
Welding Beam Form	Line " 一 "
Welding Beam Size	0-5mm Adjustable
Welding Parameter Save	30 kinds of different welding parameter save
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Fiber Connector	QBH
Position Guide	Red Guide Light
Cooling method in Winter	Add Antifreeze

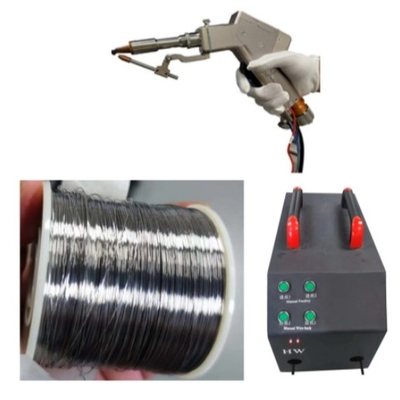

3000W Handheld Single Motor Laser Welding Machine for Welding Carbon Steel 1

3000W Handheld Single Motor Laser Welding Machine For Welding Carbon Steel Application Advantages:

The HanWei HW - BDJGKZ - 3000 portable welding device demonstrates exceptional capabilities in multiple settings. Its mobility offers unmatched convenience for field welding operations, allowing it to be utilized virtually anywhere. The cordless welding functionality simplifies the process, facilitating the swift execution of welding tasks. This product is a vital asset in the construction, manufacturing, and repair sectors, becoming an essential instrument for those seeking a dependable and high - performance welding solution.

When working with thin metal sheets like stainless steel, carbon steel, and aluminum, the handheld single - vibration welding device is an excellent substitute for conventional argon arc and electric welding methods. The welding gun is lightweight, compact, and designed with ergonomics in mind to ensure a comfortable hold. It comes with a safety lock and a tactile indicator light. Its intuitive design demands minimal effort from the operator. The resulting welds are of top - notch quality, the welding process is rapid, and there are no visible weld marks or discoloration, eliminating the necessity for post - weld polishing. It has strong anti - interference characteristics and is equipped with a proprietary control system.

3000W Handheld Single Motor Laser Welding Machine For Welding Carbon Steel Packing:

One Fiber Laser Welding Head
One 15v Power Supply
A set of Connection Cables and Line
Two Protective Lens
One Controller
One User Manual
Seven kinds of nozzles
One Wire feeding device
One Touch Screen Monitor
One Safety Switch Clip

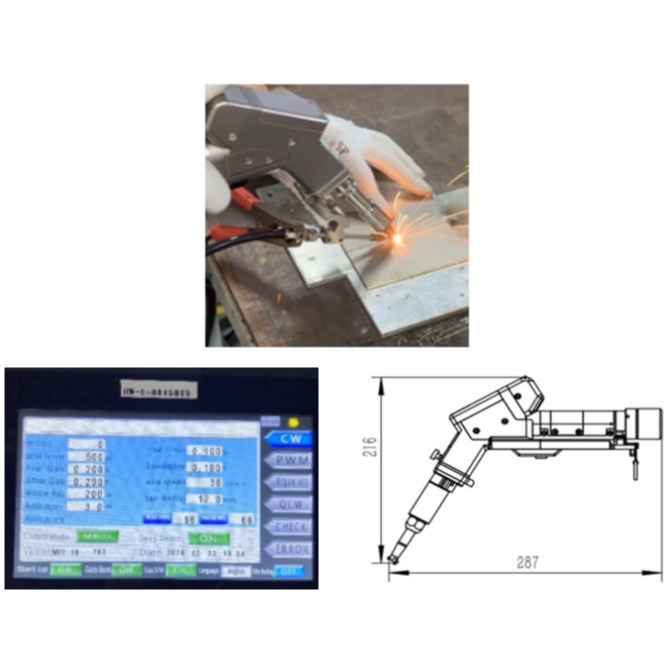

3000W Handheld Single Motor Laser Welding Machine for Welding Carbon Steel 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. presents a comprehensive collection of laser equipment, encompassing both stationary desktop units and portable devices. These systems employ cutting - edge fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies. Each piece is painstakingly crafted to meet the distinct requirements of customers. Additionally, the company offers customized solutions for particular applications, along with training and after - sales support services, guaranteeing that clients can fully harness the capabilities of their laser systems. With branches and affiliates spread across Europe, North America, Asia, and the Middle East, Hanwei Laser has established a robust global presence, serving clients from all corners of the world.

Hanwei Laser's primary emphasis is on the field of laser welding. The company is committed to supplying state - of - the - art laser welding technology to international laser integration companies. Its goal is to offer top - tier welding technology to all integrators. As one of the select few national high - tech "little giant" enterprises globally, it specializes in the research, development, production, and marketing of a broad spectrum of welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
