Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel

Name: Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-20-50500
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-20-50500
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Adopt Laser Source:

1064~1080nm Fiber Laser Source

Cleaning Materials:

Steel / Stainless Steel

Laser Power:

2000W

Cleaning Laser Beam Size:

0-300mm Adjustable

Handheld Laser Gun Weight:

0.7 Kg

Collimation Focal Length:

50mm

Focusing Focal Length:

500mm

Machine Electric Consumption:

8 Kw/h About

Laser Output Mode:

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

Carbon Steel Laser Cleaning Machine

Single Wobble Laser Cleaning Machine

Handheld Laser Cleaning Machine

Product Description

Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel

Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel Description:

The Compact Single-Motor Cleaning System provides an exceptionally effective cleaning solution. At its core, a single motor serves as the power source, driving the internal pump and other components of the cleaning apparatus. This cleaning device excels in cleansing materials such as steel and stainless steel. It extracts water from the reservoir and intensifies its pressure. Through the spray nozzle and other auxiliary parts, a high-pressure water stream is produced to remove grime from the surfaces of diverse objects.

The cleaning sprayer is lightweight and small-sized. Designed based on ergonomic concepts, it guarantees user-friendliness. It can effortlessly adjust to numerous cleaning tasks across various working conditions. Whether in industrial mass-production settings or during outdoor field maintenance activities, it delivers outstanding results.

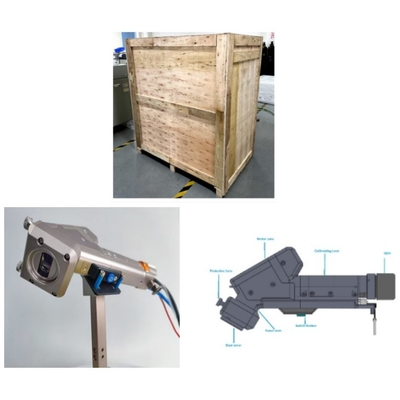

Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel 0

Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel Features:

Product Name: Fiber Laser Cleaning Machine
Laser Power: 2000W
Handheld Laser Gun Weight: 0.7kg
Cleaning Materials: Carbon Steel / Stainless Steel
Standard Focus length: 50 & 500mm standard Focus length adjustable
Positioning: Red Guide Beam
Laser Head Connection: QBH
Cleaning Laser Beam Form: Line “一”
Cleaning Laser Beam Size: 0-300mm Adjustable
Wavelength: 1064nm~1080nm
Machine Electric Consumption: 8 Kw/h about
Gas: Nitrogen / No Gas

The Fiber Laser Cleaning Nozzle, an elite accessory for fiber lasers featuring a QBH fiber connector, showcases outstanding functionality. This fiber laser cleaning implement is both feather-light and highly convenient to operate, with an overall weight of merely 0.7 kg. The diameter of its cleaning beam is adjustable within a range of 0 to 300 mm. Additionally, it is equipped with a red alignment beam to ensure precise positioning.

Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel Technical Parameters:

Product Name	Handheld Single Motor Laser Cleaning Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Handheld Laser Gun Weight	0.7 KG
Laser Power	2000W
Laser Output Mode	CW
Cleaning Beam Size	0-300mm Adjustable
Cleaning Beam Form	Line " 一 "
Fiber Connector	QBH
Fiber Cable	10m Standard. (15 / 20m Option)
Standard Focus Length	50 & 500mm standard Focus length adjustable
Position Guide	Red Guide Light
Cleaning Parameter Save	10 kinds of different welding parameter save

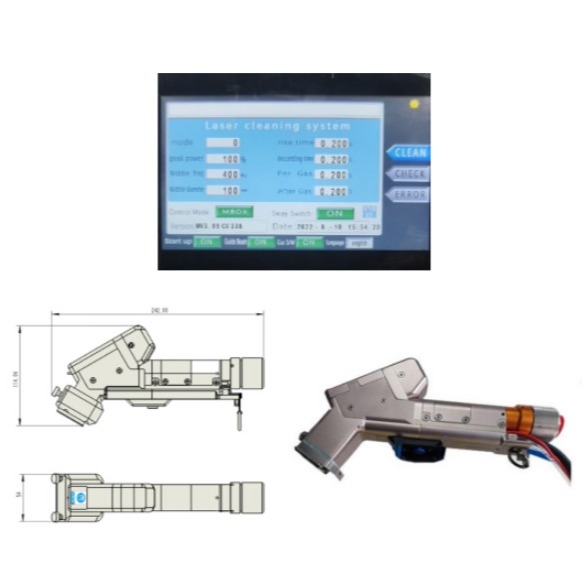

Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel 1

Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel Application Advantages:

The HanWei HW-20-50500 handheld cleaning equipment demonstrates outstanding practical advantages. It boasts exceptional mobility. Due to its slender and lightweight design, it can be easily transported and activated, making it ideal for cleaning in confined spaces and for mobile cleaning tasks. This greatly enhances operational flexibility, as it doesn't depend on elaborate machinery or a large team.

The handheld single-vibration cleaning tip shows remarkable adaptability. It can skillfully handle different surface materials, a broad spectrum of object shapes, and various levels of dirt. Whether for automotive maintenance, domestic cleaning, or industrial equipment repair, its performance remains consistent. Moreover, it is both energy-saving and cost-effective. The single-motor setup conserves energy while providing sufficient cleaning power. It simplifies the cleaning process, reducing both time and energy consumption. Thanks to its straightforward construction, it has lower manufacturing and maintenance costs. It is intuitive to use and doesn't require specialized instruction, allowing all users to operate it effortlessly and minimizing operational errors and training expenses.

Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel Packing:

One Handheld Laser Head
One 15v Power Supply
One Touch Screen Monitor
Two Protective Lens
One Safety Switch Clip
One Controller
A set of Connection Cables and Line
One Dust Cover
One User Manual

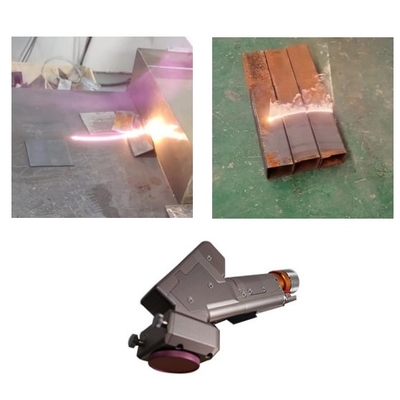

Handheld Single Wobble Laser Cleaning Machine for Cleaning Carbon Steel / Stainless Steel 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. is dedicated to providing top - tier welding technology to integrators across the globe. It ranks among the scarce global entities that can intensively focus on the R&D, manufacturing, and marketing of diverse welding lasers, laser control systems, laser optical components, and laser welding techniques. As a national high - tech and specialized - new enterprise, it possesses a comprehensive industrial chain.

Hanwei Laser has triumphantly devised a series of welding laser products of international advanced caliber. For example, the AMB spot - ring spot welding machine adopts exclusive technical approaches not seen in other global firms. Furthermore, the "AMB spot - ring spot + blue light composite swing welding machine" not only fills a domestic technological gap but also leads the world in this domain. It efficiently overcomes issues such as inconsistent welding quality, rough welding surfaces, and spatter during the laser welding of highly reflective materials like copper and gold. In addition, the "AMB spot - ring spot + semiconductor composite welding machine" resolves problems of uneven fusion depth and inconsistent welding speed in the welding of power battery aluminum materials. Moreover, the "semiconductor + single - lamp single - rod 600W composite laser welding machine" tackles the difficulties of low production yields, subpar welding quality, and slow processing speeds in the sealing nail welding of power batteries.
