Handheld Laser Cleaning Machine With High - Performance QBH Port For Multiple Laser Sources

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-QXJ-1500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

20m Cable Laser Cleaning Head

10m Cable Laser Cleaning Head

Laser Cleaning Head 300mm
Specifications
Laser Power: 1500W Cleaning Laser Beam Size: 0-300mm Adjustable
Handheld Laser Gun Weight: 0.7 Kg Cleaning Materials: Steel / Stainless Steel
Adopt Laser Source: 1064~1080nm Fiber Laser Source Cleaning Laser Beam Form: Line “—”
Collimation Focal Length: 50mm Focusing Focal Length: 500mm
Laser Output Mode: CW Fiber Cable: 10m Standard. (15 / 20m Option)
High Light:

High Performance Laser Cleaning Machine

,

Multiple Laser Sources Laser Cleaning Machine

,

Handheld Laser Cleaning Machine
Product Description

Handheld Laser Cleaning Machine with High-performance QBH Port for Multiple Laser Sources





Handheld Laser Cleaning Machine with High-performance QBH Port for Multiple Laser Sources Description:



The Portable Single Oscillating Cleaning Unit offers a highly practical cleaning alternative. Fundamentally, it utilizes a single motor as the power generator, propelling the internal pump and other elements of the cleaning apparatus. This cleaning tool excels at cleaning substances like steel and stainless steel. It draws water from the water source and intensifies its pressure. By means of the spray gun and other adjuncts, a high - pressure water jet is generated to eliminate the dirt on the surfaces of various objects.

The cleaning gun is light - weighted, compact in size, and engineered based on ergonomic principles for a pleasant operating experience. It can seamlessly adapt to a wide array of cleaning assignments in different working conditions. Whether in industrial large - scale manufacturing scenarios or during outdoor on - site maintenance operations, it achieves excellent outcomes.

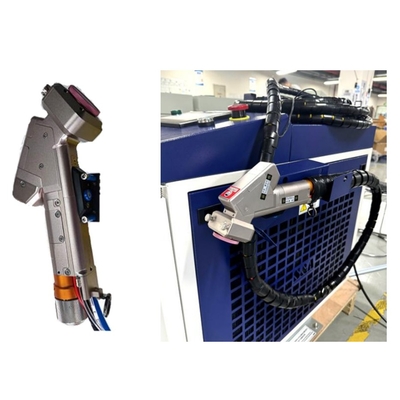

Handheld Laser Cleaning Machine With High - Performance QBH Port For Multiple Laser Sources 0

Handheld Laser Cleaning Machine with High-performance QBH Port for Multiple Laser Sources  Features:

  • Product Name: Fiber Laser Cleaning Machine
  • Laser Power: 1500W
  • Positioning: Red Guide Beam
  • Cleaning Laser Beam Size: 0-300mm Adjustable
  • Wavelength: 1064nm~1080nm
  • Handheld Laser Gun Weight: 0.7kg
  • Cleaning Laser Beam Form: Line “一”
  • Laser Head Connection: QBH
  • Standard Focus length: 50 & 500mm standard Focus length adjustable
  • Cleaning Materials: Steel / Stainless Steel
  • Gas: Nitrogen / No Gas



The Fiber Laser Cleaning Head, a high - power Fiber Laser Gun furnished with a QBH fiber connector, showcases outstanding capabilities. This Optical Fiber Laser Cleaning Equipment is not only lightweight but also extremely easy to use, with an overall weight of just 0.7kg. The size of its cleaning beam can be adjusted from 0 to 300mm, and a red aiming beam is integrated to guarantee accurate positioning.



Handheld Laser Cleaning Machine with High-performance QBH Port for Multiple Laser Sources Technical Parameters:



Product Name

Handheld Single Motor Laser Cleaning Machine

Laser Power

1500W

Handheld Laser Gun Weight

0.7 KG

Adopt Laser Source

1064~1080nm Fiber laser source

Fiber Cable

10m Standard. (15 / 20m Option)

Red Guide Light

50 & 500mm standard Focus length adjustable

Cleaning Beam Form

Line " 一 "

Fiber Connector

QBH

Laser Output Mode

CW

Position Guide

Red Guide Light

Cleaning Beam Size

0-300mm Adjustable

Cleaning Parameter Save

10 kinds of different welding parameter save





Handheld Laser Cleaning Machine With High - Performance QBH Port For Multiple Laser Sources 1



Handheld Laser Cleaning Machine with High-performance QBH Port for Multiple Laser Sources Application Advantages:


The HanWei HW-QXJ-1500 handheld cleaning device showcases remarkable application benefits. It is extremely portable. Owing to its compact and lightweight construction, it can be effortlessly carried and manipulated, being especially appropriate for restricted areas and mobile cleaning operations. It doesn't call for sophisticated machinery or a large workforce, thus boosting operational agility.

The handheld single oscillating cleaning head also exhibits remarkable adaptability. It can adeptly deal with a wide range of surface materials, various object forms, and different degrees of dirt. Whether it's for car washing, domestic cleaning, or industrial equipment upkeep, it functions dependably. Furthermore, it is energy-efficient and cost-efficient. The single-motor configuration saves energy while offering adequate cleaning force. It streamlines the cleaning procedure and reduces both time and energy consumption. Thanks to its uncomplicated structure, it has decreased production and maintenance costs. It is user - friendly, not necessitating specialized training, making it available to all users and minimizing operational mistakes and training expenditures.

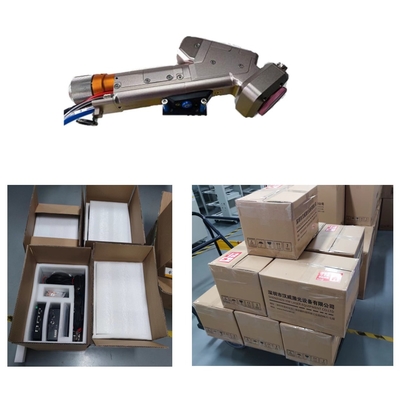

Handheld Laser Cleaning Machine with High-performance QBH Port for Multiple Laser Sources Packing:


  • One Handheld Laser Head
  • Two Protective Lens
  • A set of Connection Cables and Line
  • One Safety Switch Clip
  • One 15v Power Supply
  • One Touch Screen Monitor
  • One Controller
  • One User Manual
  • One Dust Cover



Handheld Laser Cleaning Machine With High - Performance QBH Port For Multiple Laser Sources 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. is dedicated to providing all integrators with top - notch welding technology on a global scale. The company ranks among the scarce global entities that can focus intensively on the research, development, manufacturing, and marketing of all kinds of lasers for welding, laser control systems, laser optics, as well as laser welding techniques. It is a national high - tech and specialized innovative enterprise boasting a comprehensive industrial chain.

Hanwei Laser has triumphantly developed a series of welding laser products attaining the international advanced standard. For example, the AMB spot - ring spot welding machine features exclusive technical solutions that are unrivaled by other companies worldwide. Furthermore, the "AMB spot - ring spot + blue light composite swing welding machine" not only closes the domestic technological gap but also leads the world in this field. It resolves problems such as inconsistent welding quality, rough welding surfaces, and spatter during the laser welding of highly reflective materials like copper and gold. In addition, the "AMB spot - ring spot + semiconductor composite welding machine" overcomes the issues of uneven fusion depth and varying welding speeds in the aluminum material welding of power batteries. Moreover, the "semiconductor + single - lamp single - rod 600W composite laser welding machine" conquers the challenges of low production yield, subpar welding quality, and slow processing speed in the sealing nail welding of power batteries.



Handheld Laser Cleaning Machine With High - Performance QBH Port For Multiple Laser Sources 3Handheld Laser Cleaning Machine With High - Performance QBH Port For Multiple Laser Sources 4Handheld Laser Cleaning Machine With High - Performance QBH Port For Multiple Laser Sources 5Handheld Laser Cleaning Machine With High - Performance QBH Port For Multiple Laser Sources 6
