1500W Handheld Single Motor Laser Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-QXJ-1500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

20m Cable Laser Cleaning Head

10m Cable Laser Cleaning Head

Laser Cleaning Head 300mm
Specifications
Handheld Laser Gun Weight: 0.7 Kg Laser Power: 1500W
Adopt Laser Source: 1064~1080nm Fiber Laser Source Cleaning Materials: Steel / Stainless Steel
Cleaning Laser Beam Size: 0-300mm Adjustable Collimation Focal Length: 50mm
Focusing Focal Length: 500mm Laser Output Mode: CW
High Light:

1500W Handheld Laser Cleaning Machine

,

Adjustable Beam Size Laser Cleaning Machine

,

Single Motor Laser Cleaning Machine
Product Description

Handheld Single Motor Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size





Handheld Single Motor Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size Description:



The Portable Single Oscillating Cleaning Device represents a highly functional cleaning solution. Essentially, it employs a solitary motor as the power source, driving the internal pump and other components of the cleaner. This cleaning instrument is proficient in cleaning materials such as steel and stainless steel. It extracts water from the water supply and amplifies its pressure. Through the spray gun and other accessories, a high-pressure water stream is produced to remove the dirt on the surfaces of diverse objects.

The cleaning gun is lightweight, compact, and designed in accordance with ergonomic concepts for a comfortable operation. It can smoothly adapt to a broad spectrum of cleaning tasks within different working environments. Whether in industrial large-scale production settings or during outdoor on-site repair work, it attains outstanding results.

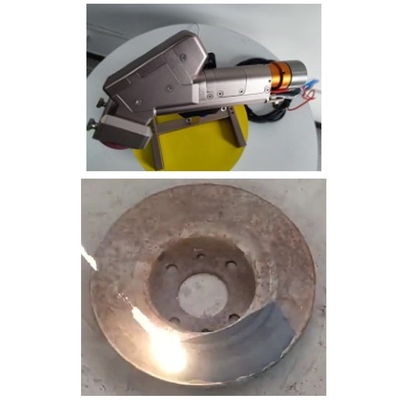

1500W Handheld Single Motor Laser Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size 0

Handheld Single Motor Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size Features:

  • Product Name: Fiber Laser Cleaning Machine
  • Laser Power: 1500W
  • Cleaning Laser Beam Size: 0-300mm Adjustable
  • Standard Focus length: 50 & 500mm standard Focus length adjustable
  • Handheld Laser Gun Weight: 0.7kg
  • Cleaning Laser Beam Form: Line “一”
  • Laser Head Connection: QBH
  • Cleaning Materials: Steel / Stainless Steel
  • Wavelength: 1064nm~1080nm
  • Positioning: Red Guide Beam
  • Gas: Nitrogen / No Gas



The Fiber Laser Cleaning Head, a high-powered Fiber Laser Gun equipped with a QBH fiber connector, exhibits remarkable capabilities. This Optical Fiber Laser Cleaning Device is not only of light weight but also highly user-friendly, weighing merely 0.7kg in total. Its cleaning beam size is adjustable within the range of 0 to 300mm, and a red guiding beam is incorporated to ensure precise alignment.



Handheld Single Motor Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size Technical Parameters:



Product Name

Handheld Single Wobble Laser Cleaning Machine

Laser Power

1500W

Handheld Laser Gun Weight

0.7 KG

Adopt Laser Source

1064~1080nm Fiber laser source

Fiber Cable

10m Standard. (15 / 20m Option)

Red Guide Light

50 & 500mm standard Focus length adjustable

Cleaning Beam Form

Line " 一 "

Fiber Connector

QBH

Laser Output Mode

CW

Position Guide

Red Guide Light

Cleaning Beam Size

0-300mm Adjustable

Cleaning Parameter Save

10 kinds of different welding parameter save

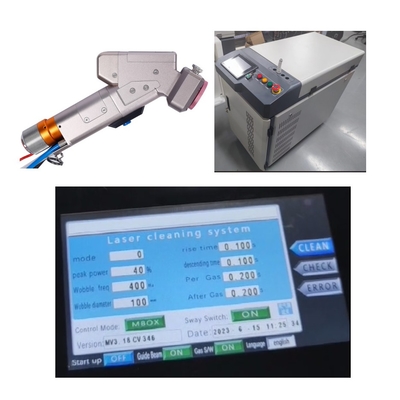

1500W Handheld Single Motor Laser Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size 1



Handheld Single Motor Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size Application Advantages:


The HanWei HW-QXJ-1500 handheld cleaning apparatus demonstrates outstanding application advantages. It is highly portable. Thanks to its small and lightweight design, it can be easily carried and operated, being particularly suitable for confined spaces and mobile cleaning tasks. It doesn't require elaborate machinery or a large number of workers, enhancing operational flexibility.

The handheld single oscillating cleaning head also displays excellent adaptability. It can skillfully handle various surface materials, diverse object shapes, and different levels of dirt. Whether in car washing, household cleaning, or industrial equipment maintenance, it performs reliably. Moreover, it is energy-saving and cost-effective. The single-motor setup conserves energy while providing sufficient cleaning power. It simplifies the cleaning process and cuts down both time and energy consumption. Due to its straightforward structure, it has reduced manufacturing and maintenance costs. It is user-friendly, not demanding specialized training, making it accessible to all users and minimizing operational errors and training expenses.



Handheld Single Motor Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size Packing:


  • One Handheld Laser Gun
  • One 15v Power Supply
  • A set of Connection Cables and Line
  • One Safety Switch Clip
  • One Touch Screen Monitor
  • One Controller
  • Two Protective Lens
  • One User Manual
  • One Dust Cover

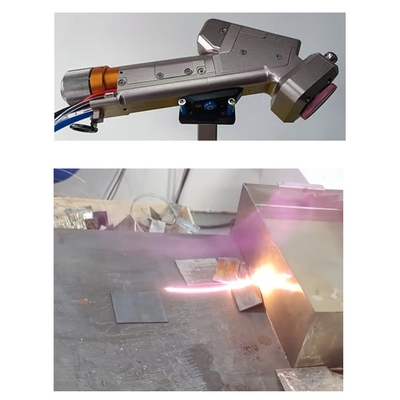

1500W Handheld Single Motor Laser Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. is committed to equipping all integrators with world-class welding technology. The company is among the few in the world that can concentrate on the R & D, production, and sales of lasers of all types for welding, laser control systems, laser optics, and laser welding processes, being a national high-tech and specialized new enterprise with a complete industrial chain.

Hanwei Laser has successfully developed a series of welding laser products that reach the international advanced level. For instance, the AMB spot-ring spot welding machine has unique technical solutions not possessed by other companies globally. There is also the "AMB spot-ring spot + blue light composite swing welding machine", which not only fills the domestic gap but is also a world pioneer, resolving issues such as poor welding consistency, unsmooth welding surfaces, and spatter in the laser welding of high-reflectivity materials like copper and gold. Additionally, the "AMB spot-ring spot + semiconductor composite welding machine" addresses the problems of inconsistent fusion depth and welding speed in the aluminum material welding of power batteries. Moreover, the "semiconductor + single-lamp single-rod 600W composite laser welding machine" tackles the difficulties of low yield, poor welding quality, and slow processing speed in the sealing nail welding of power batteries.



1500W Handheld Single Motor Laser Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size 31500W Handheld Single Motor Laser Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size 41500W Handheld Single Motor Laser Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size 51500W Handheld Single Motor Laser Cleaning Machine with 0-300mm Adjustable Cleaning Beam Size 6
