2000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-60150
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Laser Power: 2000W Handheld Laser Gun Weight: 0.7 Kg
Welding Materials: Steel / Stainless Steel / Aluminium Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( Option: 2mm Wire )
Double Route Wire Feeder: Double Route Wire Feeding Same Time Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option )
Electrical Input Voltage: 220v 50Hz / 60Hz Collimation Focal Length: 60mm
Focusing Focal Length: 150mm Laser Head Connection: QBH
Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon ) Gas: Argon / Nitrogen
High Light:

Single Motor Handheld Laser Welding Machine

,

2000W Handheld Laser Welding Machine

,

Double Route Handheld Laser Welding Machine
Product Description

2000W Fiber Handheld Single Motor Laser Welding Machine





Handheld Laser Welding Machine Double Route Wire Feeding Same Time Description:



The Handheld Single Wobble Welding Head, with its remarkable double wire feed function, is a highly advanced and reliable welding tool. By combining user-friendly design concepts, it is able to meet even the most demanding welding requirements. By carefully considering the applicability of the welding process and the comfort level during prolonged use, it offers a more competent and precise approach to performing welding tasks.

This welding head is not only lightweight and compact, but also ergonomically designed to ensure a firm and comfortable grip. Its unique design allows it to be easily adapted to a wide range of welding tasks in different working environments. Whether used in high volume production in industrial factories or in the field for renovation work, it consistently achieves remarkable and commendable results.

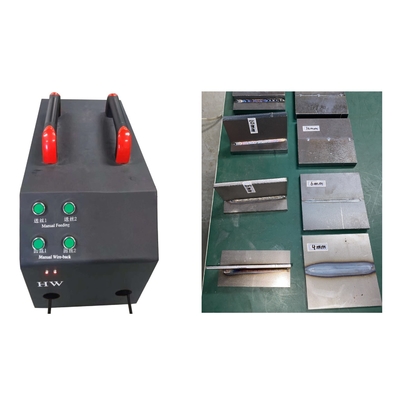

2000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time 0

Handheld Laser Welding Machine  Double Route Wire Feeding Same Time Features:

  • Product Name: Handheld Single Motor Laser Welding Machine
  • Feeding Wires: 0.8 &1.0 &1.2 & 1.6mm wire ( Option: 2mm wire )
  • Double Route Wire Feeder: Same time double route feeding
  • Laser Beam Size: 0~5mm Adjustable
  • Positioning: Red Guide Beam
  • Fiber Connector: QBH
  • Handheld Laser Gun Weight: 0.7kg
  • Cooling method: Wind Cooling



The Fibre Laser Welding Head represents a high-powered Fibre Laser Gun furnished with a QBH fibre connector. The size of its laser beam is adjustable within the range of 0 - 5mm, and it is equipped with a red guiding beam for accurate positioning. This Fiber Optic Laser Welding Nozzle is lightweight and easy to use, having a total weight of 0.7kg.



Handheld Laser Welding Machine Double Route Wire Feeding Same Time Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Position Guide

Red Guide Light

Fiber Connector

QBH

Handheld Laser Gun Weight

0.7 Kg

Welding Power

2000W

Welding Beam Size

0-5mm Adjustable

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Feeding Wires

0.8&1.0&1.2&1.6mm wire feeding ( Option: 2mm wire )

Double Route Wire Feeder

Double Route Wire Feeding Same Time

Welding Parameter Save

30 kinds of different welding parameter save

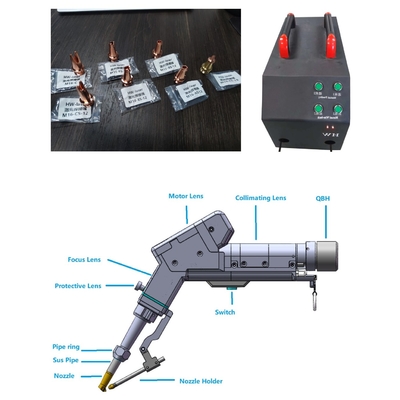

2000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time 12000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time 2





Handheld Laser Welding Machine Double Route Wire Feeding Same Time Application Advantages:



The HanWei HW - 20 - 60150 handheld welding machine, notably its outstanding handheld single wobble welding model featuring the distinctive trait of dual-track concurrent wire supply, surfaces as an exceptional option for a wide range of welding circumstances. Its mobility makes it a prime candidate for on-site welding operations, as it can be conveniently carried and utilized in any setting. The integration of a cordless welding function augments its ease of use and productivity, empowering welders to hasten the accomplishment of welding tasks with extraordinary haste. This product proves to be an indispensable aid in construction, fabrication, and repair undertakings, constituting a crucial tool for practitioners who seek a trustworthy and high-efficiency welding apparatus.

The handheld single wobble welding machine, endowed with its dual-track concurrent wire supply functionality, emerges as a preferable replacement for conventional argon arc welding and electric welding procedures, especially when working with thin metal sheets like stainless steel, steel, and aluminum. The welding head, being of a light mass, petite in size, and crafted with ergonomic principles, affords a pleasant and secure hold that mitigates operator tiredness during prolonged employment. The presence of a safety latch, accompanied by a tactile-activated indicator light, bolsters operational security and offers instant visual cues. Its intuitive design imposes minimal prerequisites on the operator, rendering it accessible even to those with meager welding proficiency. The welding output is truly praiseworthy, with the weld seam displaying a high degree of excellence, typified by sleekness and exactitude. The welding pace is considerably swifter in contrast to traditional means, and it eradicates typical welding flaws such as weld marks and color aberrations, thereby obviating the need for post-welding finishing. Additionally, its robust anti-interference capabilities, stemming from the self-engineered control system, guarantee stable and reliable functioning even in adverse work conditions, further fortifying its status as a top-tier selection for welding applications.

Handheld Laser Welding Machine Double Route Wire Feeding Same Time Packing:

  • One Fiber Laser Welding Head
  • One 15v Power Supply
  • One Double Route Wire feeding device
  • A set of Connection Cables and Line
  • One Controller
  • One Touch Screen Monitor
  • One User Manual
  • Seven kinds of nozzle
  • Two Protective Lens
  • One Safety Switch Clip

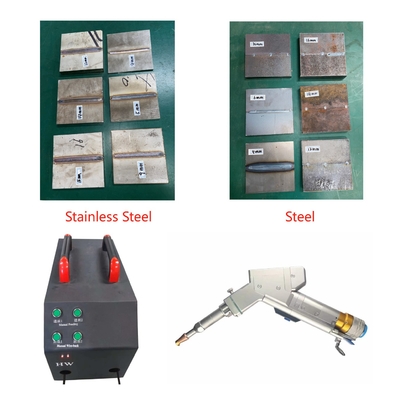

2000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time 3​



2000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time 4

Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. presents a diverse selection of laser systems, encompassing both desktop and handheld variants. These systems harness state-of-the-art fiber, pulsed or continuous wave, blue laser, diode laser, and hybrid laser technologies to precisely address the specific requirements of their clientele. Additionally, the company furnishes bespoke solutions for unique applications and extends training and assistance to ensure that customers can maximize the potential of their laser systems. With a widespread presence via offices and distributors spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global reach, serving customers on an international scale.

Hanwei Laser centers its efforts on the laser welding domain. The firm is committed to providing world-leading laser welding technology to international laser integration enterprises. It strives to deliver premium welding technology to all integrators. As one of the scarce national high-tech specialized new enterprises across the globe, it specializes in the research and development, manufacturing, and marketing of a comprehensive range of welding lasers, laser control systems, laser optical systems, and laser welding procedures within the entire industrial chain.

2000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time 52000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time 62000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time 72000W Fiber Handheld Single Motor Laser Welding Machine Double Route Wire Feeding Same Time 8
