Compact Fiber Handheld Laser Welding Machine with 4 Operating Modes and 220v Input Voltage

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-DZJS-1500
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Laser Power: 1500W Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon )
Electrical Input Voltage: 220v 50Hz / 60Hz Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option )
Collimation Focal Length: 60mm Focusing Focal Length: 150mm
Welding Materials: Steel / Stainless Steel / Aluminium Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
Double Route Wire Feeder: Option (Same Time Double Route Feeding) Cooling water: Purified Water
High Light:

Compact Fiber Handheld Laser Welding Machine

,

220v Handheld Laser Welding Machine
Product Description

Fiber Handheld Single Motor Laser Welding Machine





Handheld Laser Welding Machine Description:



The Handheld Single Wobble Welding Head represents a remarkable leap in welding technology. This advanced tool incorporates four distinct laser output modes, namely CW, PWM, QCW, and Argon.

The CW mode offers continuous and stable laser emission, ensuring a seamless and consistent welding process, ideal for tasks that require a steady and uninterrupted flow of energy for precise and reliable welds. The PWM mode, with its adjustable pulse width modulation, provides enhanced control over the welding intensity, allowing for fine-tuning of the weld characteristics to suit various material thicknesses and welding requirements. The QCW mode combines the advantages of both high peak power and moderate average power, enabling it to handle a wide range of welding applications, from thin and delicate materials to thicker and more robust ones, with outstanding efficiency and minimal heat-affected zones. The Argon mode, specifically designed for working with argon gas, promotes a cleaner welding environment by reducing oxidation and impurities, resulting in welds with superior quality and appearance.

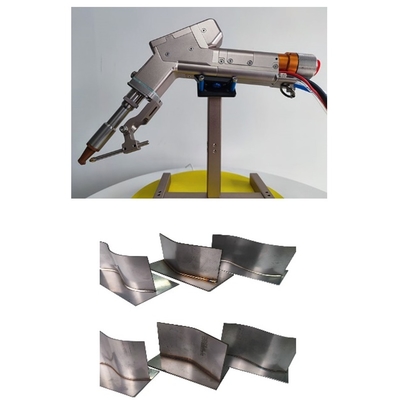

When it comes to welding effects, it truly excels. It produces clean, precise, and robust weld seams, accompanied by minimal spatter and distortion. The welding arc is stable and well-regulated, facilitating smooth and continuous welding. Whether dealing with thin or thick materials, it achieves excellent fusion, guaranteeing the integrity and durability of the welded joints. Thus, it can meet the stringent quality demands of a wide range of welding projects, spanning from the assembly of delicate electronic components to heavy-duty industrial fabrications.


Compact Fiber Handheld Laser Welding Machine with 4 Operating Modes and 220v Input Voltage 0

Handheld Laser Welding Machine Features:

  • Product Name: Fiber Laser Welding Gun
  • Handheld Laser Gun Weight: 0.7kg
  • Laser Beam Size: 0~5mm Adjustable
  • Welding Thickness: 4mm Stainless steel Full Penetration
  • Handheld Laser Gun Materials: Aluminium alloy & Stainless Steel
  • Fiber Connector: QBH
  • Welding Beam Form: Line “一”
  • Positioning: Red Guide Beam
  • Cooling method: Water Cooling

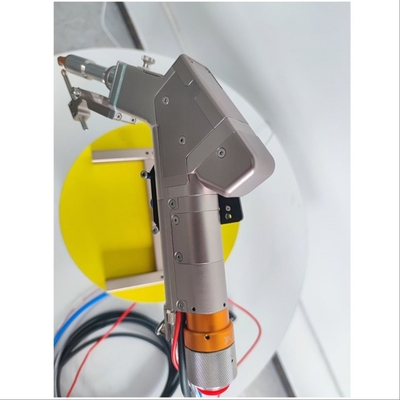

The Fiber Laser Welding Head, which is a crucial part of the handheld single wobble welding setup, showcases a QBH fiber connector-fitted, high-power Fiber Laser Gun. It has a laser beam size that can be adjusted within the range of 0 to 5mm and a red guiding beam for precise positioning. With a weight of only 0.7kg, it offers great convenience and ease of portability. The handheld single wobble design gives it extraordinary flexibility, smoothly handling various welding angles and complex operations. Its human-centered design also boosts the operator's comfort during extended periods of use.

With an ergonomic design, it not only satisfies sophisticated welding requirements but also considers both the practicality in welding and the ease during long-duration use. Its lightweight and compact construction guarantees a pleasant grip and can readily adapt to different welding jobs in assorted work settings, whether it's large-scale production in factories or outdoor on-site repair work. It is thus a perfect option for both meticulous and heavy-duty welding tasks.


Handheld Laser Welding Machine Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Welding Power

1500W

Welding Beam Size

0-5mm Adjustable ( 0-10mm option )

Laser Output Mode

4 mode ( CW, PWM, QCW, Argon )

Welding Beam Form

Line " 一 "

Adopt Laser Source

1064~1080nm Fiber laser source

Handheld Laser Gun Weight

0.7kg

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Welding Parameter Save

30 kinds of different welding parameter save

Gas

Argon / Nitrogen



Compact Fiber Handheld Laser Welding Machine with 4 Operating Modes and 220v Input Voltage 1





Handheld Laser Welding Machine Application Advantages:



The HanWei HW-DZJS-1500 handheld welding machine, driven by CW, PWM, QCW, and Argon laser modes, ushers in a new level of welding prowess.

CW emits a steady laser for highly accurate, stable welds essential in precision tasks. PWM's adjustable pulse width modulation enables easy adaptation to various metal thicknesses and complex geometries. QCW, with its blend of high peak and moderate average power, handles thin foils to thick plates efficiently. The Argon mode uses argon's inertness to minimize oxidation, yielding flawless, durable welds.

This machine's portability offers on-site convenience, and wireless functionality boosts productivity, making it a staple in construction, manufacturing, and repair.

The handheld single wobble variant, enhanced by these modes, surpasses traditional welding for thin metals like stainless steel, steel, and aluminium. Its ergonomic, lightweight welding head ensures a comfortable, secure grip. With a safety lock and touch-out light, it's user-friendly and safe even for beginners. It produces top-notch welds quickly, without marks or discoloration, and its anti-interference and self-developed control system guarantee reliable performance in diverse applications, from electronics to heavy industry.

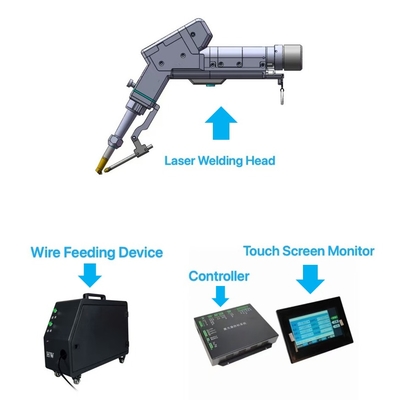

Handheld Laser Welding Machine Packing:

  • One 15v Power Supply
  • One Fiber Laser Welding Head
  • One Touch Screen Monitor
  • One Controller
  • A set of Connection Cables and Line
  • Two Protective Lens
  • One Wire feeding device
  • One Safety Switch Clip
  • Seven kinds of nozzles
  • One User Manual

​Compact Fiber Handheld Laser Welding Machine with 4 Operating Modes and 220v Input Voltage 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. has triumphantly engineered a suite of welding laser products that reach international advanced benchmarks. For instance, the AMB spot ring spot welding machine possesses a technical solution unique among companies globally. The 'AMB spot ring spot + blue light composite swing welding machine' not only plugs the domestic void but also pioneers worldwide. It tackles the issues of inconsistent laser welding, rough welding surfaces, and spattering when dealing with highly resistant materials like copper and gold. The 'AMB spot ring spot + semiconductor composite welding machine' resolves the challenges of welding speed and the consistency of fusion depth for aluminium materials in power batteries. The'semiconductor + single lamp single rod 600W composite laser welding machine' overcomes the difficulties of low yield, inferior welding quality, and sluggish processing speed in power battery sealing nail welding.

Hanwei Laser's offerings find extensive application in diverse sectors such as new energy batteries, automotive, automotive components, electronic circuitry, fiber optic communication apparatus, mobile phones, household appliances, kitchen and bathroom hardware, precision instruments, medical devices, solar energy, the eyewear industry, and the motor industry. In several of these industries, a multitude of products demonstrate an unrivalled welding efficacy.


Compact Fiber Handheld Laser Welding Machine with 4 Operating Modes and 220v Input Voltage 3Compact Fiber Handheld Laser Welding Machine with 4 Operating Modes and 220v Input Voltage 4Compact Fiber Handheld Laser Welding Machine with 4 Operating Modes and 220v Input Voltage 5Compact Fiber Handheld Laser Welding Machine with 4 Operating Modes and 220v Input Voltage 6
