| Brand Name: | HanWei |
| Model Number: | HW-Y-80W |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 3600 Sset per year |

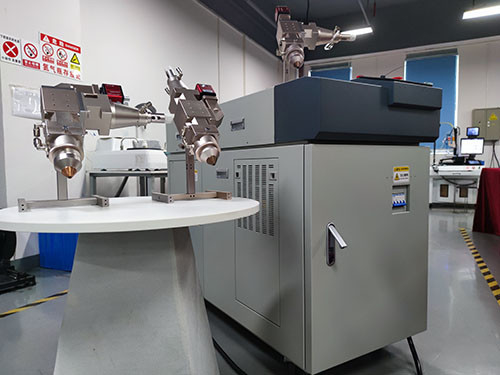

80w YAG Laser Welding Machine For 0.6mm 0.8mm 1mm Thin Stainless Steel Welding For Phone Accessories
The YAG Laser Welding Machine is an advanced and efficient welding tool developed for battery cell ear welding and electrical appliance welding. It adopts YAG laser source and pulse work mode, and is suitable for welding in 5 to 45 temperature and clean environment. The YAG Laser Welding Machine comes with an input power of AC220v or AC380v and 50/60 Hz. Its model is HW-Y. This machine allows for precise and reliable welding of battery cell ears and electrical appliances, ensuring a high quality weld.
This machine has a wide range of applications, suitable for welding of stainless steel, copper, aluminum, nickel and other metal materials. It is ideal for welding of various products in industries such as automotive, electronic, medical, communication, and aerospace. With its high precision design and reliable performance, it is widely used for welding of battery cells and electrical appliances.
The YAG Laser Welding Machine is highly reliable and efficient. It is easy to operate and maintain. It is an ideal choice for battery cell ear welding and electrical appliance welding.
HW-YAG-80W:
The product adopt fiber conducted output, multi-optical path output, can be match different worktable. Unique optical system design with import quartz optical lens, overseas coating technology, high anti-injury threshold value, light speed stable, matching with our independent R&D PID self-adaptation power feed-back system power supply.
Optical communication, USB connector, 18650 phone battery cover, battery tab-lead. Connector.Hardware, kitchen, jewelry, elevator panel, household electrical appliances, corrugated pipe, battery, Solar energy, Optical communication cover, aviation parts.

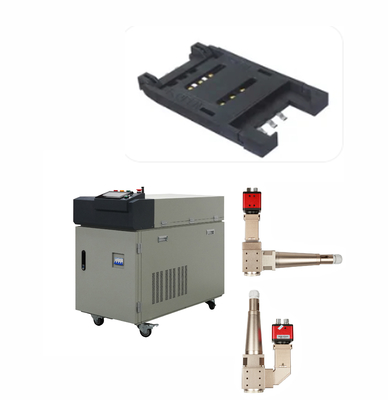

YAG Welding Head :
YAG welding head use for 8W-600W YAG laser source, the product with small size, light weight, (T, F, Y) three types suitable for different structures. Inside of welding head is completely sealed, can avoid optical parts from dust pollution. Adopt gas curtain parts, reduce the welding smoke and splash residue to pollute lens. It is high economic and efficiency welding head.
1. Adopt fiber conducted output, realize energy separate light, time separate light.
2. Integrate independent R&D PID power feed-back technology, realize keep same welding effective.
3. Unique optical design, import optical lens, high anti-injury threshold value, light speed stable.
| Features | Value |
|---|---|
| Product Name | YAG Laser Metal Laser Welding Machine |
| Model | HW-Y-80 |
| Input Voltage | AC380v 50/60 Hz |
| Wavelength | 1064nm |
| Output Power | 80w |
| Max Pulse Energy | 50J |
| Max Peak Power | 5 Kw |
| Optical Route | 1 - 4 Optional |
| Net Weight | 170 Kg |
| Pulse Width | 15ms |
| Repeat Frequency | 100 Hz |
| Power Stability | +- 2.5%. |
| Working Mode | Pulse |
| Cooling Method | Internal Mini Water Chiller Cooling |
| Equipment Power | 3 Kw |
| Optical Separate Type | Energy / Timing |
| Dimension | 1175*515*980 mm |
Laser welding can be applied to the welding of various metals, alloys, steel and other alloy materials, as well as to the welding of various dissimilar metals such as copper brass, copper titanium, nickel copper, and copper titanium.
Automotive parts industry: engine cylinder gasket; Hydraulic tappet sealing welding; Filter sealing welding; Spark plug welding; Welding of valve push rod; Sealing welding of anti-collision airbag electric detonator; Heat treatment of crankshaft or cylinder liner; and so on
Electronics industry: Sealing welding of the shell of mobile phone batteries and power batteries; Solid state relay sealing welding; Welding of connector data cables; and so on
Hardware industry: tools, accessories, tableware, lighting fixtures; and so on.
The product adopt fiber conducted output, multi-optical path output, can be match different worktable. Unique optical system design with import quartz optical lens, overseas coating technology, high anti-injury threshold value, light speed stable, matching with our independent R&D PID self-adaptation power feed-back system power supply.
Optical communication, USB connector, 18650 phone battery cover, battery tab-lead. Connector.Hardware, kitchen, jewelry, elevator panel, household electrical appliances, corrugated pipe, battery, Solar energy, Optical communication cover, aviation parts.
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
