Powered 3-in-1 Laser Welding Machine Handheld Laser Gun for Aluminium Alloy Stainless Steel Materials

Name: Powered 3-in-1 Laser Welding Machine Handheld Laser Gun for Aluminium Alloy Stainless Steel Materials
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-20-60150
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-20-60150
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Laser Power:

Up To 3000W For Welding And 2000W For Cleaning

Handheld Laser Gun Weight:

0.7 Kg

Welding Laser Beam Size:

0-5mm Adjustable

Cleaning Laser Beam Size:

0-50mm Adjustable

Handheld Laser Gun Materials:

Aluminium Alloy & Stainless Steel

Welding Materials:

Steel / Stainless Steel / Aluminium

Wire Feeding Device:

Standard Type : 0.8&1.0&1.2&1.6mm Wire

Double Route Wire Feeder:

Option ( Same Time Double Route Feeding )

Welding Parameter Storage:

30 Kinds Of Different Welding Parameter Save

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

Stainless Steel Laser Welding Machine

3-in-1 Laser Welding Machine

Aluminium Alloy Laser Welding Machine

Product Description

Three-in-One Laser Welding Machine for Welding / Cutting and Cleaning Functions

Three-in-One Laser Welding Machine for Welding / Cutting and Cleaning Functions Description:

The Handheld Single - Motor Triple - Function Apparatus marks a substantial advancement within the domain of portable multi - purpose tools. Propelled by a solitary but robust motor, this device integrates three crucial functions: welding, cutting, and cleaning. All these functions are neatly incorporated into an ergonomically designed and sleek handheld casing.

Regarding welding, it meticulously regulates the amperage and voltage to produce a steady arc. This allows for robust and precise welds on diverse materials such as steel, stainless steel, and aluminum. For cutting operations, a concentrated high - intensity beam pierces materials of varying thicknesses at modifiable speeds and depths, guaranteeing neat and efficient cuts. In the cleaning mode, it sucks in cleaning agents or water and converts them into a potent, adjustable high - pressure spray through a flexible nozzle. This effectively eradicates rust, dirt, and pollutants. This apparatus showcases remarkable adaptability and is appropriate for a broad spectrum of settings, including workshops, construction areas, and industrial maintenance sites, performing admirably in all three key functions.

Powered 3-in-1 Laser Welding Machine Handheld Laser Gun for Aluminium Alloy Stainless Steel Materials 0

Three-in-One Laser Welding Machine for Welding / Cutting and Cleaning Functions Features:

Product Name: Fiber Laser Three-in-One Machine
Handheld Laser Gun Weight: 0.7kg
Laser Power: Up to 3000W for welding and 2000W for cleaning
Standard Focus length: 60 and 150mm standard Focus length adjustable
Welding Laser Beam Size: 0-5mm Adjustable
Cleaning Laser Beam Size: 0-50mm Adjustable
Laser Head Connection: QBH
Laser Beam Form: Line “一”
Welding Materials: Steel / Stainless Steel / Aluminum
Cooling method: Water Cooling
Gas: Argon / Nitrogen

The Handheld Single - Motor Three - Function Device stands out as an excellent choice for metalworking, machinery repair, and surface pre - treatment in workshops and manufacturing plants. It utilizes a maximum power of 3000W for welding and 2000W for cleaning, which allows it to handle steel, stainless - steel, and aluminum materials. The laser beam is in a linear shape and is connected through a QBH interface, and it requires the use of argon or nitrogen gas.

This handheld laser device, weighing 0.7 kilograms, comes with an adjustable standard focal length that spans from 60 to 150mm. Moreover, it provides adjustable laser beam diameters for both the welding and cutting procedures. The diameter of the welding beam can be adjusted within the range of 0 to 5mm, while the cleaning beam diameter can be varied from 0 to 50mm. To guarantee effective heat dissipation during its operation, the machine makes use of a water - cooling system. This helps in maintaining stable performance and extending its service life.

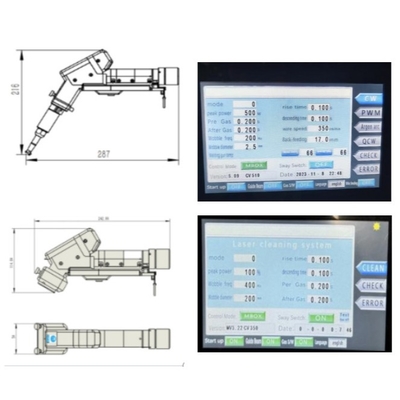

Three-in-One Laser Welding Machine for Welding / Cutting and Cleaning Functions Technical Parameters:

Product Name	Handheld Single Motor Three-in-One Machine
Laser Power	Up to 3000W for welding and 2000W for cleaning
Handheld Laser Gun Weight	0.7 KG
Cleaning Beam Form	Line " 一 "
Standard Focus length	60 and 150mm standard Focus length adjustable
Wire Feeding Device	Standard type : 0.8&1.0&1.2&1.6mm wire
Double Route Wire Feeder	Option (Same time double route feeding)
Welding Laser Beam Size	0-5mm Adjustable
Cleaning Laser Beam Size	0-50mm Adjustable
Fiber Connector	QBH
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Parameter Save	30 kinds of different welding parameter save

Powered 3-in-1 Laser Welding Machine Handheld Laser Gun for Aluminium Alloy Stainless Steel Materials 1

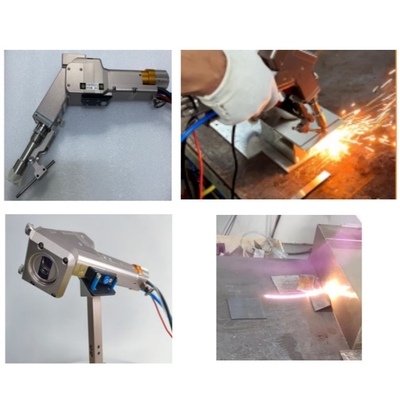

Three-in-One Laser Welding Machine for Welding / Cutting and Cleaning Functions Application Advantages:

The HanWei HW - 20 - 60150 Handheld Single - Wobble Triple - Function Machine demonstrates outstanding application benefits. Its remarkable portability, attributed to its compact and lightweight build, makes it ideal for use in restricted areas and mobile tasks. This boosts operational agility without relying on elaborate machinery or a large labor force.

This apparatus combines welding, cutting, and cleaning capabilities. In welding, boasting a 3000W power output, it performs exceptionally well when joining steel, stainless steel, and aluminum. The welding beam, which can be adjusted from 0 to 5mm, is capable of fulfilling various welding demands. Concerning the cutting function, the laser beam can slice through materials with adjustable cutting velocity and depth. As for the cleaning function, with a 2000W power, the beam, adjustable from 0 to 50mm, is highly effective in cleaning a wide array of surfaces and is suitable for automotive, domestic, and industrial equipment cleaning.

It is energy - saving and cost - efficient. The single - motor setup conserves energy, simplifies work procedures, and cuts down on both time and energy usage. Its uncomplicated structure leads to reductions in production and maintenance expenses. Additionally, it is user - oriented, as it doesn't necessitate specialized instruction, is accessible to a wide range of users, and helps to minimize mistakes and training - associated costs.

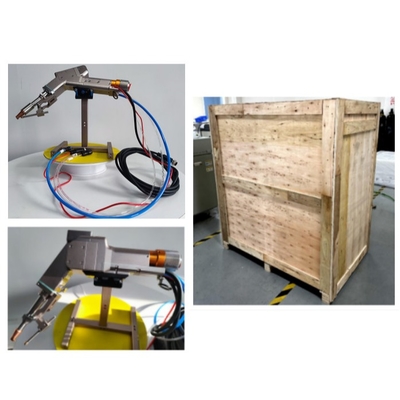

Three-in-One Laser Welding Machine for Welding / Cutting and Cleaning Functions Packing:

Seven kinds of nozzles
A set of Connection Cables and Line
Two Protective Lens
One 15v Power Supply
One Handheld Laser Head
One Controller
One Touch Screen Monitor
One Focus Lens for cleaning
One Safety Switch Clip
One Wire feeding device
One User Manual

Powered 3-in-1 Laser Welding Machine Handheld Laser Gun for Aluminium Alloy Stainless Steel Materials 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. is committed to providing all global integrators with excellent welding technology. As a national high - tech and newly - recognized specialized enterprise, it focuses on the research, development, manufacturing, and sales of a comprehensive industrial chain that includes welding lasers, laser control systems, laser optical systems, and laser welding processes. The company's product lineup comprises nine major series of laser welding machines, such as the AMB Spot Ring Spot Welding Machine, Blue Light Welding Machine, along with their relevant supplementary components.

Hanwei Laser follows the business tenet of "prioritizing R&D, backed by technology, and protected by service" to serve B - end clients. It has a capable team boasting extensive knowledge and experience in laser welding and related areas. The products are widely applied in various sectors, including new energy batteries, automotive, electronics, and household appliances, demonstrating distinct welding capabilities. Significantly, the company has made remarkable technological advancements. The AMB Spot Ring Spot + Blue Light Composite Swing Welding Machine represents a world - leading innovation, solving the problems in welding highly reflective materials. Other models like the AMB Spot Ring Spot + Semiconductor Composite Welding Machine and the Semiconductor + Single Lamp Single Rod 600W Composite Laser Welding Machine have also efficiently addressed specific welding problems in the power battery field.
