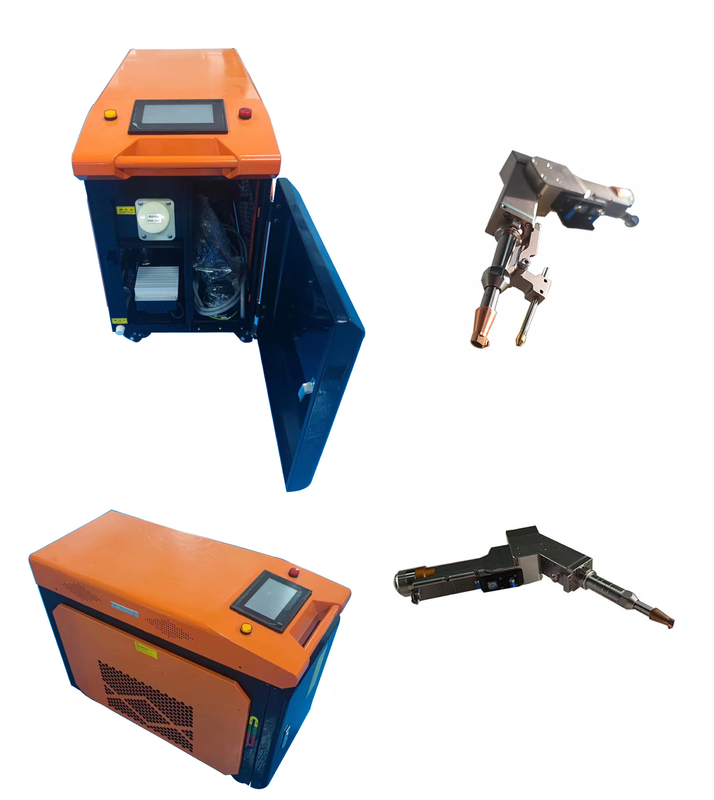

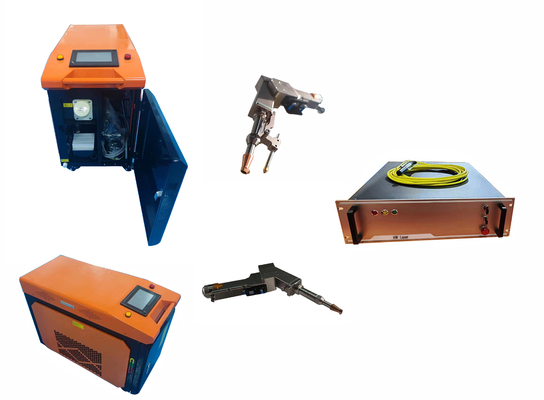

1500w Small Handheld Laser Welding Machine Water Cooling Multipurpose

Laser welding is the use of high-energy laser pulses to locally heat a material in a small area. The energy radiated by the laser is directed through heat transfer to the internal diffusion of the material, melting the material and forming a specific molten pool. It is a new type of welding method mainly aimed at the welding of thin-walled materials and precision parts, which can achieve spot welding, butt welding, overlap welding, sealing welding, etc. It has a high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, smooth and beautiful weld seams, no need for treatment or simple treatment after welding, high weld quality, no air holes, precise control, small focus point, high positioning accuracy, and easy automation.

Using laser welding machines to process workpieces can improve productivity, resulting in beautiful appearance, small weld seams, large welding depth, and high welding quality. Laser welding machines are widely used in fields such as dental denture processing, keyboard welding, steel welding, sensor welding, and battery sealing cover welding.

Handheld welding is mainly aimed at laser welding of long-distance and large workpieces, overcoming the limitations of workbench travel space. During welding, the heat affected area is small, which will not cause deformation, blackening, or traces on the back. Moreover, the welding depth is large, the welding is firm, and the melting is sufficient. It can not only achieve thermal conductivity welding, but also continuous deep penetration welding, spot welding, butt welding, overlap welding, sealing welding, seam welding, etc.

This process subverts the traditional working mode of laser welding machines, with the advantages of simple operation, beautiful welds, fast welding speed, and no consumables. It can be used for welding thin stainless steel plates, iron plates, galvanized plates, and other metal materials, and can perfectly replace traditional argon arc welding, stainless steel plates, iron plates, aluminum plates, and other metal materials welding.

HanWei 1500w Handheld Laser Welding Machine adopt HW double motor wobble laser welding head. The handheld head have various laser beam shapes for selection to different welding requirements. The welding area can adjustable through laser beam diameter control 0.5-5mm size. The Laser output Mode also have different mode for selection such as CW, QCW, PWM, Argon.

1500w laser can weld stainless steel up to 4mm and aluminum up to 3mm by high speed and high efficiency.

The 1500w Handheld laser welding machine HW-ZJS-1500 is a machine really worth owning :

1. Small size Machine. Save space in user factory.

2. The small size machine with wheels, its easy to move to the place where needed welding machine.

3. Handheld Welding gun weight is 0.7kg only, mini size, comfort to hold.

4. Advanced control system : Touch screen parameter setting digital control system.

5. Long cable length from machine body to handheld gun. 10m, 20m, 30m... customized. Usually use 10m/20m cable length.

6. Large and Adjustable welding beam size : 0.5 - 5mm.

7. Laser Beam Shapes have various type. According to welding requirements select.

The Handheld Laser Welding Head double motor wobble type with laser welding range adjustment, light weight, various laser beam shape , more depth of fusion advantages to adapt to use in different scenes.
HanWei Laser Independent develop the full set and put on the market. Products with ergonomic concept and design, think through the welding technology applicability and comfort for long-term use (Weight 0.7 kg). The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others. Adopt drawer type of protection lens setting for convenience of users themselves for a replacement.
