| Brand Name: | HanWei |
| Model Number: | HW-20-60150 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 6000 Set per year |
Wobble Laser welding is a new and advanced welding method, it is one of important aspects in material processing technology application.
Wobble Laser Principle and Advantages:
During welding, the welding gun swings left and right at a certain frequency, causing the welding joint to form a certain wave shape, thereby increasing the width and depth of the welding joint.
The central part of the welding head has a higher temperature, while the temperatures on both sides are lower. By swinging the welding gun left and right, the heat distribution of the welding head can be more uniform.
The single motor wobble handheld welding is new welding type of laser welding field, the laser beam can be swing by motor lens to form more widely welding width and depth.The working principle is : Through the swing beam to reform output laser beam shape to get the output beam size more bigger and more stronger penetrating power.
| Product Name | Handheld Welding Head |
| Usable Laser Power | 1000W-3000W |
| Laser Source | Fiber Laser Source |
| Interface type | QBH |
| Accessible wave range | 1064 nm |
| Net weight | 0.7 kg |
| Laser head size | 216*287 mm |
| Laser head packing size | 39*22*29cm. |
| Laser head packing gross weight | 9kg |
| Standard single route wire feeding device packing Info | 17Kg. 70*40*65cm. |
| Double route wire feeding device packing Info | 30Kg. 79*45*70cm. |
| Usable laser source | Most of laser source |
Handheld Welding Head Product Show:
Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.

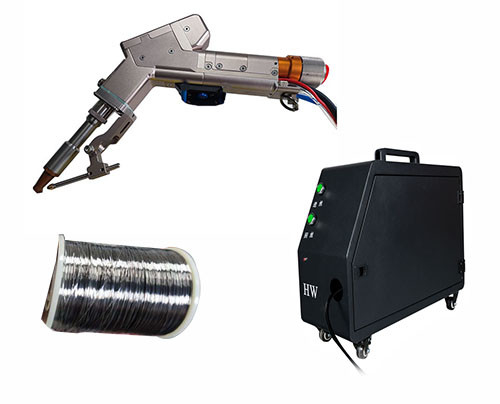

Laser welding head, control system, monitor, power supply and spare parts. With safety lock function to ensure safety process.
Standard single route wire feeding device
Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.
Paper Box Packing

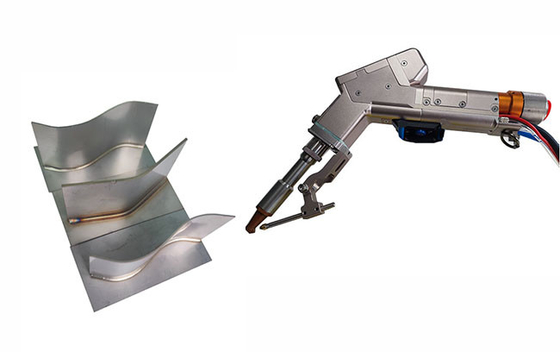

Welding Sample Show
Nozzle
Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
