The handheld laser cleaning gun of fiber laser cleaning machine is a portable device that uses laser technology to remove contaminants, such as rust, paint, or dirt, from various surfaces.
Laser cleaning is generally considered an environmentally friendly method since it does not involve the use of chemicals or generate hazardous waste. However, it is essential to consider any specific regulations or safety guidelines regarding laser use in your area.

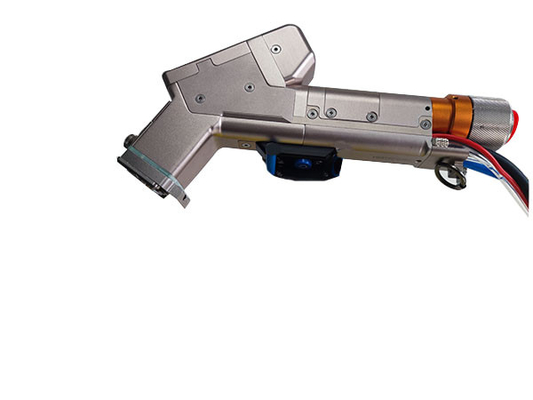

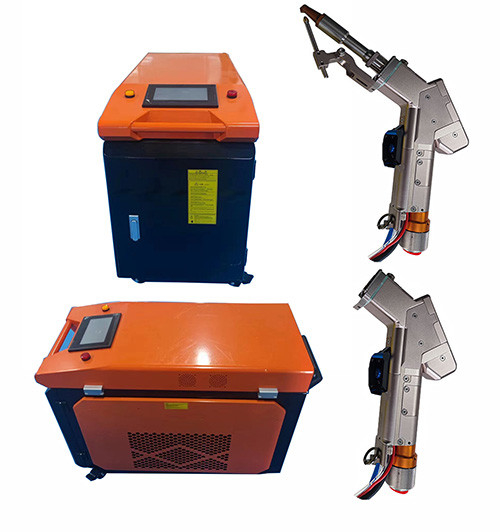

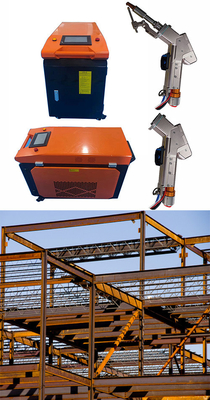

The Handheld Welding Gun Three-In-One Laser Head is a perfect combination of high-tech laser welding,cleaning,cutting technology and adopt advanced touch screen digital control system.
The laser welding gun is equipped with an advanced fiber laser control system and internal structure, and its head weight is only 0.7Kg, making it easy to control and portable.
What’s more, this handheld laser welder comes with a Three In One Laser welding head that allows users to adjust its laser welding area from 0.5~5mm freely, laser cleaning area from 0.5~50mm freely, easy to switch different working mode between laser welding, laser cleaning, laser cutting. It is absolutely the best choice for those who require excellent laser welding,cleaning,cutting performance.
The HanWei Handheld Cleaning Head with its advanced features and advantages widely used in cleaning industry such as precision instruments and meters, electronic components, home appliances, mobile communication, watches and glasses, jewelry and jewelry. Suitable for various metals or alloys such as stainless steel, carbon steel, copper, aluminum, gold, silver, chromium, nickel, titanium, tantalum, etc; It can also be used for welding between various different materials :
1.Laser Welding Function :
The Three-In-One Handheld Laser Head welding function is same as special handheld laser welding head. Just in the control system have one more function for switching Laser Cleaning mode.
2.Switching cleaning mode from welding mode just need to click CLEANING button in touch screen monitor. Then tore down the front welding part of handheld welding head, After that replace the special focus lens.
3.Switching cutting mode from welding mode, just need to replace a special cutting nozzle.
All of switching process in Three-In-One Handheld laser head is simple and easy to operate.
| Parameter | Details |
|---|---|
| Handheld Head Weight | 0.7 Kg |
| Wobble Laser Shape | Line "-" |
| Laser Welding Area | 0.5~5mm Adjustable |
| Laser Cleaning Area | 0.5~50mm Adjustable |
| Fiber Cable Length | Customized |
| Welding Focus Length | 150mm |
| Cleaning Focus Length | 500mm |
| Cooling Method | Water Cooling |
| Laser Power | Up To 2000w |
| Control System | Touch Screen Digital Control System |
The HanWei HW-20-60150 is a handheld laser welding head with high accuracy and advanced techonology. It is designed to provide a reliable and efficient welding solution for a variety of industrial applications.
This handheld laser gun is suitable for welding wire and can be used with a water-cooled welding head for maximum efficiency. It offers superior performance and accuracy and is ideal for a variety of industrial applications.
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
