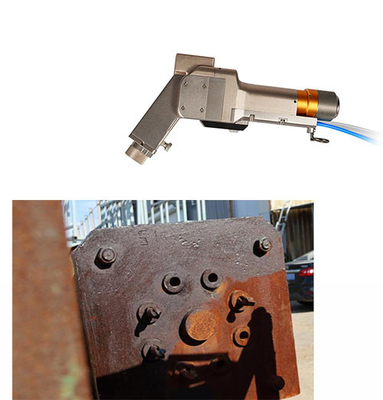

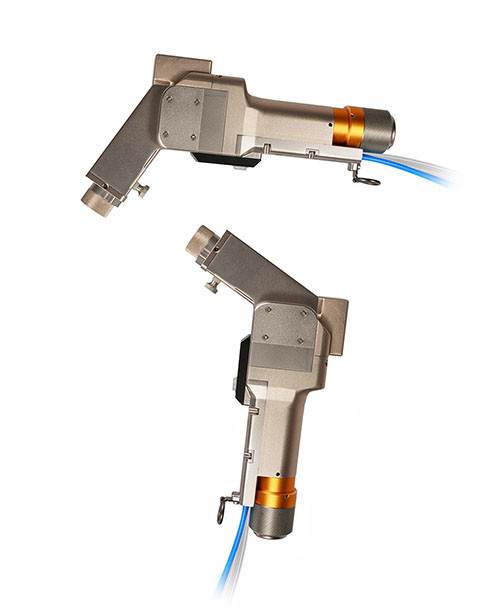

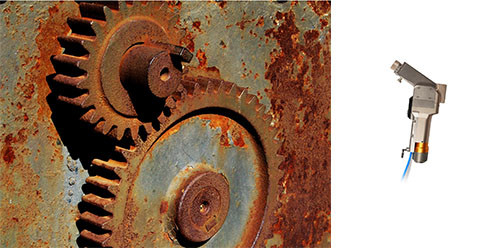

The handheld laser cleaning gun of fiber laser cleaning machine is a portable device that uses laser technology to remove contaminants, such as rust, paint, or dirt, from various surfaces.
It operates by emitting a high-intensity laser beam that vaporizes or ablates the unwanted material without causing damage to the underlying surface.
HanWei Laser is one of the only a few supplier around the world, who can research and develop the whole set of handheld cleaning system : From Handheld cleaning gun, Laser control system, Celding parameters for various cleaning solutions.
Here are some key features and considerations related to HanWei handheld fiber laser cleaning guns:
1.Laser Power and Wavelength: HanWei handheld laser cleaning gun is special for 1064nm fiber laser source, support 2000w laser power maximum. The power and wavelength of the laser determine its effectiveness in different cleaning applications. Higher power lasers are capable of removing tougher contaminants, while the laser beam shape can be selected based on the material being cleaned.
2.Safety Measures: Laser cleaning guns should incorporate safety features to protect the user and bystanders. These may include interlock mechanisms, laser emission indicators, and adjustable power settings.
3.Surface Compatibility: The suitability of laser cleaning for a particular surface depends on its material and surface finish. Laser cleaning is commonly used on metals.
4.Environmental Considerations: Laser cleaning is generally considered an environmentally friendly method since it does not involve the use of chemicals or generate hazardous waste. However, it is essential to consider any specific regulations or safety guidelines regarding laser use in your area.
5.Operator Training: The handheld cleaning head is light in weight, the parameter setting in control system is simple. Its easy to learn and operate. About safety purpose, operators should be familiar with safety procedures, laser operation, and the appropriate techniques for different cleaning applications.
6.Cost and Availability: Handheld laser cleaning guns can vary significantly in cost depending on the power, features, and brand. Availability may also vary depending on your location and the specific industrial or commercial suppliers in your area.
It is important to note that while handheld laser cleaning guns can be useful tools, they should be operated with care and in accordance with safety guidelines to prevent accidents or damage to surfaces.
The HanWei Handheld Cleaning Head with its advanced features and advantages widely used in cleaning industry such as precision instruments and meters, electronic components, home appliances, mobile communication, watches and glasses, jewelry and jewelry. Suitable for various metals or alloys such as stainless steel, carbon steel, copper, aluminum, gold, silver, chromium, nickel, titanium, tantalum, etc; It can also be used for welding between various different materials :
| Model | HW-20-50150 |
| Handheld Head Weight | 0.7 Kg |
| Cable Length | 10m / 20m Option |
| Laser Cleaning Beam Range | 0.5 - 50mm Adjustable |
| Laser Power | Up to 2000w |
| Laser Source | Fiber Laser Source |
| Wavelength | 1064nm |
| Cleaning Parameter Setting | Touch Screen Monitor Digital Control |
| Language In Control System | Customized |
| Laser Cleaning Gun Holding Part | User-freindly comfort holding, Light in Weight |
We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.
If you have any questions or need assistance with our Handheld Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.
The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.
HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world.
Hanwei Laser Equipment Co.,Ltd is a leading corporation of laser welding systems for a variety of industries, is the worldwide innovation leader in the development of components and system solutions in the field of laser welding technology, including automobile battery, new energy resources, energy storages, aerospace, jewelry, metal processing, medical, plastic, and more.
Hanwei laser Founded in 2016, the company has over two decades of experience in the industry and utilizes the latest technology to provide innovative, reliable, and high-quality laser solutions.
Great changes are driven by technology. And technologies change the world.
The company offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.
Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.
The company has a reputation for excellent customer service, quality products, and innovative solutions, which have made it a trusted name in the laser welding industry.
