Double Motor Type Laser Cleaning Head Gun For 1kw 2kw Laser Power
Basic Properties
Place of Origin:
China
Brand Name:
HanWei
Certification:
CE, FDA
Model Number:
HW-20-50150
Trading Properties
Minimum Order Quantity:
1 set
Price:
Negotiation
Payment Terms:
T/T
Specifications
| Model: | HW-20-50150 | Name: | Handheld Laser Cleaning Head Double Motor Type |

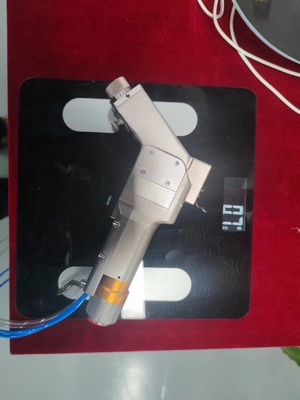

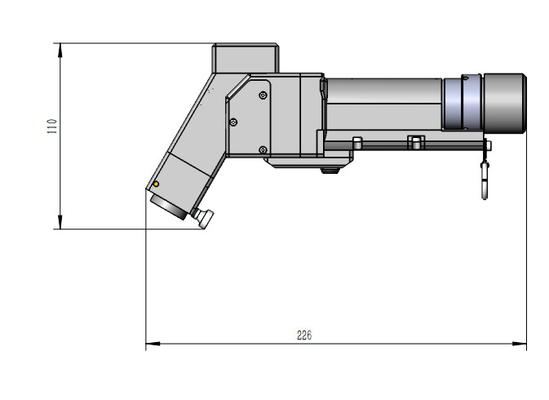

| Weight: | 0.7kg | Size: | 114*242mm |
| Cleaning width: | 0.5~50mm Adjustable | Laser beam shape: | ―、○、◎、⊙、△、8 |
| Laser power: | Up To 2000w | Laser source: | All Type Fiber Laser Source |
| High Light: | Laser Cleaning Head 2kw,Laser Cleaning Head 1kw,Double Motor laser cleaning gun |
||
Product Description

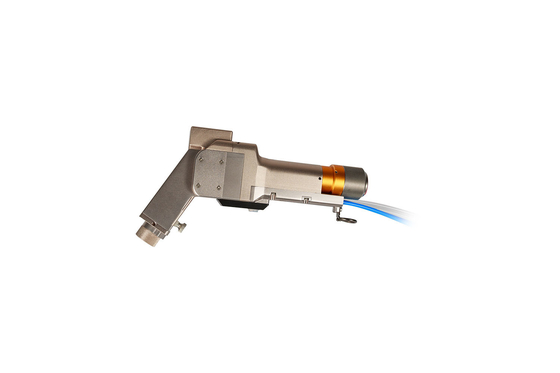

Fiber laser handheld laser cleaning head double motor type for 1000w/2000w laser power
Handheld Laser Cleaning Head Description,Features and Advantages, Applications:
The handheld laser rust removal and cleaning machine adopts laser cleaning technology, and its working principle is to use a laser beam to evaporate and detach the dirt and oxide layer on the surface of the object, thereby achieving the purpose of cleaning. By irradiating with a high-energy laser beam, the dirt and oxide layer on the surface of the object are evaporated to form a gaseous state, and finally rapidly sublimated and discharged, thereby completely removing the oil, stains, and rust layer on the surface of the object.
Traditional cleaning methods, such as sandblasting and disassembly cleaning, not only have low efficiency but also cause secondary pollution to the cleaned object. Compared to cumbersome and inefficient cleaning methods, using a handheld laser rust removal cleaning machine is not only fast and efficient, but also non secondary pollution to the cleaned object. It is also an essential tool for modern industrial cleaning.
HanWei Laser is one of the only a few supplier around the world, who can research and develop the whole set of handheld cleaning system : From Handheld cleaning gun, Laser control system, Celding parameters for various cleaning solutions:
* Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
* The control system is very easy and requires little prior knowledge on the part of the operator.
* The control system is very easy and requires little prior knowledge on the part of the operator.
* With safety lock function to ensure safety process.
* Internal structure of cleaning head with extremely simple design, easy to operate and maintenance.
* Adjustable Laser beam range: 0.5 - 50 mm.
* Laser beam scan mode: Laser Shape Type:―,○,◎,⊙,△,8.
* Independent Research and Develop all products:Laser head, Control system, Safety lock.
* Digital setting parameters in cleaning machine interface.
* Support different languages.Customized.
* All performance features can be customized to meet individual customer requirements.
The HanWei Handheld Cleaning Head with its advanced features and advantages widely used in cleaning industry such as precision instruments and meters, electronic components, home appliances, mobile communication, watches and glasses, jewelry and jewelry. Suitable for various metals or alloys such as stainless steel, carbon steel, copper, aluminum, gold, silver, chromium, nickel, titanium, tantalum, etc; It can also be used for welding between various different materials :
Specification:
| Model | HW-20-50150 |
| Handheld Head Weight | 0.7 Kg |
| Cable Length | 10m / 20m Option |
| Laser Cleaning Beam Range | 0.5 - 50mm Adjustable |
| Laser Power | Up to 2000w |
| Laser Source | Fiber Laser Source |
| Wavelength | 1064nm |
| Cleaning Parameter Setting | Touch Screen Monitor Digital Control |
| Language In Control System | Customized |
| Laser Cleaning Gun Holding Part | User-freindly comfort holding, Light in Weight |
