| Brand Name: | HanWei |
| Model Number: | HW-20-60150 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 6000 Set per year |
The company HanWei Laser Equipment Co.,Ltd is one of the only a few supplier around the world, who can research and develop,manufacturing the whole set of handheld laser welding machine : Handheld welding head → Laser control system → Wobble control system → Wire Feeding device→ Laser Source.
The Handheld Laser Welding Head with its user-friendly small size, light in weight, large welding bead advantages is very popular in the laser welding industry.
HanWei Laser Independent develop the full set handheld laser welding head and control system put on the market. The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others.
The handheld laser welding head adopt drawer type of protection lens setting for convenience of users themselves for a replacement.
The Handheld Laser Welding Head single motor wobble type with laser welding range adjustment, light weight, more depth of fusion advantages to adapt to use in different scenes.
| Model | HW-20-60150 |
| Usable Laser Power | 1500W-3000W |
| Welding Thickness | 10mm Steel |
| Welding Materials | StainlessSteel, Aluminum |
| Interface type | QBH |
| Accessible wave range | 1064nm |
| Laser Head weight | 0.7 kg |
| Laser head size | 216*287 mm |
| Robot and Automatic Welding Solution | Support |
| Laser head packing size | 39*22*29cm. |
| Laser head packing gross weight | 9kg |
| Standard single route wire feeding device packing Info | 17Kg. 70*40*65cm. |
| Double route wire feeding device packing Info | 30Kg. 79*45*70cm. |
| Usable laser source | Most of laser source |

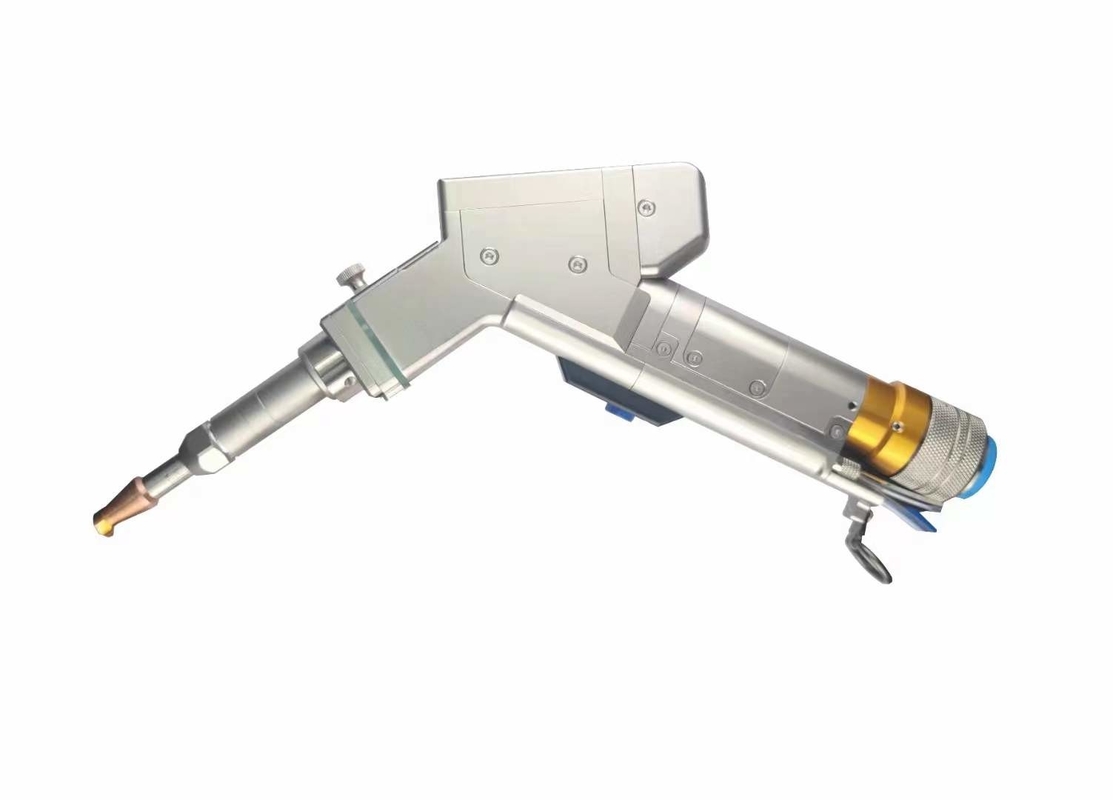

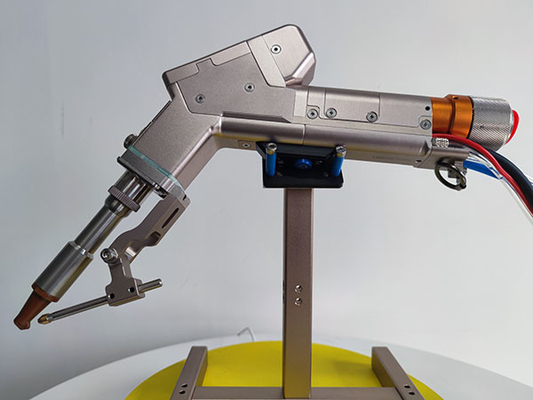

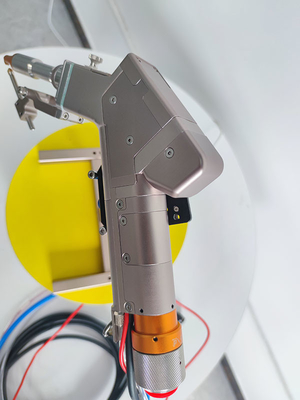

Fiber Laser Welding Head Product Show:
Paper Box Packing
Welding Sample Show

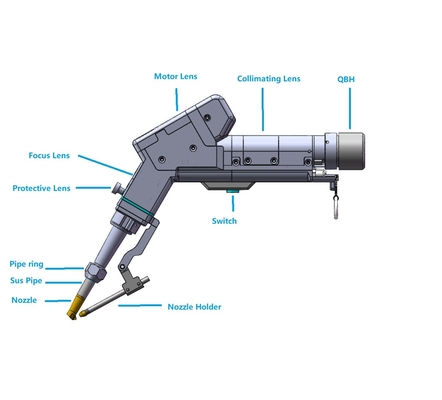

Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.
Welding Head Size
Nozzle
Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
