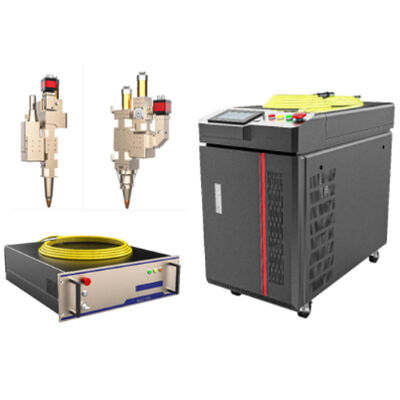

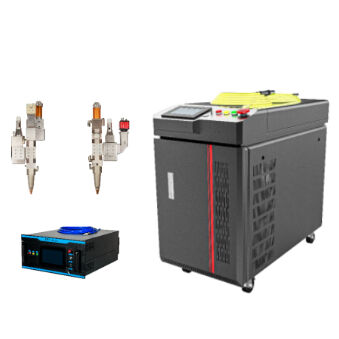

Blue Laser Hybrid Welding Machine of High Absorption and Optimal Weld Performance

Basic Properties
Place of Origin: Shenzhen, China
Brand Name: HanWei
Certification: CE
Model Number: HW-B
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Industrial Laser Welding Machine 1500w

Mold Repair 1500w laser welding machine

1500w Fiber Laser Welding Machine
Specifications
Core Diameter: 200 μm / 0.22 NA Wavelength (nm): 445nm
Head Structure: T / F/ Y Welding Materials: Copper / Gold / Silver
Laser Power: 1000W Operating Temperature (℃): 5-40
Gas Type: Co-axial / Side Gas Cooling Method: Water Cooling
Product Description

Blue Laser Hybrid Welding Machine of High Absorption and Optimal Weld Performance

The blue laser hybrid welding machine adopts short-wavelength blue laser, specially designed to solve the processing challenges of highly reflective metals such as copper, gold and silver. The blue laser energy can be rapidly absorbed by the metal surface, enabling stable formation of molten pools and avoiding welding defects caused by energy reflection. This equipment achieves higher efficiency and stability in the field of highly reflective metal welding, and is widely applied to the welding of power battery connectors, precision motor terminals and microelectronic conductors.

Blue Laser Hybrid Welding Machine of High Absorption and Optimal Weld Performance 0
Key Features
  1. Innovative Technology for Highly Reflective Metal Welding
  2. Combined Beam with Adjustable Oscillation Expands Welding Range
  3. Low Startup Threshold Improves Welding Precision
  4. Clean Welding with No Spatter
  5. Ultra-High Absorption Rate Achieves Excellent Weld Seams and Penetration Depth
Through the combined output of blue laser and infrared laser, equipped with a programmable oscillating welding head, the equipment can flexibly adjust the spot movement mode and energy distribution. The molten pool stirring effect is significantly enhanced, and the weld uniformity and filling degree are obviously improved. The combination of the combined beam and oscillation strategy enables the equipment to handle various material thicknesses and weld shapes, significantly expanding its application range.
Technical Parameters
Model HW-B
Laser Power 1000 W
Wavelength(um) 445 nm
Head Option Blue Laser Hybrid
Laser Core 50um / 100um
Head Weigh 4 Kg
Focuses Option
Laser Beam Stationary / Wobble
Cooling Method Water Cooling
Machine Size 1000*450*850mm
Power Range 10-100
Power Instability (%) ＜ 3
Core Diameter 200 μm / 0.22 NA
Applications
Blue laser has an ultra-high absorption rate for highly reflective metals such as copper, gold, and silver. The energy uniformly penetrates into the material, achieving deep penetration and uniform weld formation. The weld has high strength, smooth surface, and no porosity, meeting the requirements of high reliability and high-current applications, such as power battery busbars, precision electronic connections, and high-end conductor components.
Welding Samples
Blue Laser Hybrid Welding Machine of High Absorption and Optimal Weld Performance 1Blue Laser Hybrid Welding Machine of High Absorption and Optimal Weld Performance 2

Shenzhen Hanwei Laser Enterprise
Shenzhen Hanwei Laser Equipment Co., Ltd. offers an extensive portfolio of laser systems, covering desktop and portable models. These configurations utilize state-of-the-art fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser technologies—each meticulously engineered to cater to customers' unique demands.

The company provides tailored solutions for specific application scenarios, along with professional training and after-sales service, guaranteeing that clients fully exploit the performance potential of their laser equipment. Boasting branch offices and subsidiaries across Europe, North America, Asia, and the Middle East, Hanwei Laser has built a solid global footprint, serving clients worldwide.
Laser welding constitutes Hanwei Laser's core focus. The company is dedicated to supplying cutting-edge laser welding technologies to international laser integration enterprises, endeavoring to deliver premium welding solutions to all integrators. As one of the relatively scarce national high-tech specialized and innovative enterprises globally, it specializes in the entire industrial chain encompassing R&D, manufacturing, and distribution of various welding lasers, laser control systems, laser optical systems, and laser welding processes.

Blue laser boasts an extremely high absorption efficiency for highly reflective metals like copper, gold, and silver. Its energy permeates evenly into the material, facilitating the formation of deep-penetration and uniform welds. These welds feature high structural strength, a smooth surface finish, and are free from porosity—meeting the requirements of high-reliability and high-current applications such as power battery busbars, precision electronic connections, and high-end conductor assemblies.
Blue Laser Hybrid Welding Machine of High Absorption and Optimal Weld Performance 3 Blue Laser Hybrid Welding Machine of High Absorption and Optimal Weld Performance 4
Blue Laser Hybrid Welding Machine of High Absorption and Optimal Weld Performance 5 Blue Laser Hybrid Welding Machine of High Absorption and Optimal Weld Performance 6
