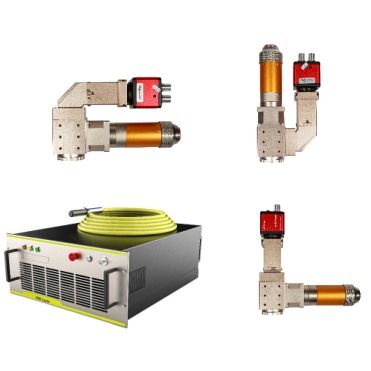

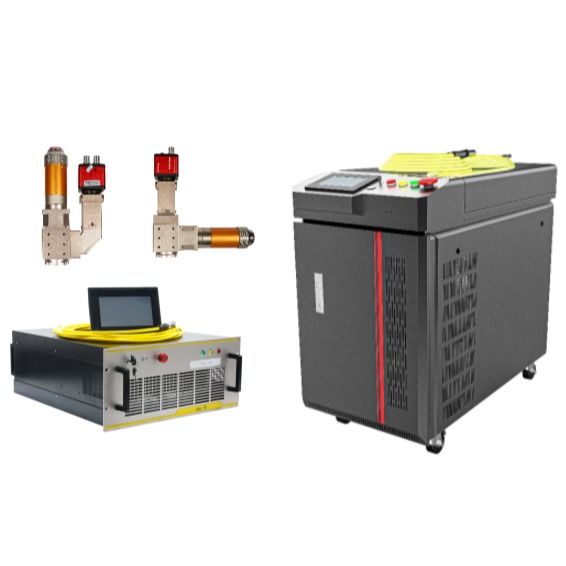

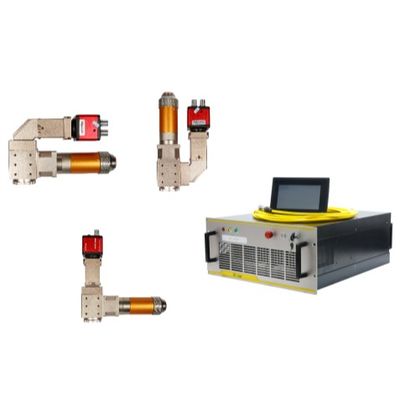

QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements

Basic Properties
Place of Origin: Shenzhen, China
Brand Name: HanWei
Certification: CE
Model Number: HW-QCW
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Industrial Laser Welding Machine 1500w

Mold Repair 1500w laser welding machine

1500w Fiber Laser Welding Machine
Specifications
Laser Power: 150W/300W Machine Size: 665*450*300 Mm
Cooling Method: Air Cooling Machine Weight: 22Kg/28Kg
Pulse Width: 0.5-50 Pulse Energy: 15J/30J
Frequency: 100 Hz/2 KHz Wavelength: 1070nm ± 10%
Power Consumption: 2 Kw/2.5 Kw Power Stability: ≤ ± 1%
Input Voltage: AC220V 50/60Hz Peak power: 1500W/3000W
High Light:

QCW fiber laser welder long pulse

,

industrial laser welding machine high peak power

,

fiber laser welder with warranty
Product Description
QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements

QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements Description:



Quasi-Continuous Wave (QCW) fiber lasers are widely recognized as ideal light sources for high-demand industrial welding processes, thanks to their long pulse width output and high peak power capability. Whether for metal spot welding, precision seam welding, or sealing welding processes that require high heat input uniformity, QCW lasers can deliver stable pulse output with high energy density, resulting in fuller weld formation and more controllable weld spots. Their pulse-tunable characteristics are particularly prominent in thin material and microstructural welding, as they not only reduce the heat-affected zone but also improve welding precision, providing reliable processing solutions for multiple industries.
QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements 0

QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements Features:

1. Advantages of QCW Fiber Lasers Meeting Long Pulse Width and High Peak Power Requirements.
2. Designed specifically to replace some YAG laser welding processes.
3. Effectively reduce maintenance costs and downtime frequency.
4. Fully independently developed from beam splitting to control systems.



QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements Technical Parameters:

Model

HW-Q-150

HW-Q-300

Input Voltage

AC220V 50/60Hz

AC220V 50/60Hz

Machine Size

665*450*300 mm

665*450*300 mm

Wavelength

1070nm ± 10%

1070nm ± 10%

Frequency

100 Hz

2 KHz

Machine Weight

22 Kg

28 Kg

Laser Power

150 W

300 W

Peak Power

1500 W

3000 W

Pulse Width

0.5-50

0.5-50

Pulse Energy

15 J

30 J

Power Stability

≤ ± 1%

≤ ± 1%

Power Consumption

2 Kw

2.5 Kw

Cooling Method

Air Cooling

Air Cooling



QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements Application:

To address the shortcomings of traditional YAG lasers in efficiency, energy consumption, and stability, this QCW laser welding machine is specifically designed and optimized for YAG replacement applications. Compared with the lamp-pumped structure of YAG lasers, QCW fiber lasers can achieve higher photoelectric conversion efficiency, more stable output energy, and a more compact equipment structure. In application scenarios such as microelectronic welding, precious metal processing, and hardware product welding, it can meet or even exceed the welding performance of YAG lasers, while improving overall processing consistency and making the production process more controllable.



Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser ranks among the world’s scarce enterprises with independent R&D capabilities for the full suite of hardware and software in high-speed laser beam splitting systems, energy splitting systems, and time splitting systems. Its product portfolio mainly encompasses ring-spot laser welders, blue laser welders, blue laser + fiber hybrid welders, diode + fiber hybrid welders, YAG + diode hybrid welders, YAG laser welders, diode laser welders, mold repair laser welders, and QCW laser welders, while also providing supporting laser welding control systems, laser welding optical systems, and related auxiliary products for laser welding peripherals.


QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements 1QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements 2QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements 3QCW Fiber Laser Welder Meeting Long Pulse Width and High Peak Power Requirements 4
