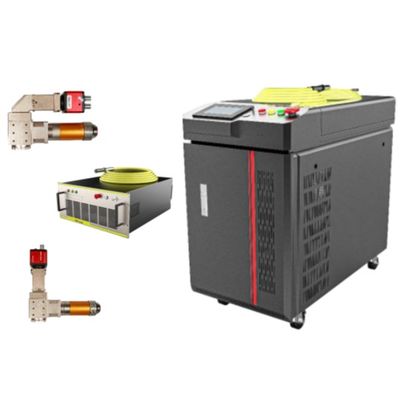

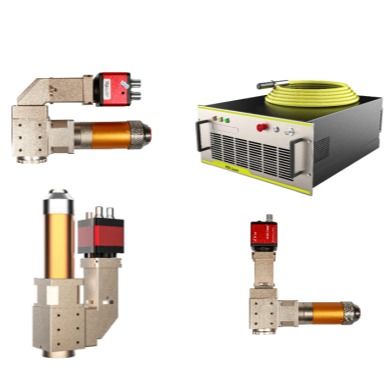

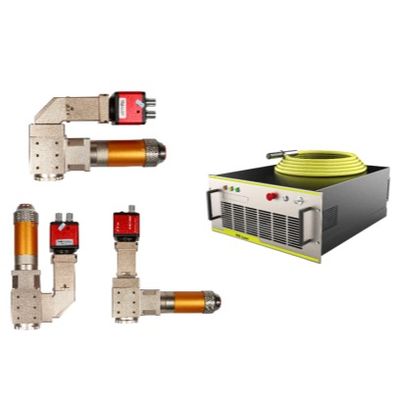

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding

Name: HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-QCW
Price: 1.00 USD
Availability: InStock

Basic Properties

Place of Origin: Shenzhen, China

Brand Name: HanWei

Certification: CE

Model Number: HW-QCW

Trading Properties

Minimum Order Quantity: 1 Set

Price: USD / Set

Payment Terms: T/T

Supply Ability: 2000 Sets / year

Industrial Laser Welding Machine 1500w

Mold Repair 1500w laser welding machine

1500w Fiber Laser Welding Machine

Specifications

Laser Power:	150W/300W	Machine Size:	665450300 Mm
Peak power:	1500W/3000W	Power Consumption:	2 Kw/2.5 Kw
Pulse Width:	0.5-50	Pulse Energy:	15J/30J
Wavelength:	1070nm ± 10%	Power Stability:	≤ ± 1%
Input Voltage:	AC220V 50/60Hz	Cooling Method:	Air Cooling
Machine Weight:	22Kg/28Kg	Frequency:	100 Hz/2 KHz
High Light:	QCW laser welding system , stable beam laser welder , copper welding laser machine

Product Description

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding Description:

Quasi-continuous wave (QCW) fiber lasers serve as an optimal option for industrial scenarios requiring long pulse durations and high peak power, including spot welding and seam welding. This product is tailor-made to substitute certain YAG laser welding applications, which can notably lower maintenance expenses and reduce the need for upkeep. The enterprise is among the rare global companies capable of independently developing a full suite of software and hardware, spanning from laser high-speed beam splitting systems, energy splitting systems to time splitting systems.

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding 0

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding Features:

1. Stable laser beam quality.

2. Compact structure with air cooling method.

3. Up to 30% electro - optical conversion efficiency, economical and environmentally friendly.

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding Technical Parameters:

Model	HW-Q-150	HW-Q-300
Input Voltage	AC220V 50/60Hz	AC220V 50/60Hz
Machine Size	665450300 mm	665450300 mm
Wavelength	1070nm ± 10%	1070nm ± 10%
Frequency	100 Hz	2 KHz
Machine Weight	22 Kg	28 Kg
Laser Power	150 W	300 W
Peak Power	1500 W	3000 W
Pulse Width	0.5-50	0.5-50
Pulse Energy	15 J	30 J
Power Stability	≤ ± 1%	≤ ± 1%
Power Consumption	2 Kw	2.5 Kw
Cooling Method	Air Cooling	Air Cooling

HanWei QCW Laser Welding System with Stable Laser Beam Quality for Copper Welding Application:

The consumer electronics industry is mainly used for welding high - precision components of consumer

electronics products.

1. Diverse product types.

2. Suitable for 3C products and precision welding.

3. Cost-effective and efficient.

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all integrators. The company is one of the few enterprises worldwide that hold both national high-tech certification and the "specialized, sophisticated, distinctive, and novel" qualification. It focuses on the full-industry-chain research, development, production, and sales of welding-dedicated lasers, laser control systems, laser optical systems, and laser welding processes.

Its product range mainly includes:

Ring-Spot laser welding machines, blue laser welding machines, blue laser + fiber hybrid welding machines, Diode + fiber hybrid welding machines, YAG + Diode hybrid welding machines, YAG laser welding machines, Diode laser welding machines, mold repair laser welding machines, QCW laser welding machines. It also offers supporting laser welding control systems, laser welding optical systems, and related auxiliary products for laser welding peripherals.

Guided by the concept of "taking R&D as the core, technology as the guarantee, and service as the support," the company has always focused on serving B-end customers (laser equipment and automation enterprises). It adheres to the service goals of "reliable quality, continuous improvement, persistent innovation, and considerate service." Hanwei consistently provides integrators with internationally advanced welding products and full-lifecycle technical services, covering component procurement, R&D and manufacturing, assembly testing, and sales support. The company has assembled outstanding talents from across China, with a team of technical professionals who have long-term experience in laser welding R&D. In particular, it has extensive theoretical and practical knowledge in key fields such as laser development, laser systems, laser power supplies, laser control, laser optical system design, and welding process research.

Hanwei’s products are widely used in industries such as new energy batteries, automobiles, auto parts, electronic circuits, optical fiber communication devices, mobile phones, home appliances, kitchen and bathroom hardware, precision instruments, meters, gold and silver jewelry, medical devices, solar energy, eyewear manufacturing, and the motor industry. In many of these fields, a number of its products offer irreplaceable welding performance.
