RS Series - Ring & Spot Laser Welder with 380v±10% 50/60Hz for Aluminum Battery
| Laser Power: | Up To 6000W | Laser power stability: | ≤ 3% |
| Operating Voltage: | 380v±10% 50/60Hz | Wavelength: | 1080 Nm ±3 |
| Guide Beam(mW): | ≥0.5 | Connection: | QBH |
| Fiber Core(um): | 50/100 | Frequency(Khz): | 1~100 |
| Cooling Method: | Water Cooling | Fiber Cable Length: | 10m (Customized) |
| Working mode: | CW/QCW/PWM | ||
| High Light: | industrial laser welder for aluminum,RS series ring spot welder,380v laser welding machine |
||

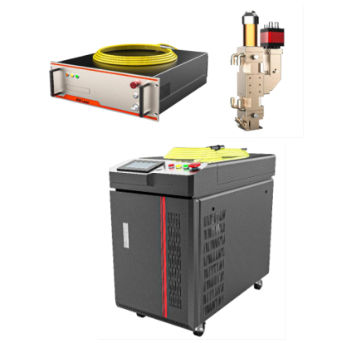

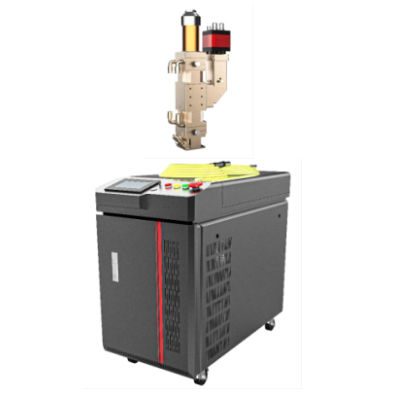

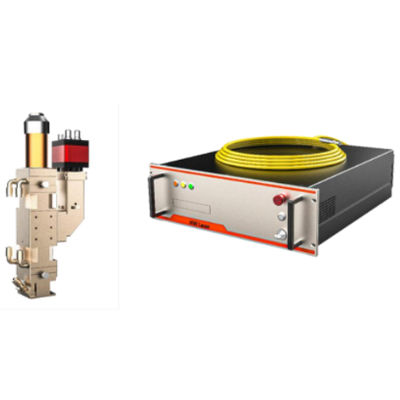

The full-featured Ring & Spot Laser Welding Machine is a self-developed device featuring adjustable energy levels for both its inner spot and outer ring laser beams. It supports multiple output modes including Gaussian beam (single inner spot), ring laser beam, and hybrid mode that combines inner spot and outer ring beams. Operators can flexibly switch between these modes according to specific welding process requirements.
This advanced laser system meets the demands of high-quality laser welding for complex processes, significantly enhancing both welding quality and operational efficiency.
- Complete in-house development from laser source to control system and welding head
- Customizable power ratio and fiber core diameter ratio
- Produces stable weld formation with excellent consistency
- Equipped with waveform card supporting QCW (user-defined waveforms), PWM modulation, and CW modes
- Built-in laser power ramp-up/ramp-down functionality
| Model | HW-DH-2Kw+2Kw | HW-DH-3Kw+3Kw | HW-DH-2Kw+4Kw |
|---|---|---|---|
| Laser Power | 4000 W | 6000 W | 6000 W |
| Working mode | CW/QCW/PWM | CW/QCW/PWM | CW/QCW/PWM |
| Wavelength | 1080 nm ±3 | 1080 nm ±3 | 1080 nm ±3 |
| Frequency(Khz) | 1-100 | 1-100 | 1-100 |
| Guide Beam(mW) | ≥0.5 | ≥0.5 | ≥0.5 |
| Connection | QBH | QBH | QBH |
| Fiber Core(um) | 50/100 | 50/100 | 50/100 |
| Fiber Cable Length | 10m (Customized) | 10m (Customized) | 10m (Customized) |
| Operating Voltage | 380v±10% 50/60Hz | 380v±10% 50/60Hz | 380v±10% 50/60Hz |
- Working Humidity: ≤70%
- Machine Weight: 100 Kg
- Cooling Method: Water Cooling
- Cooler Temp: 25℃ (28℃ Summer)
- Working Temp: 5~40℃
- Machine Dimension: 1000*450*850mm
- Chiller Electric: ≥12 KW
- Computer, Communication, Consumer Electronics (3C Industry)
- Aluminum, Copper, and Stainless Steel High Quality Welding
- New Energy Resources - Battery Manufacturing
Shenzhen Hanwei Laser is a national high-tech enterprise specializing in laser welding technologies. The company focuses on full-industry-chain research, development, and production of welding-dedicated lasers, control systems, optical systems, and welding processes.
- Ring-Spot laser welding machines
- Blue laser welding machines
- YAG + Diode composite welding machines
- YAG laser welding machines
- Diode laser welding machines
- Blue laser + fiber composite welding machines
- Diode + fiber composite welding machines
- Mold repair laser welding machines
- QCW laser welding machines
The company also provides supporting equipment including laser welding control systems, optical systems, and relevant peripheral accessories.
