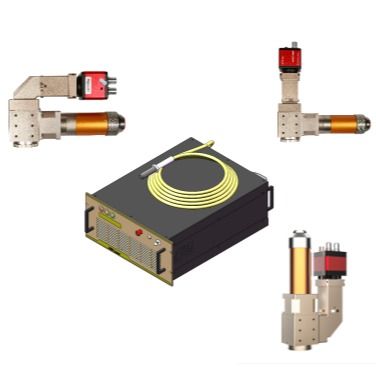

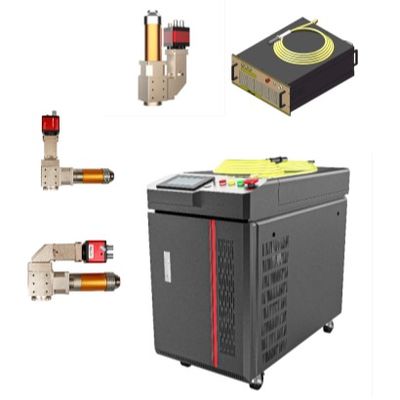

HW QCW Laser Welder with Exclusive QCW / PWM / CW Light Emission Modes for Aluminum

HW QCW Laser Welder with Exclusive QCW / PWM / CW Light Emission Modes for Aluminum

Brand Name:	HanWei
Model Number:	HW-Q-150/HW-Q-300
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

Laser Power:

150W/300W

Peak Power:

1500W/3000W

Input Voltage:

AC220V 50/60Hz

Pulse Width:

0.5-50

Pulse Energy:

15J/30J

Frequency:

100 Hz/2 KHz

Storage Temperature:

-10 ~ +60 ℃

Power Consumption:

2 Kw/2.5 Kw

Operating Temperature:

+5 ~ +40℃

Machine Weight:

22Kg/28Kg

Power Stability:

≤ ± 1%

Machine Size:

665*450*300 Mm

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Product Description

HW QCW Laser Welder with Exclusive QCW / PWM / CW Light Emission Modes for Aluminum

Quasi-continuous wave (QCW) fiber lasers act as an ideal solution for industrial use cases that call for long pulse durations and high peak power—spot welding and seam welding included. This equipment is purpose-built to take the place of specific YAG laser welding applications, bringing about a notable reduction in both maintenance expenses and frequency. Our firm is among the small number of global enterprises able to independently develop all-in-one software and hardware solutions, which encompass laser high-speed beam splitting systems, energy splitting systems, and time splitting systems.

Key Features

Consistent beam quality across entire power range
Multiple output modes including QCW (quasi-continuous wave), PWM (pulse width modulation), and CW (continuous wave) with built-in soft rise/fall functions
High electro-optical conversion efficiency up to 30% for cost-effective, environmentally friendly operation
Excellent output power/energy stability
High peak power capable of processing reflective materials like copper and aluminum
Compact design with forced air cooling system

Technical Specifications

Model	HW-Q-150	HW-Q-300
Input Voltage	AC220V 50/60Hz	AC220V 50/60Hz
Machine Size	665450300 mm	665450300 mm
Pulse Width	0.5-50	0.5-50
Frequency	100 Hz	2 KHz
Machine Weight	22 Kg	28 Kg
Laser Power	150 W	300 W
Peak Power	1500 W	3000 W
Central Wavelength	1080±3mm	1080±3mm
Cooling Method	Air Cooling	Air Cooling
Power Stability	≤ ± 1%	≤ ± 1%
Power Consumption	2 Kw	2.5 Kw
Pulse Energy	15 J	30 J

Applications

High-precision component welding in consumer electronics
Versatile processing for diverse product types
Cost-effective solution with high efficiency
Ideal for 3C products and precision welding applications

Shenzhen Hanwei Laser Enterprise

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all integrators. As a nationally certified high-tech enterprise with "specialized, sophisticated, distinctive, and novel" recognition, we specialize in full-industry-chain R&D, production, and sales of welding-specific lasers and related systems.

Product Portfolio

Ring-Spot laser welding machines
Blue laser welding machines
Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
YAG and Diode laser welding machines
Mold repair laser welding machines
QCW laser welding machines
Supporting control systems, optical systems, and peripherals

With a philosophy centered on R&D, technological excellence, and customer service, we serve B2B clients with reliable quality, continuous innovation, and comprehensive lifecycle support. Our team of experienced professionals possesses deep expertise in laser development, systems design, power supplies, control technology, optical engineering, and welding processes.

Hanwei products are widely used across industries including new energy batteries, automotive, electronics, communications, medical devices, jewelry, and more, delivering unmatched welding performance in many applications.
