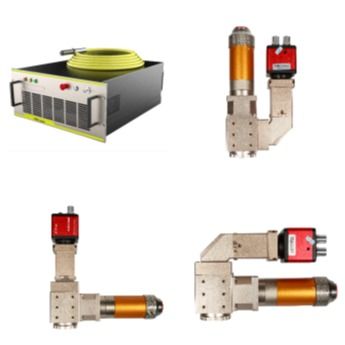

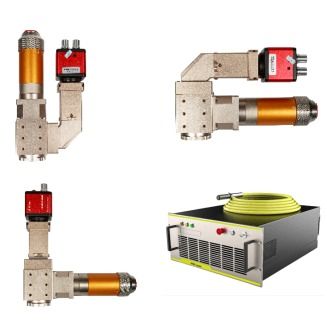

QCW Laser Welding Head with Forced Air Cooling System for High-Reflectivity Aluminum
| Model: | HW-36-XXXXXX-Y-QBH | Laser Source: | QCW Laser Source |
| Collimating length: | 80 / 100 / 120 / 150 / 200 | Focus length: | 150 / 200 / 250 / 350 |
| Interface type: | QBH | Wavelength: | 1064nm |
| Head Type: | Customized | Laser Power: | ≤600W |
| Net weight: | 1.1Kg | ||
| High Light: | QCW laser welding head with forced cooling,fiber laser welding head for aluminum,high-reflectivity aluminum laser welding head |
||
Quasi-continuous wave (QCW) fiber lasers stand as an ideal solution for industrial scenarios that demand long pulse durations and high peak power—such as spot welding and seam welding. This equipment is specially engineered to substitute for specific YAG laser welding applications, slashing both maintenance costs and frequency to a significant extent. Our enterprise ranks among the handful of global companies capable of independently developing comprehensive software and hardware solutions, which cover laser high-speed beam splitting systems, energy splitting systems, and time splitting systems.
- High electro-optical conversion efficiency up to 30% for cost-effective, environmentally friendly operation.
- Multiple output modes including QCW (quasi-continuous wave), PWM (pulse width modulation), and CW (continuous wave) with built-in soft rise/fall functions.
- Consistent beam quality across entire power range.
- High peak power capable of processing reflective materials like copper and aluminum.
- Compact design with forced air cooling system.
- Excellent output power/energy stability.
| Model | HW-36-XXXXXX-Y-QBH |
|---|---|
| Head Type |
Customized |
| Collimating Length |
80 / 100 / 120 / 150 / 200 |
| Laser Source |
QCW laser source |
|
Net Weight |
1.1 Kg |
| Interface Type | QBH |
| Laser Power | ≤600 W |
|
Focus Length |
150 / 200 / 250 / 350 |
| Wavelength | 1064nm |
- Economically efficient.
- Diversity of species.
- Suitable for 3C products and precision welding applications.
Shenzhen Hanwei Laser is dedicated to enabling all integrators to access world-class laser welding technology. As a nationally accredited high-tech enterprise honored with the "specialized, sophisticated, distinctive, and novel" title, we focus on the full-industry-chain research and development, manufacturing, and marketing of lasers specifically designed for welding and their associated systems.
- QCW laser welding machines
- Ring-Spot laser welding machines
- Blue laser welding machines
- YAG and Diode laser welding machines
- Mold repair laser welding machines
- Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
- Supporting control systems, optical systems, and peripherals
Guided by a philosophy that prioritizes R&D, technological prowess, and customer support, we cater to B2B clients with dependable quality, ongoing innovation, and all-round lifecycle assistance. Our team of seasoned professionals boasts profound expertise in laser development, system design, power supply technology, control systems, optical engineering, and welding procedures.
Hanwei’s product portfolio finds extensive application across diverse sectors, such as new energy batteries, automotive manufacturing, electronics, telecommunications, medical equipment, and jewelry craftsmanship. In numerous application scenarios, these products consistently deliver unparalleled laser welding performance.
