Aluminium Laser Welding Machine
Created with Pixso.

HW High Electrical Conversion Efficiency Diode Laser Welding Machine for Plastic Industry

name

HW High Electrical Conversion Efficiency Diode Laser Welding Machine for Plastic Industry

Brand Name: HanWei
Model Number: HW-D
MOQ: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Model:
HW-D
Laser Power:
200W - 1000W
Wavelength:
915nm ±5
Fiber Core(um):
100/200 Um
Connection:
SMA905 / QBH
Laser Head Structure:
T / F/ Y 36 Series
Cooling Method:
Air/Water Cooling
Cooling Mode:
CW / QCW / PWM With Timing Control
Laser Source Size:
525*430*225 Mm
Packaging Details:
Export Plywood Packing
Supply Ability:
2000 Sets / year
Highlight:

high efficiency diode laser welder

,

plastic industry laser welding machine

,

aluminium laser welder with warranty

Product Description
HW High Electrical Conversion Efficiency Diode Laser Welding Machine for Plastic Industry
Hanwei Fiber Diode laser offers higher electrical conversion efficiency and more compact size compared to YAG lasers. Equipped with a newly developed source control system, they provide more competitive pricing. Due to the larger beam spot produced by Diode lasers and even distribution of beam energy, these devices are particularly suitable for plastic welding, soldering, and thin metal plate welding operations.
HW High Electrical Conversion Efficiency Diode Laser Welding Machine for Plastic Industry 0
Key Features
  • Miniaturized structure with high electrical conversion efficiency
  • Long service life with almost no consumables
  • Even distribution of beam energy
  • Supports various laser working modes: CW / QCW / PWM with built-in laser power ramp-up/ramp-down functionality
Technical Specifications
Model HW-D
Laser Power 200W - 1000W
Wavelength 915nm ±5
Fiber core(um) 100/200 um
Connection SMA905 / QBH
Laser Head Structure T / F/ Y 36 Series
Cooling Mode Air/Water Cooling
Working Mode CW / QCW / PWM with timing control
Laser source size 525*430*225 mm
Primary Applications
  • Semiconductor, Computer, Communication, Consumer Electronics (3C Industry)
  • Plastic welding industry

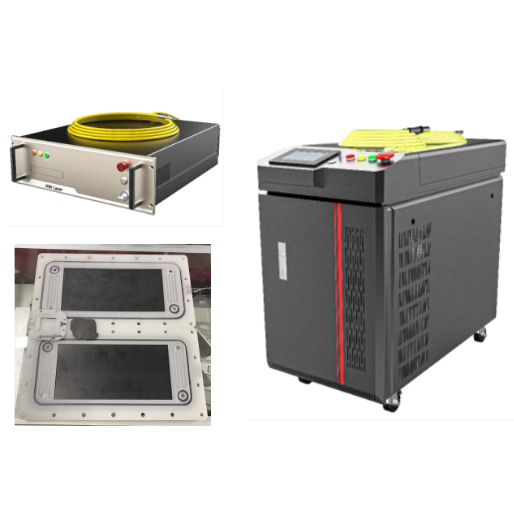

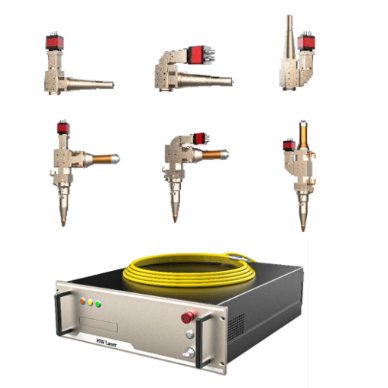

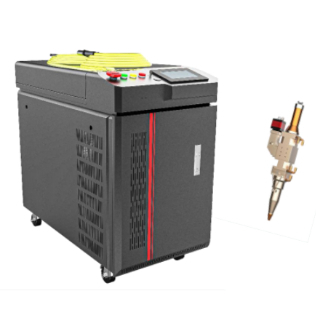

HW High Electrical Conversion Efficiency Diode Laser Welding Machine for Plastic Industry 1 HW High Electrical Conversion Efficiency Diode Laser Welding Machine for Plastic Industry 2 HW High Electrical Conversion Efficiency Diode Laser Welding Machine for Plastic Industry 3 HW High Electrical Conversion Efficiency Diode Laser Welding Machine for Plastic Industry 4
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As a certified national high-tech and "specialized, sophisticated, distinctive, and novel" enterprise, we focus on full-industry-chain R&D, production, and sales of welding-dedicated lasers and related technologies.
Our Product Portfolio Includes:
  • Ring-Spot laser welding equipment
  • Blue laser welding equipment
  • Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
  • YAG and Diode laser welding equipment
  • Mold repair laser welding equipment
  • QCW laser welding equipment
With a team of technical experts specializing in laser welding R&D, we serve industries including new energy batteries, automotive, electronics, medical devices, and more. Our products deliver irreplaceable welding performance across multiple applications.
