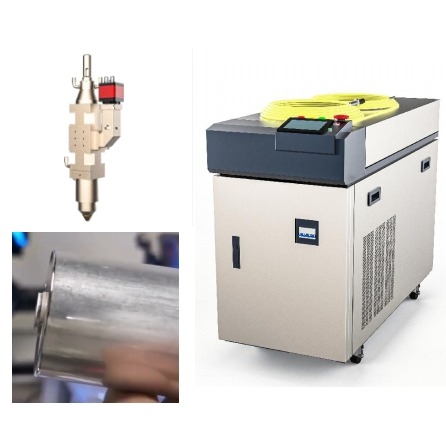

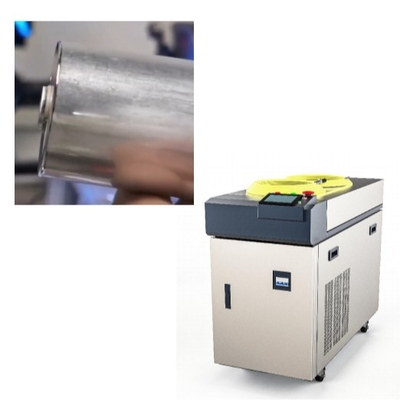

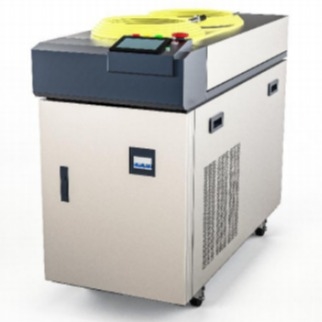

HanWei YAG Energy Negative-Feedback Laser Welding Machine for Cylindrical Battery

Name: HanWei YAG Energy Negative-Feedback Laser Welding Machine for Cylindrical Battery
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-Y-8/25/80/160/300/500
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-Y-8/25/80/160/300/500
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

Model:

HW-Y-8/25/80/160/300/500

Input Electric:

AC220 50/60 Hz / AC380 50/60 Hz

Wavelength:

1064nm

Output Power:

8/25/80/160/300/500W

Pulse Energy:

5J /25J /50J / 70/100J

Pulse Width:

15 Ms

Frequency:

30/100 Hz

Power Stability:

± 2.5 / ± 3.0

Weight:

100/170/180/220/240 Kg

Working Mode:

Pulse

Cooling Mode:

Air / Water

Equipmen:

1/1.2/3/6/12/16 Kw

Dimension:

955*415*870 Mm/ 1175mm×515mm×980mm/ 1360mm×630mm×1120mm

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

YAG laser welding machine for cylindrical battery

aluminium laser welding machine with negative feedback

energy negative feedback laser welding machine

Product Description

HanWei YAG Energy Negative-Feedback Laser Welding Machine for Cylindrical Battery

This advanced laser welding system features fiber optic conductive output capable of single and multiple optical path configurations, with flexible compatibility across various workbenches. The innovative optical system design incorporates imported quartz optical lenses with foreign coating technology, delivering high damage resistance threshold and stable light speed. The system comes standard with our proprietary PID adaptive power feedback system.

Key Features

Fiber optic transmission enables energy and time splitting capabilities
Integrated PID adaptive power feedback technology ensures consistent welding results throughout operation
Proprietary optical design with imported optical lenses provides high damage resistance and stable light speed

Technical Specifications

Model	HW-Y-8	HW-Y-25	HW-Y-80	HW-Y-160	HW-Y-300	HW-Y-500
Input Electric	AC220 50/60 Hz	AC220 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz
Wavelength	1064nm	1064nm	1064nm	1064nm	1064nm	1064nm
Output Power	8 W	25 W	80 W	160 W	300 W	500 W
Pulse Energy	5 J	25 J	50 J	50 J	70/100 J	70/100 J
Pulse width	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms
Frequency	30 Hz	30 Hz	100 Hz	100 Hz	100 Hz	100 Hz
Power Stability	± 2.5	± 2.5	± 3.0	± 3.0	± 3.0	± 3.0
Working Mode	Pulse	Pulse	Pulse	Pulse	Pulse	Pulse
Cooling mode	Air	Air	Water	Water	Water	Water
Weight	100 Kg	100 Kg	170 Kg	180 Kg	220 Kg	240 Kg
Equipment	1 Kw	1.2 Kw	3 Kw	6 Kw	12 Kw	16 Kw
Dimension	955415870 mm		1175mm515mm980mm		1360mm630mm1120mm

Applications

Optical communication components, USB connectors, mobile phone accessories, 18650 battery caps, battery lugs, electrical connectors, hardware components, kitchen and bathroom fixtures, jewelry manufacturing, elevator panels, household appliances, motor components, corrugated pipes, battery production, solar energy applications, optical communication enclosures, and aviation industry components.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As one of the few companies globally certified as both a national high-tech enterprise and a "specialized, sophisticated, distinctive, and novel" enterprise, we focus exclusively on full-industry-chain R&D, production, and sales of welding-dedicated lasers, control systems, optical systems, and related technologies.

Product Portfolio

Our comprehensive product line includes: Ring-Spot laser welding equipment, blue laser welding systems, blue laser + fiber hybrid welders, Diode + fiber hybrid welders, YAG + Diode hybrid welders, YAG laser welders, Diode laser welders, mold repair laser welders, and QCW laser welders. We also provide compatible laser welding control systems, optical systems, and peripheral support products.

Company Philosophy

Guided by the principle of "R&D as the core, technology as the guarantee, and service as the support," Hanwei Laser serves B2B customers including laser equipment firms and automation companies. Our service objectives emphasize reliable quality, continuous improvement, persistent innovation, and thoughtful support. We provide integrators with cutting-edge international welding products and comprehensive technical support throughout the entire process from component sourcing to after-sales service.

Technical Expertise

Our team of technical experts possesses deep expertise in lasers, laser systems, power supplies, control systems, optical design, and welding process research. This extensive theoretical knowledge and practical experience enables us to deliver superior solutions across multiple industries.

Industry Applications

Hanwei Laser products are widely used in new energy batteries, automotive, auto parts, electronic circuits, fiber optic communication devices, mobile phones, home appliances, kitchen and bathroom hardware, precision instruments, measuring tools, jewelry, medical devices, solar energy, eyewear, and motor industries. Our solutions provide irreplaceable welding performance in many of these applications.
