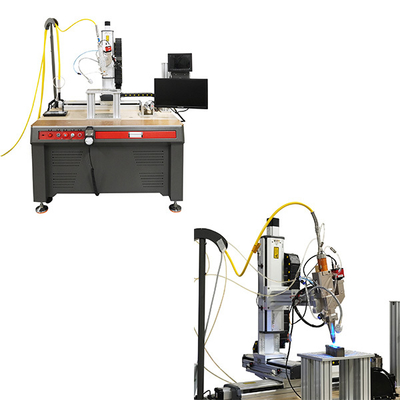

SEALING AND WELDING OF CYLINDRICAL BATTERIES LASER WELDING MACHINE

Name: SEALING AND WELDING OF CYLINDRICAL BATTERIES LASER WELDING MACHINE
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-DH
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei Laser
Model Number:	HW-DH
MOQ:	1
Price:	USD
Payment Terms:	T/T
Supply Ability:	600 Set Per Year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Laser Model:

Laser Spot And Circular Beam

Laer Power:

3000 - 6000w

Laser Head:

HW-DH

Control System:

HW-AMB Laser

Wavelength:

1064-1080 Nm

Laer Head Connection:

QBH

Total Weight:

900 Kg

Welding Mode:

Continuous/QCW

Color:

Customized

Safety:

High

Application:

Automotive, Battery, Electronic Industry

Type:

Industrial Laser Welding Machine

Electrical Input Voltage:

380v 50Hz / 60Hz

Packaging Details:

Paper Packing or Wooden Case

Supply Ability:

600 Set Per Year

Product Description

HW-AMB-ECO laser welding solution is an advanced laser welding technology, whose core principle is to use an outer ring laser beam and an inner spot laser beam together at the same time to achieve more uniform thermal distribution and higher welding quality.

Traditional laser welding often encounters various problems when the local heat of workpiece is too high, such as welding deformation, porosity, cracks... The HW-AMB is like a thoughtful designer, optimizing the heat distribution, multi-point heating, uniform distribution, low welding stress, and the workpiece is not easily deformed.The welding is beautiful and firm, without cracks or pores. Both the weld strength and surface appearance deserve the word 'high-end'.

HW-AMB lasers can provide more uniform and stable welding effects. The outer ring beam can preheat the workpiece and stabilize the molten pool, while the central spot beam performs deep penetration welding to obtain a weld seam without pores and splashes.

Features And Advantages

1	Less Spatter - The stabilization of the weld pool virtually eliminates spatter. Absorb more laser internally in keyhole and weld pool of work-piece.
2	High Welding Quality - high-quality weld seams which ensure high strength with no pores, seam collapse, cracks or end scratches.
3	Fast Welding - High efficiency.
4	More Throughput - Increased productivity - maximizes uptime and significantly reduces rework of welded parts.
5	Lower operating costs - benefit from lower machine down-times, less post-processing, fewer rejects and very high protective glass resistance.
6	Maximum application flexibility.
7	Easy to operate and maintenance.
8	Touch screen - digital parameter setting in monitor.
9	Language in English as standard. (Support Customized Language in Controller)
10	Laser beam size adjustable 0~5mm according to welding requirements.
11	Inside of laser head with simple structure and high sealing performance.
12	Extremely durable lens.Drawer type mirror holder - Easy for replacing.
13	High performance laser welding head with laser source and controller.
14	Suitable for various automation supporting solutions.
15	Competitive Quotation.

Specification

Model	HW-DH-ECO-MP	Model	HW-DH-ECO-HP
Laser Source	HW-DH-Middle Power	Laser Source	HW-DH-High Power
Laser Beam	Ring and Spot	Laser Beam	Ring and Spot
Laser Core	50um / 100um	Laser Core	50um / 100um
Laser Power	Middle Power	Laser Power	High Power
Laser power stability	≤ 3%	Laser power stability	≤ 3%
Laser power adjustable	10%~100%	Laser Power adjustable	10%~100%
Laser output frequency	≤ 20 Khz	Laser output frequency	≤ 20 Khz
Cooling Method	Water Cooling	Cooling Method	Water Cooling
Controller system	HW-AMB	Controller system	HW-AMB
Laser Head	HW-AMB-36	Laser Head	HW-AMB-36
Camera and Monitor	Welding process	Camera and Monitor	Welding process
X axis travel	Option	X axis travel	Option
Y axis travel	Option	Y axis travel	Option
Z axis travel	Option	Z axis travel	Option
Rotary axis travel	Option	Rotary axis travel	Option
Mechanical Software	HW Laser	Mechanical Software	HW Laser
Display screen	HW Laser	Display screen	HW Laser
Machine Size	875531849mm	Machine Size	875531849mm
Machine Weight	150 Kg	Machine Weight	200 Kg
Ambient Temperature	5~40℃	Ambient Temperature	5~40℃
Ambient Humidity	30%RH~70%RH	Ambient Humidity	30%RH~70%RH
Rated Input Voltage	380v 50/60Hz	Rated Input Voltage	380v 50/60Hz
Power Consumption	≤ 20Kw	Power Consumption	≤ 30Kw

Sample Show

Product Overview

SEALING AND WELDING OF CYLINDRICAL BATTERIES LASER WELDING MACHINE 5
