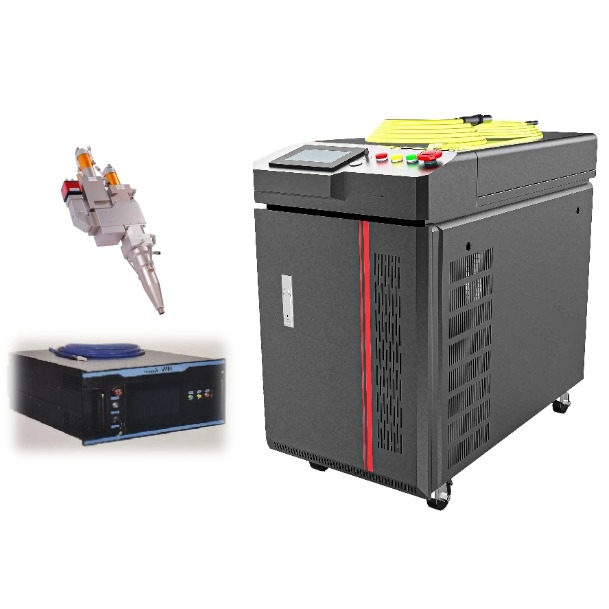

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength

Basic Properties
Place of Origin: Shenzhen, China
Brand Name: HanWei
Certification: CE
Model Number: HW-B
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Industrial Laser Welding Machine 1500w

Mold Repair 1500w laser welding machine

1500w Fiber Laser Welding Machine
Specifications
Laser Power: 1000W Core Diameter: 200 μm / 0.22 NA
Welding Materials: Copper / Gold / Silver Cooling Method: Water Cooling
Wavelength (nm): 445nm Connection: D80 / QBH
Head Structure: T / F/ Y Operating Temperature (℃): 5-40
Power Stability: ± 0.5 % Gas Type: Co-axial / Side Gas
High Light:

1000W blue laser welding machine

,

445nm industrial laser welder

,

high-efficiency hybrid welding machine
Product Description

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength



1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Description:

Hanwei's blue laser welding machine, developed in parallel with top-tier products from Europe, America, and Japan, integrates independently innovated core technologies. These encompass a proprietary blue laser source, a specialized blue laser control system, and a series of dedicated blue laser welding heads—innovations that mark a new era in laser welding for highly reflective materials.

Engineered specifically for welding reflective metals like copper, silver, and gold, this system leverages the unique ultra-high absorption characteristics of the blue laser spectrum. Reflective materials absorb over 70% of blue wavelengths, bringing about notable advantages in processing high-reflectivity substrates: it allows for spatter-free operation, exceptional stability, superior weld quality, and the pioneering capability to achieve double-sided formation through single-sided welding.


1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 0



1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Features:

1.Self-developed, designed and manufactured the complete chain from laser source,control system and laser welding head.

2.Post-welding surfaces exhibit smoothness, fullness, and an aesthetically refined appearance.
3.The welding process generates minimal spark spatter while delivering high-quality welds with exceptional consistency. 4.Used for welding materials with high reflectivity to laser such as copper, gold, silver, etc.



1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Technical Parameters:

Model

HW-B

Laser Power

1000 W

Wavelength(um)

445 nm

Pulse Rising Time (μs)

＜ 20

Laser Beam

Stationary / Wobble

Head Weight

4 Kg

Machine Size

1000*450*850mm

Laser Core

50um / 100um

Cooling Method

Water Cooling

Head Option

Blue Laser Hybrid

Modulation Frequency (Hz)

1-10000

Power Stability

± 0.5 %

Core Diameter

200 μm / 0.22 NA



1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Application:

1.New Energy Resources - Battery Busbar with Copper or Aluminium.
2.Computer,Communication,Consumer Electronics - 3C Industry.

3.Semiconductor Industry.
4.Automobile industry.
5.Jewelry industry.

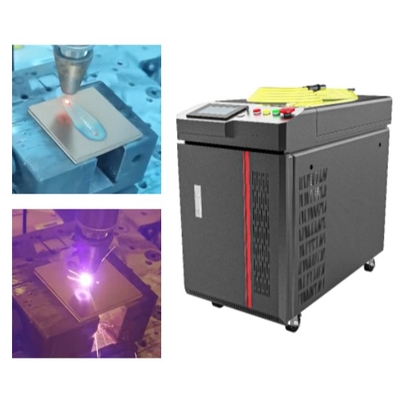

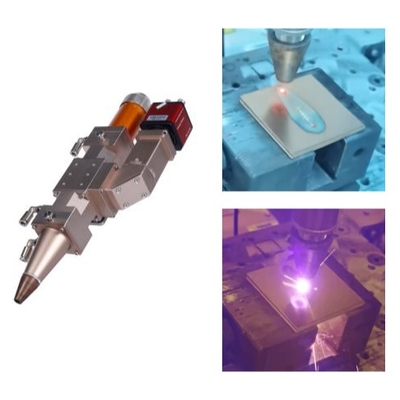

1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength Sample:

   1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 1       1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 2
1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 3 1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 4



Shen Zhen HanWei Laser Enterprise and Feature:

Founded in 2016 and based in Shenzhen, Hanwei Laser Equipment Co., Ltd. is a national high-tech enterprise honored as "specialized, sophisticated, distinctive, and novel"—one of the few global enterprises of its kind. With a team of 50 committed employees, the company focuses on the entire laser welding industry chain, specializing in the research and development, production, and sales of various welding lasers, laser control systems, laser optical systems, and laser welding technologies.





Hanwei Laser is dedicated to providing cutting-edge laser welding technology and high-quality equipment to international laser integration companies. Its product range includes both desktop and portable laser devices, integrating advanced technologies such as fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser—all customized to meet customers' unique needs. Additionally, the company offers tailored solutions for specific applications, as well as training and support services, ensuring that clients can fully leverage the capabilities of their laser systems.





Adhering to the mission of making world-class welding technology available to all integrators, Hanwei Laser has built a strong global presence. It operates branches and subsidiaries across Europe, North America, Asia, and the Middle East, serving clients worldwide.



1000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 51000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 61000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 71000W High-Efficiency Blue Laser Hybrid Welding Machine with 445 nm Wavelength 8
