Handheld Three-in-One Laser Welder , 3 In 1 Handheld Laser Welding Cleaning Cutting Machine

Name: Handheld Three-in-One Laser Welder , 3 In 1 Handheld Laser Welding Cleaning Cutting Machine
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-20-60150
Price: 1.00 USD
Availability: InStock

Basic Properties

Place of Origin: Shenzhen. China

Brand Name: HanWei

Certification: CE

Model Number: HW-20-60150

Trading Properties

Minimum Order Quantity: 1 Set

Price: USD / Set

Payment Terms: T/T

Supply Ability: 2000 Sets / year

Stainless Steel Laser Welding Machine

3-in-1 Laser Welding Machine

Aluminium Alloy Laser Welding Machine

Specifications

Welding Laser Beam Size:	0-5mm Adjustable	Cleaning Laser Beam Size:	0-50mm Adjustable
Handheld Laser Gun Weight:	0.7 Kg	Wire Feeding Device:	Standard Type : 0.8&1.0&1.2&1.6mm Wire
Welding Materials:	Steel / Stainless Steel / Aluminium	Laser Power:	Up To 3000W For Welding And 2000W For Cleaning
Handheld Laser Gun Materials:	Aluminium Alloy & Stainless Steel	Double Route Wire Feeder:	Option ( Same Time Double Route Feeding )
Welding parameter storage:	30 Kinds Of Different Welding Parameter Save
High Light:	Cutting Handheld Laser Welder , 3 in 1 laser welding cleaning cutting machine , 3 in 1 handheld laser welding cleaning cutting machine

Product Description

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions Description:

The Handheld Single-Motor Triple-Function Apparatus represents a significant leap forward in the field of portable multi-purpose tools. Driven by a single yet powerful motor, this device combines three essential functions—welding, cutting, and cleaning—all neatly housed in an ergonomically crafted, streamlined handheld shell.

In terms of welding, it precisely controls amperage and voltage to generate a stable arc, enabling strong, accurate welds on various materials like steel, stainless steel, and aluminum. For cutting tasks, a focused high-intensity beam penetrates materials of different thicknesses at adjustable speeds and depths, ensuring clean, efficient cuts. In cleaning mode, it draws in cleaning agents or water and transforms them into a powerful, adjustable high-pressure spray via a flexible nozzle, effectively removing rust, dirt, and contaminants. This apparatus exhibits exceptional versatility, making it suitable for a wide range of environments—including workshops, construction sites, and industrial maintenance areas—and excels in all three core functions.

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions Features:

Product Name: Fiber Laser Three-in-One Machine
Handheld Laser Gun Weight: 0.7kg
Laser Power: Up to 3000W for welding and 2000W for cleaning
Laser Beam Form: Line “一”
Welding Materials: Steel / Stainless Steel / Aluminum
Cooling method: Water Cooling
Standard Focus length: 60 and 150mm standard Focus length adjustable
Welding Laser Beam Size: 0-5mm Adjustable
Cleaning Laser Beam Size: 0-50mm Adjustable
Laser Head Connection: QBH
Gas: Argon / Nitrogen

The Handheld Single-Motor Three-Function Device emerges as a superior option for metal processing, machinery maintenance, and surface pre-treatment in workshops and manufacturing facilities. It employs a maximum power of 3000W for welding and 2000W for cleaning, enabling it to manage steel, stainless steel, and aluminum materials. The laser beam features a linear form and connects via a QBH interface, with a requirement for argon or nitrogen gas.

This handheld laser device, tipping the scales at 0.7 kilograms, is equipped with an adjustable standard focal length ranging from 60 to 150mm. Furthermore, it offers adjustable laser beam diameters for both welding and cutting processes. The welding beam diameter can be modified within 0 to 5mm, while the cleaning beam diameter is adjustable from 0 to 50mm. To ensure efficient heat dissipation during operation, the machine incorporates a water-cooling system, which aids in sustaining stable performance and prolonging its service life.

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions Technical Parameters:

Product Name	Handheld Single Motor Three-in-One Machine
Laser Power	Up to 3000W for welding and 2000W for cleaning
Handheld Laser Gun Weight	0.7 KG
Cleaning Beam Form	Line " 一 "
Standard Focus length	60 and 150mm standard Focus length adjustable
Wire Feeding Device	Standard type : 0.8&1.0&1.2&1.6mm wire
Double Route Wire Feeder	Option (Same time double route feeding)
Welding Laser Beam Size	0-5mm Adjustable
Cleaning Laser Beam Size	0-50mm Adjustable
Fiber Connector	QBH
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Parameter Save	30 kinds of different welding parameter save

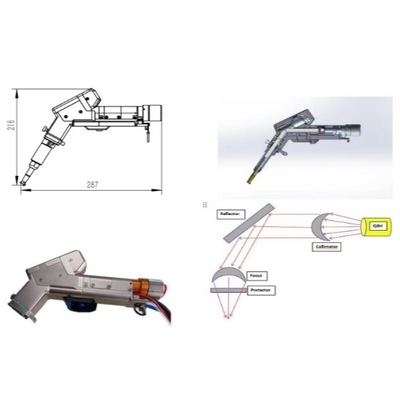

Handheld Three-in-One Laser Welder , 3 In 1 Handheld Laser Welding Cleaning Cutting Machine 0

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions Application Advantages:

Shenzhen Hanwei Laser Equipment Co., Ltd. dedicates itself to supplying all global integrators with first - rate welding technologies. As a national high - tech enterprise and a newly - certified specialized entity, it zeroes in on the research, development, manufacturing, and sales across a comprehensive industrial chain, which includes welding lasers, laser control systems, laser optical systems, and laser welding techniques. The company’s product portfolio encompasses nine major series of laser welding machines, such as the AMB Spot Ring Spot Welding Machine and the Blue Light Welding Machine, along with their relevant supplementary components.

Hanwei Laser abides by the business philosophy of “prioritizing R&D, supported by technology, and safeguarded by service” to serve B - end clients. It has a proficient team with extensive knowledge and rich experience in laser welding and related fields. The products are widely employed in various sectors, including new energy batteries, automobiles, electronics, and household appliances, exhibiting distinctive welding performances. Notably, the company has attained remarkable technological feats. The AMB Spot Ring Spot + Blue Light Composite Swing Welding Machine stands as a world - leading innovation, overcoming the challenges in welding highly reflective materials. Other models like the AMB Spot Ring Spot + Semiconductor Composite Welding Machine and the Semiconductor + Single Lamp Single Rod 600W Composite Laser Welding Machine have also efficiently resolved specific welding issues in the power battery domain.

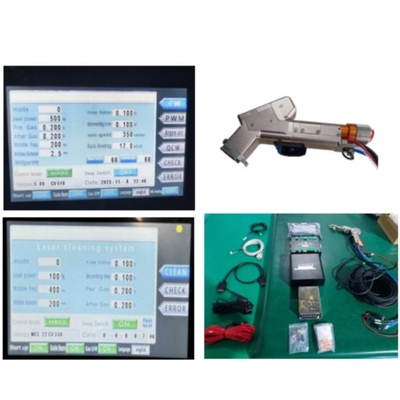

Handheld Three-in-One Laser Welder with Welding Cleaning and Cutting Functions Packing:

Seven kinds of nozzles
A set of Connection Cables and Line
Two Protective Lens
One Focus Lens for cleaning
One Safety Switch Clip
One Wire feeding device
One 15v Power Supply
One Handheld Laser Head
One Controller
One Touch Screen Monitor
One User Manual

Handheld Three-in-One Laser Welder , 3 In 1 Handheld Laser Welding Cleaning Cutting Machine 1
