2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-DZJS-2000
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Laser Power: 2000W Electrical Input Voltage: 220v 50Hz / 60Hz
Welding Materials: Steel / Stainless Steel / Aluminium Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon )
Welding Thickness: 4mm Stainless Steel Full Penetration Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option )
Focusing Focal Length: 150mm Collimation Focal Length: 60mm
Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
High Light:

Achieve Beautiful Welds Laser Welding Machine

,

2000W Portable Laser Welding Machine

,

Handheld Operation Laser Welding Machine
Product Description

2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds





2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds Description:

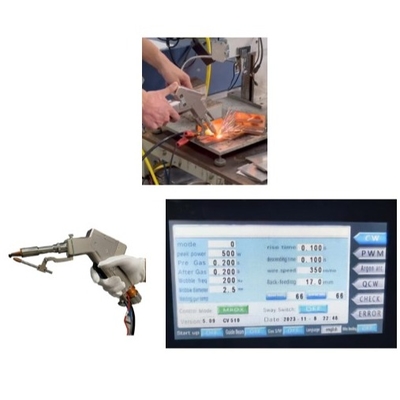

As an innovative and revolutionary welding tool, the compact single-motor welding head is designed with user-centric principles. It skillfully meets complex welding needs by balancing welding productivity and ergonomic design for extended use, allowing welders to complete projects with higher efficiency and precision.

The welding head features a lightweight, streamlined, and ergonomically optimized structure, ensuring a comfortable and secure grip. It seamlessly adapts to various welding tasks in different work environments—from large industrial production floors to outdoor on-site repair scenarios—consistently delivering excellent results.


2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds 0



2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds Features:

  • Handheld Laser Welding Machine
  • Product Name: Fiber Laser Welding Head
  • Positioning: Red Guide Beam
  • Fiber Cable: 10m Standard (15 / 20m Option)
  • Gas: Argon / Nitrogen
  • Laser Beam Size: 0~5mm Adjustable
  • Fiber Connector: QBH
  • Handheld Laser Gun Weight: 0.7kg
This high-performance fiber laser equipment features an integrated QBH fiber coupler, providing top-tier functionality. The laser beam diameter can be infinitely adjusted within the 0–5mm range, and a red aiming beam is included to ensure precise positioning. The welding head, weighing just 0.7kg, stands out with its ultra-lightweight design. It adopts ergonomic engineering to prioritize user comfort.


2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

2000W

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Welding Beam Size

0-5mm Adjustable

Welding Parameter Save

30 kinds of different welding parameter save

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Position Guide

Red Guide Light

Cooling method in Winter

Add Antifreeze



2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds 1



2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds Application Advantages:



The HanWei HW-DZJS-2000 portable welding unit demonstrates outstanding performance across various applications. Its mobility provides unmatched convenience for on-site welding tasks, allowing flexible operation in almost any environment. The cable-free design enhances workflow efficiency, enabling quick completion of welding projects. This product has become a fundamental solution in construction, manufacturing, and repair industries, serving as an essential tool for professionals seeking reliable, high-performance welding solutions.

For thin metal sheets such as stainless steel, carbon steel, and aluminum, the handheld single-vibration welding tool offers a superior alternative to traditional TIG and stick welding methods. The welding torch features a lightweight, compact, and ergonomically optimized design for comfortable handling, integrated with a safety interlock and touch-sensitive indicator light. Its user-focused design reduces operator fatigue while delivering high-speed, precision welds. Notably, the process produces invisible weld marks and no thermal discoloration, eliminating the need for post-weld finishing. Equipped with advanced anti-interference technology, it incorporates a proprietary control system to ensure stable and accurate performance across diverse working conditions.

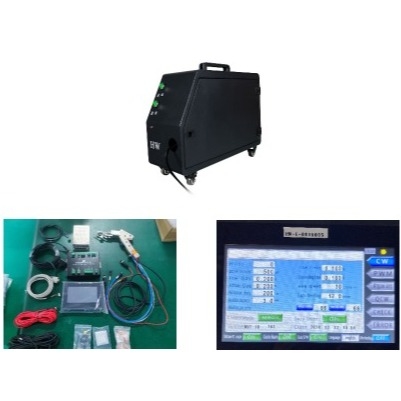

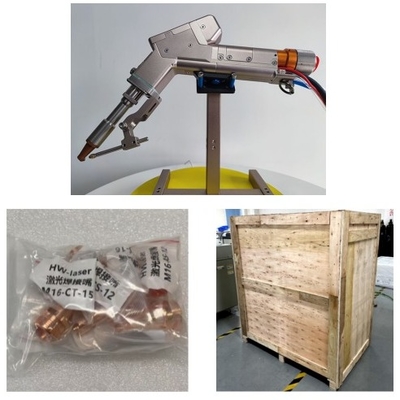

2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds Packing:


  • One Fiber Laser Welding Head
  • One Controller
  • Seven kinds of nozzles
  • One 15v Power Supply
  • One Safety Switch Clip
  • Two Protective Lens
  • A set of Connection Cables and Line
  • One Wire feeding device
  • One User Manual
  • One Touch Screen Monitor



​2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds 2



Shen Zhen HanWei Laser Enterprise and Feature:



The HanWei HW-DZJS-2000 portable welding system demonstrates state-of-the-art performance in diverse industrial scenarios. Its unmatched mobility transforms on-site welding operations, allowing flexible deployment in even the most demanding environments. The cable-free design enhances operational efficiency, supporting quick project execution with minimal preparation. Regarded as an industry benchmark, this solution has become essential for professionals in construction, manufacturing, and maintenance fields, providing reliable, high-performance welding results.



For thin-metal substrates such as stainless steel, carbon steel, and aluminum, the handheld single-vibration welding device presents a revolutionary alternative to conventional TIG and stick welding methods. The welding torch combines a lightweight, compact structure with ergonomic design for extended use, featuring a safety interlock mechanism and touch-sensitive indicator lights. This user-focused design reduces operator fatigue while enabling high-speed, precision welding with no visible seam marks or thermal discoloration—completely eliminating the need for post-weld finishing. Equipped with advanced anti-interference algorithms and a proprietary control system, the equipment ensures stable performance across different working conditions.


2000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds 32000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds 42000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds 52000W Portable Laser Welding Machine Handheld Operation Achieve Beautiful Welds 6
