High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-DZJS-2000
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option ) Electrical Input Voltage: 220v 50Hz / 60Hz
Welding Thickness: 4mm Stainless Steel Full Penetration Welding Materials: Steel / Stainless Steel / Aluminium
Laser Power: 2000W Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
Collimation Focal Length: 60mm Focusing Focal Length: 150mm
Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon ) Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save
High Light:

Stable Welding Quality Welding Machine

,

Single Motor Handheld Welding Machine
Product Description

High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality





High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality Description:



The Single Wobble Welding Torch stands as a cutting-edge and innovative soldering tool. Engineered with a user-centric philosophy, it skillfully tackles complex welding demands. By meticulously balancing welding process productivity with operator comfort for extended use, it empowers welders to complete tasks more efficiently and accurately.

This welding device features an ultra-lightweight, streamlined, and user-friendly design, ensuring a secure and stable grip. It can be easily adapted to different welding operations across various work environments. Whether employed in large-scale industrial manufacturing plants or on-site outdoor repair projects, it consistently delivers exceptional results.

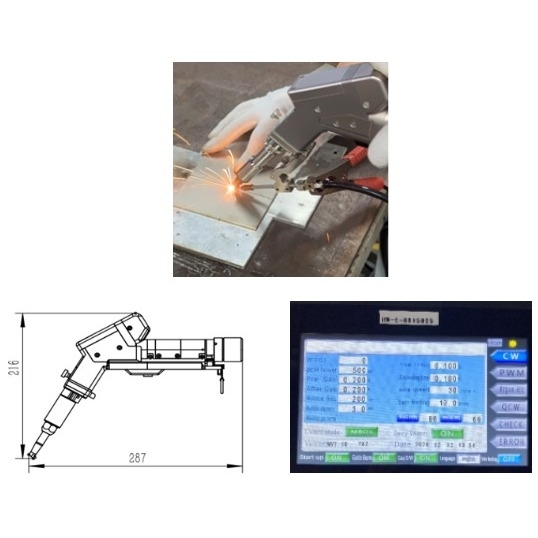

High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality 0



High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality Features:

  • Handheld Laser Welding Machine
  • Handheld Laser Gun Weight: 0.7kg
  • Fiber Cable: 10m Standard (15 / 20m Option)
  • Fiber Connector: QBH
  • Product Name: Fiber Laser Welding Head
  • Positioning: Red Guide Beam
  • Laser Beam Size: 0~5mm Adjustable
  • Gas: Argon / Nitrogen
The fiber laser welding equipment is a premium - grade fiber laser device integrated with a QBH fiber connector. The width of its laser beam can be adjusted within a range of 0 to 5mm. Additionally, it is equipped with a red alignment beam to ensure precise positioning.
This fiber laser welding attachment is extremely lightweight, with an overall weight of only 0.7kg. It has been designed with a strong emphasis on operator convenience.


High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality Technical Parameters:



Product Name

Handheld Single Wobble Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

2000W

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Welding Beam Size

0-5mm Adjustable

Cooling method in Winter

Add Antifreeze

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

30 kinds of different welding parameter save

Position Guide

Red Guide Light

Welding Parameter Save

QBH

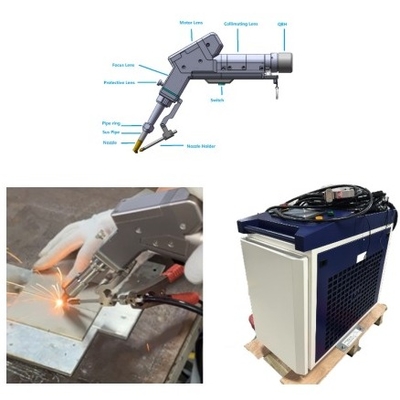

High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality 1



High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality Application Advantages:



The HanWei HW-DZJS-2000 mobile welding unit demonstrates exceptional performance in diverse scenarios. Its portability offers unmatched convenience for on-site welding tasks, making it adaptable to nearly any working environment. The cordless welding function simplifies operational processes, allowing welding projects to be completed swiftly and efficiently. This product has become a vital asset in construction, manufacturing, and maintenance industries, serving as an irreplaceable tool for professionals seeking reliable high-performance welding solutions.

The handheld single-oscillation welding device serves as an optimal substitute for traditional argon arc and arc welding methods, particularly for thin metal sheets like stainless steel, carbon steel, and aluminum. The welding torch features a lightweight, compact design with ergonomic engineering to ensure a secure and comfortable grip. It is equipped with a safety lock mechanism and touch-sensitive status indicator light. The user-friendly design significantly reduces operator training time, while its welding performance delivers superior quality: rapid processing speed, seamless welds without visible beads or discoloration, eliminating the need for post-welding finishing. The device incorporates robust anti-interference capabilities and a specialized control system for stable operation.


High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality Packing:


  • One Fiber Laser Welding Head
  • One Controller
  • Two Protective Lens
  • One Wire feeding device
  • One Touch Screen Monitor
  • One User Manual
  • Seven kinds of nozzles
  • A set of Connection Cables and Line
  • One Safety Switch Clip
  • One 15v Power Supply



​High-Performance Handheld Single Motor Welding Machine with Stable Welding Quality 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. delivers a full - scale portfolio of laser machinery, integrating fixed desktop models and portable handheld devices. These setups leverage advanced fiber, pulsed/continuous - wave, blue - light, diode, and hybrid laser technologies, intricately designed to address customers' varied demands. Moreover, the company devises tailor - made solutions for specific applications and provides educational training alongside after - sales support services, striving to aid clients in maximizing the potential of their laser systems. With branches and collaborative partners spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has built a global footprint, catering to clients across the world.





Hanwei Laser mainly focuses its business operations on the laser welding domain. The enterprise is dedicated to offering world - class laser welding technology to international laser integration enterprises. Its objective is to provide all integrators with high - quality welding solutions. As one of the few globally acknowledged national high - tech specialized and innovative enterprises, it specializes in the R&D, production, and marketing of diverse welding lasers, laser control systems, laser optical components, and laser welding technologies, covering the entire industrial chain.
