Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work

Name: Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-20-60150
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-20-60150
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Laser Power:

Up To 3000W For Welding And 2000W For Cleaning

Handheld Laser Gun Weight:

0.7 Kg

Welding Laser Beam Size:

0-5mm Adjustable

Cleaning Laser Beam Size:

0-50mm Adjustable

Handheld Laser Gun Materials:

Aluminium Alloy & Stainless Steel

Welding Materials:

Steel / Stainless Steel / Aluminium

Wire Feeding Device:

Standard Type : 0.8&1.0&1.2&1.6mm Wire

Double Route Wire Feeder:

Option ( Same Time Double Route Feeding )

Welding Parameter Storage:

30 Kinds Of Different Welding Parameter Save

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Product Description

Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work

Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work Description:

The Handheld Single-Motor Tri-Function Device marks a major leap in portable multi-tool technology. Driven by a single high-performance motor, this equipment integrates three key functions—welding, cutting, and cleaning—into an ergonomically designed, sleek handheld body.

For welding, it precisely regulates current and voltage to produce a stable arc, enabling strong, accurate welds on materials like steel, stainless steel, and aluminum. During cutting, a concentrated high-intensity beam penetrates varying material thicknesses at adjustable speeds and depths, ensuring clean, efficient cuts. In cleaning mode, it draws in cleaning agents or water, transforming them into a powerful, adjustable high-pressure spray through a flexible nozzle to effectively remove rust, grime, and contaminants.

This device offers exceptional versatility, adapting to diverse environments—from workshops and construction sites to industrial maintenance areas—while delivering top-tier performance across all three core functions.

Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work 0

Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work Features:

Product Name: Fiber Laser 3-in-1 Machine
Handheld Laser Gun Weight: 0.7kg
Standard Focus length: 60 and 150mm standard Focus length adjustable
Cooling method: Water Cooling
Welding Materials: Steel / Stainless Steel / Aluminum
Laser Power: Up to 3000W for welding and 2000W for cleaning
Welding Laser Beam Size: 0-5mm Adjustable
Cleaning Laser Beam Size: 0-50mm Adjustable
Laser Head Connection: QBH
Laser Beam Form: Line “一”
Gas: Argon / Nitrogen

For metalworking, machinery repair, and surface pre-treatment in workshops and manufacturing plants, the Handheld Single-Motor Tri-Function Device stands as an elite choice. With a peak welding power of 3000W and 2000W for cleaning, it effortlessly handles steel, stainless steel, and aluminum materials. Its laser beam features a linear design, connects via a QBH interface, and requires argon or nitrogen gas.

Weighing just 0.7kg, this portable laser unit offers an adjustable standard focal length of 60-150mm. It also allows precise adjustment of the laser beam diameter for both welding and cutting: the welding beam diameter is tunable within 0-5mm, while the cleaning beam ranges from 0-50mm. To ensure optimal thermal management during operation, the device uses a water-cooling system, maintaining consistent performance and extending its service life.

Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work Technical Parameters:

Product Name	Handheld Single Motor Three-in-One Machine
Laser Power	Up to 3000W for welding and 2000W for cleaning
Handheld Laser Gun Weight	0.7 KG
Cleaning Beam Form	Line " 一 "
Standard Focus length	60 and 150mm standard Focus length adjustable
Wire Feeding Device	Standard type : 0.8&1.0&1.2&1.6mm wire
Double Route Wire Feeder	Option (Same time double route feeding)
Welding Laser Beam Size	0-5mm Adjustable
Cleaning Laser Beam Size	0-50mm Adjustable
Fiber Connector	QBH
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Parameter Save	30 kinds of different welding parameter save

Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work 1

Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work Application Advantages:

The HanWei HW-20-60150 Handheld Single-Wobble Tri-Function Machine offers outstanding application benefits. Its remarkable portability, enabled by a compact and lightweight build, makes it ideal for restricted spaces and mobile operations. This boosts operational agility without needing complex equipment or a large crew.

The device integrates welding, cutting, and cleaning functions. For welding, with 3000W power, it excels in joining steel, stainless steel, and aluminum. The welding beam (0-5mm adjustable) meets diverse welding needs. For cutting, the laser beam penetrates materials with adjustable speed and depth. For cleaning, the 2000W beam (0-50mm adjustable) delivers high-efficiency surface cleaning, suitable for automotive, household, and industrial equipment maintenance.

It's energy-saving and cost-effective. The single-motor design reduces energy consumption, simplifies workflows, and cuts time/energy costs. Its simple structure also lowers production and maintenance expenses. Additionally, it's user-friendly—no specialized training needed, making it accessible to broad users while minimizing errors and training costs.

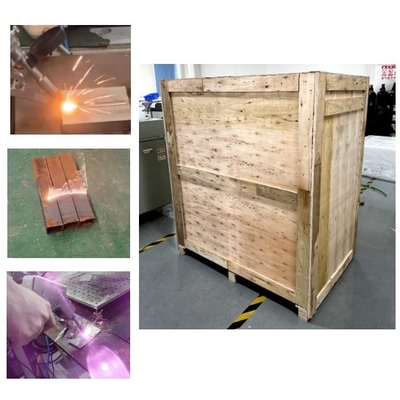

Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work Packing:

One Handheld Laser Head
Seven kinds of nozzles
A set of Connection Cables and Line
One 15v Power Supply
One Safety Switch Clip
Two Protective Lens
One Wire feeding device
One Controller
One Touch Screen Monitor
One Focus Lens for cleaning
One User Manual

Handheld Three-in-One Machine Integrates Multiple Functions for More Efficient Work 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. is committed to providing top-tier welding technologies to global system integrators. As a national high-tech enterprise and newly recognized specialized and sophisticated firm, it centers on the R&D, production, and marketing of a complete industrial chain covering welding lasers, laser control systems, optical systems, and welding techniques. The company's product lineup includes nine major series of laser welding equipment, such as the AMB Spot Ring Spot Welding Machine, Blue Light Welding Machine, and their auxiliary components.

Driven by the philosophy of "innovation-led, technology-supported, and service-oriented," Hanwei Laser serves B2B clients with a team of specialists proficient in laser welding and related domains. Its solutions are widely adopted in industries like new energy batteries, automotive, electronics, and home appliances, showcasing outstanding welding performance. Notably, the company has achieved globally advanced breakthroughs: the AMB Spot Ring Spot + Blue Light Composite Swing Welding Machine tackles the challenges of welding highly reflective materials, while models such as the AMB Spot Ring Spot + Semiconductor Composite Welding Machine and Semiconductor + Single Lamp Single Rod 600W Composite Laser Welding Machine have effectively resolved specific welding challenges in the power battery sector.
