  • Quality Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel factory
  • Quality Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel factory
  • Quality Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel factory
  • Quality Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel factory

Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-DZJS-2000
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Electrical Input Voltage: 220v 50Hz / 60Hz Welding Thickness: 4mm Stainless Steel Full Penetration
Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option ) Laser Power: 2000W
Welding Materials: Steel / Stainless Steel / Aluminium Collimation Focal Length: 60mm
Focusing Focal Length: 150mm Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon )
High Light:

Single Motor Handheld Laser Welding Machine

,

4mm Handheld Laser Welding Machine
Product Description

Double Wire Feeding Handheld Single Motor Laser Welding Machine For 4mm Stainless Steel





Double Wire Feeding Handheld Single Motor Laser Welding Machine For 4mm Stainless Steel Description:



The Portable Single - Motor Welding Head represents a cutting - edge and groundbreaking welding solution. Developed with a focus on user - friendliness, it adeptly addresses intricate welding requirements. Through a meticulous equilibrium of welding process productivity and user - friendly ergonomics suitable for prolonged operation, it provides welders with a more productive and precise way to complete their projects.

Featuring a streamlined, lightweight, and ergonomically optimized design, this welding head ensures a snug and stable grip. It can be effortlessly customized to different welding jobs in a wide range of working conditions. Whether utilized in massive industrial manufacturing facilities or on - site outdoor repair operations, it unfailingly achieves outstanding outcomes.

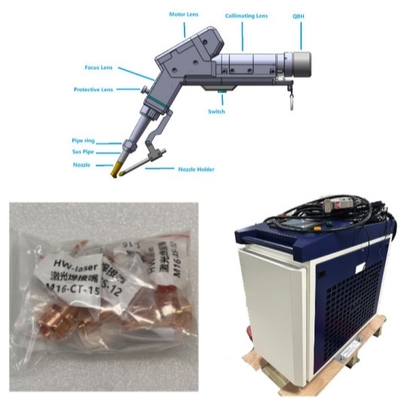

Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel 0



Double Wire Feeding Handheld Single Motor Laser Welding Machine For 4mm Stainless Steel Features:

  • Handheld Laser Welding Machine
  • Product Name: Fiber Laser Welding Head
  • Laser Beam Size: 0~5mm Adjustable
  • Fiber Cable: 10m Standard (15 / 20m Option)
  • Handheld Laser Gun Weight: 0.7kg
  • Gas: Argon / Nitrogen
  • Fiber Connector: QBH
  • Positioning: Red Guide Beam

The fiber laser welding head is a high - quality fiber laser device integrated with a QBH fiber coupler. The diameter of the emitted laser beam can be flexibly adjusted within the range of 0 to 5mm. Moreover, it is equipped with a red alignment beam, enabling accurate and meticulous positioning.

Remarkably lightweight, this fiber laser welding tip tips the scales at only 0.7kg. Its design places great importance on user convenience, ensuring a comfortable operation experience.


Double Wire Feeding Handheld Single Motor Laser Welding Machine For 4mm Stainless Steel Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

2000W

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Welding Beam Size

0-5mm Adjustable

Position Guide

Red Guide Light

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Welding Parameter Save

30 kinds of different welding parameter save

Cooling method in Winter

Add Antifreeze

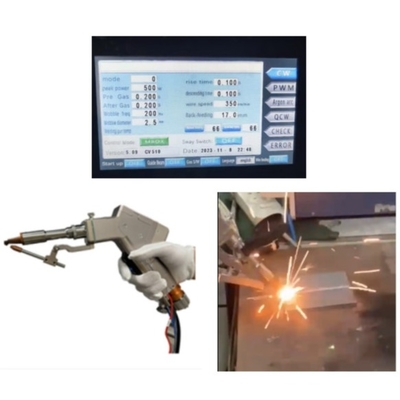

Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel 1



Double Wire Feeding Handheld Single Motor Laser Welding Machine For 4mm Stainless Steel Application Advantages:



The HanWei HW - DZJS - 2000 portable welding apparatus showcases exceptional performance across a wide array of scenarios. Its portability provides unparalleled ease for on - location welding tasks, rendering it highly versatile and deployable in almost any setting. The cable - free welding feature streamlines the procedure, allowing for the efficient and prompt accomplishment of welding jobs. This product is indispensable in the construction, fabrication, and maintenance industries, emerging as an irreplaceable tool for individuals in search of a reliable and high - caliber welding alternative.

The handheld single - vibrational welding tool serves as an outstanding alternative to traditional argon arc and arc welding techniques, especially when handling thin metal sheets such as stainless steel, carbon steel, and aluminum. The welding torch is lightweight, compact, and crafted with ergonomics at its core, guaranteeing a secure and comfortable grip. It is equipped with a safety latch and a touch - sensitive indicator light. Thanks to its user - friendly design, it requires minimal exertion from the operator. The finished welds exhibit superior quality, the welding process is expedient, and there are no discernible weld marks or discoloration, thus obviating the need for post - weld finishing. This tool boasts robust anti - interference capabilities and is outfitted with a unique control system.


Double Wire Feeding Handheld Single Motor Laser Welding Machine For 4mm Stainless Steel Packing:


  • One Fiber Laser Welding Head
  • One Controller
  • Two Protective Lens
  • One User Manual
  • One Wire feeding device
  • One Touch Screen Monitor
  • One Safety Switch Clip
  • Seven kinds of nozzles
  • One 15v Power Supply
  • A set of Connection Cables and Line

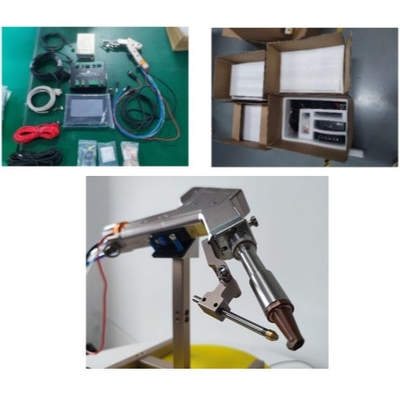

​Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. presents a comprehensive selection of laser equipment, encompassing both desktop and portable variants. These configurations leverage cutting - edge fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, meticulously engineered to meet the diverse requirements of customers. Additionally, the company provides customized solutions for specific applications and offers training and after - sales support services, enabling customers to fully utilize the capabilities of their laser systems. With branches and partners distributed across Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients worldwide.



Hanwei Laser's core business is centered on the field of laser welding. The company is committed to supplying international laser integration firms with top - tier laser welding technology. Its goal is to offer high - performance welding solutions to all integrators. As one of the few national high - tech "little giant" enterprises globally, it specializes in the research, development, production, and sales of various welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.




Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel 3Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel 4Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel 5Double Wire Feeding Handheld Single Motor Laser Welding Machine Welding 4mm Stainless Steel 6
