Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-DZJS-2000
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Laser Power: 2000W Electrical Input Voltage: 220v 50Hz / 60Hz
Welding Thickness: 4mm Stainless Steel Full Penetration Welding Materials: Steel / Stainless Steel / Aluminium
Collimation Focal Length: 60mm Focusing Focal Length: 150mm
Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option ) Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon )
Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option ) Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save
High Light:

Lightweight Handheld Laser Welding Machine

,

4mm Aluminum Handheld Laser Welding Machine

,

Single Wobble Handheld Laser Welding Machine
Product Description

Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding





Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding Description:



The Single Wobble Welding Torch represents a cutting - edge and groundbreaking soldering instrument. Developed with a user - first approach, it adeptly addresses intricate welding requirements. Through meticulously harmonizing the productivity of the welding procedure with operator comfort for prolonged usage, it provides welders with a more effective and precise way to complete their assignments.



Featuring a feather - light, streamlined, and user - friendly design, this welding apparatus ensures a snug and stable grip. It can be effortlessly customized to different welding operations in varied work conditions. Whether utilized in massive industrial manufacturing facilities or on - site outdoor repair jobs, it unfailingly achieves outstanding outcomes.

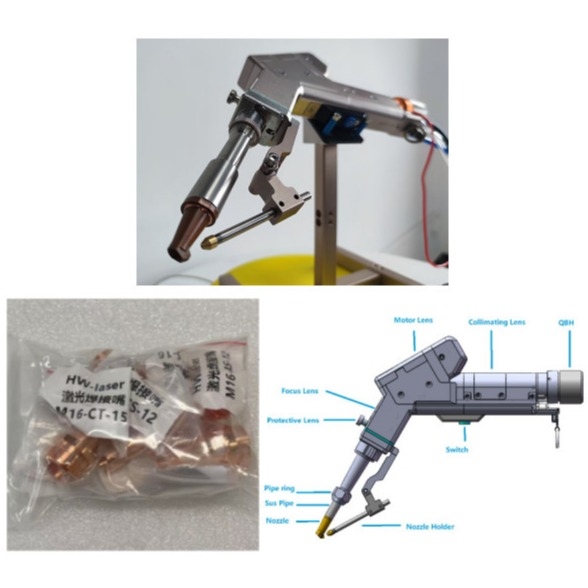

Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding 0



Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding Features:

  • Handheld Laser Welding Machine
  • Handheld Laser Gun Weight: 0.7kg
  • Product Name: Fiber Laser Welding Head
  • Positioning: Red Guide Beam
  • Laser Beam Size: 0~5mm Adjustable
  • Fiber Cable: 10m Standard (15 / 20m Option)
  • Fiber Connector: QBH
  • Gas: Argon / Nitrogen


The fiber laser welding apparatus is a high - quality fiber laser device integrated with a QBH fiber connector. The width of its laser ray can be modified within a range of 0 to 5mm. Moreover, it is equipped with a crimson alignment beam to guarantee accurate placement.



This fiber laser welding attachment is incredibly lightweight, with an overall mass of just 0.7kg. It has been designed with a significant focus on operator convenience.



Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding Technical Parameters:



Product Name

Handheld Single Wobble Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

2000W

Handheld Laser Gun Weight

0.7kg

Welding Beam Form

Line " 一 "

Welding Beam Size

0-5mm Adjustable

Welding Parameter Save

30 kinds of different welding parameter save

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Position Guide

Red Guide Light

Cooling method in Winter

Add Antifreeze

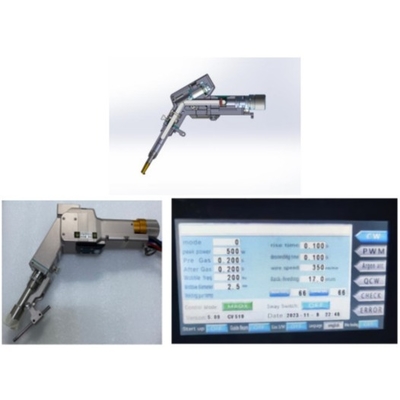

Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding 1



Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding Application Advantages:



The HanWei HW - DZJS - 2000 mobile welding unit showcases remarkable performance across a wide array of scenarios. Its portability provides unparalleled ease for field - based welding activities, rendering it suitable for use in almost any location. The cable - free welding feature streamlines the workflow, enabling quick and efficient completion of welding projects. This product is indispensable in the construction, fabrication, and maintenance industries, emerging as an irreplaceable tool for professionals in search of a reliable and high - caliber welding alternative.



The handheld single - oscillating welding apparatus serves as an ideal replacement for traditional argon arc and arc welding techniques, especially when dealing with thin metal sheets such as stainless steel, carbon steel, and aluminum. The welding torch is lightweight, compact, and ergonomically engineered to ensure a secure and comfortable grip. It is equipped with a safety latch and a touch - sensitive status light. Its user - friendly design minimizes the learning curve for operators. The welds produced are of superior quality, the welding process is rapid, and the finished surfaces exhibit no discernible weld beads or discoloration, thereby eliminating the need for post - welding finishing work. This device boasts robust anti - interference properties and is integrated with a specialized control mechanism.



Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding Packing:


  • One Fiber Laser Welding Head
  • One Controller
  • Two Protective Lens
  • One User Manual
  • Seven kinds of nozzles
  • One 15v Power Supply
  • A set of Connection Cables and Line
  • One Wire feeding device
  • One Touch Screen Monitor
  • One Safety Switch Clip

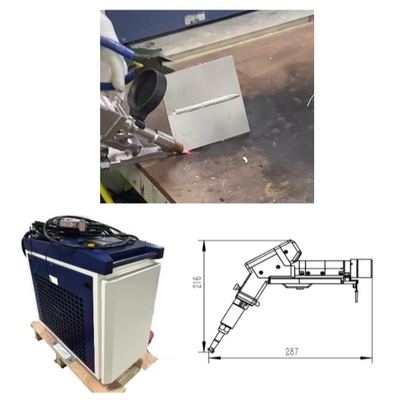

​Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. presents a comprehensive selection of laser machinery, encompassing both stationary desktop and portable handheld versions. These configurations employ cutting - edge fiber, pulsed or continuous - wave, blue - light, diode, and hybrid laser technologies, meticulously crafted to meet the diverse requirements of customers. In addition, the company formulates customized solutions for particular applications and offers educational training and after - sales support services, aiming to assist clients in fully exploiting the capabilities of their laser systems. With branches and collaborative partners distributed across Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clientele worldwide.



Hanwei Laser primarily concentrates its business operations within the laser welding sector. The enterprise is committed to supplying international laser integration firms with top - tier laser welding technology. Its goal is to furnish all integrators with high - quality welding solutions. As one of the few globally recognized national high - tech specialized and innovative enterprises, it specializes in the research, development, production, and marketing of a wide range of welding lasers, laser control systems, laser optical assemblies, and laser welding techniques, covering the entire industrial chain.


Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding 3Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding 4Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding 5Lightweight Handheld Single Wobble Laser Welding Machine For 4mm Aluminum Welding 6
