Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum

Name: Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-DZJS-2000
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-DZJS-2000
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Laser Power:

2000W

Welding Beam Size:

0-5mm Adjustable ( 0-10mm Option )

Electrical Input Voltage:

220v 50Hz / 60Hz

Welding Thickness:

4mm Stainless Steel Full Penetration

Welding Materials:

Steel / Stainless Steel / Aluminium

Collimation Focal Length:

60mm

Focusing Focal Length:

150mm

Laser Output Mode:

4 Mode ( CW, PWM, QCW, Argon )

Feeding Wires:

0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )

Welding Parameter Save:

30 Kinds Of Different Welding Parameter Save

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

Lightweight Handheld Laser Welding Machine

Single Motor Handheld Laser Welding Machine

4mm Aluminum Handheld Laser Welding Machine

Product Description

Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum

Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum Description:

The Compact Single Motor Welding Head is a state - of - the - art and revolutionary welding tool. Engineered with an end - user centric philosophy, it skillfully meets complex welding demands. By carefully balancing the operational efficiency of the welding process with user ergonomics for extended use, it offers welders a more efficient and accurate means of execution for their projects.

Boasting a lightweight, aerodynamic, and ergonomically crafted design, this welding head guarantees a comfortable and secure hold. It can be seamlessly adjusted to various welding tasks across diverse working environments. Be it in large - scale industrial production settings or outdoor field repair work, it consistently delivers exceptional results.

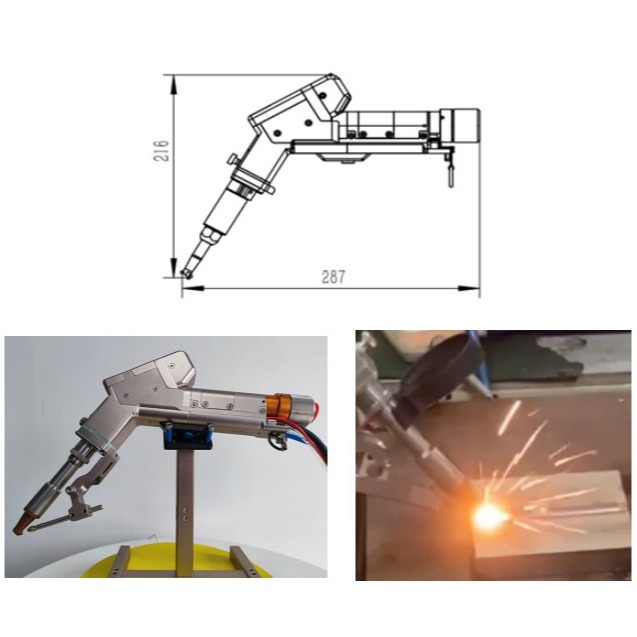

Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum 0

Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum Features:

Handheld Laser Welding Machine
Product Name: Fiber Laser Welding Head
Fiber Connector: QBH
Positioning: Red Guide Beam
Laser Beam Size: 0~5mm Adjustable
Fiber Cable: 10m Standard (15 / 20m Option)
Handheld Laser Gun Weight: 0.7kg
Gas: Argon / Nitrogen

The fiber laser welding head is a premium - grade fiber laser equipment that incorporates a QBH fiber coupler. The diameter of its laser beam is adjustable from 0 to 5mm. Additionally, it is outfitted with a red aiming beam to ensure precise positioning.

This fiber laser welding tip is extremely lightweight, weighing a mere 0.7kg in total. It has been engineered with a strong emphasis on user comfort.

Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum Technical Parameters:

Product Name	Handheld Single Motor Laser Welding Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	2000W
Handheld Laser Gun Weight	0.7kg
Welding Beam Form	Line " 一 "
Welding Beam Size	0-5mm Adjustable
Welding Parameter Save	30 kinds of different welding parameter save
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Fiber Connector	QBH
Position Guide	Red Guide Light
Cooling method in Winter	Add Antifreeze

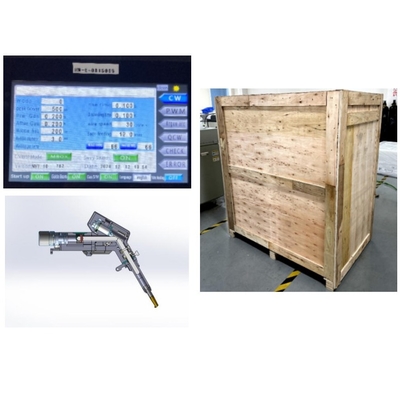

Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum 1

Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum Application Advantages:

The HanWei HW - DZJS - 2000 portable welding device demonstrates outstanding capabilities in numerous situations. Its mobility offers unmatched convenience for on - site welding operations, making it applicable virtually anywhere. The cordless welding function simplifies the process, facilitating the rapid completion of welding tasks. This product is essential in the construction, manufacturing, and repair sectors, becoming an invaluable asset for those seeking a dependable and high - performing welding solution.

The handheld single - vibration welding device is an excellent substitute for conventional argon arc and electric welding methods when working with thin metal plates like stainless steel, carbon steel, and aluminum. The welding gun is light, compact, and designed with ergonomics in mind to ensure a comfortable hold. It comes with a safety lock and a touch - activated indicator light. Its intuitive design demands little effort from the operator. The resulting welds are of top - notch quality, the welding process is swift, and there are no visible welding marks or color changes, eliminating the necessity for post - weld polishing. It has strong anti - interference characteristics and is equipped with a proprietary control system.

Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum Packing:

One Fiber Laser Welding Head
One Controller
Two Protective Lens
One User Manual
Seven kinds of nozzles
One 15v Power Supply
A set of Connection Cables and Line
One Wire feeding device
One Touch Screen Monitor
One Safety Switch Clip

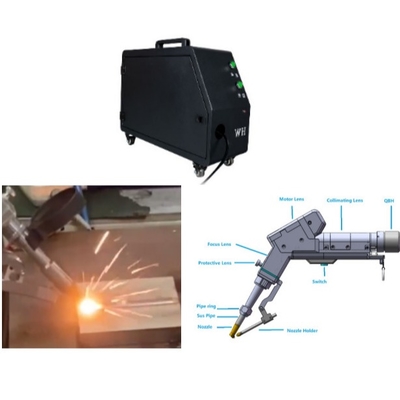

Lightweight Handheld Single Motor Laser Welding Machine For Welding 4mm Aluminum 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. offers an extensive array of laser equipment, including both desktop and handheld models. These setups utilize advanced fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, designed to fulfill the unique needs of customers. Moreover, they provide tailored solutions for specific applications and offer training and support services to help customers maximize the potential of their laser systems. With branches and partners spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has built a worldwide footprint, catering to clients across the globe.

Hanwei Laser focuses its main business on the laser welding domain. The firm is dedicated to providing international laser integration companies with superior laser welding technology. Its objective is to deliver high - quality welding solutions to all integrators. As one of the limited global national high - tech specialized and innovative enterprises, it specializes in the R&D, manufacturing, and marketing of various welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
