3000W Handheld Single Motor Laser Welding Machine for Welding Stainless Steel

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-BDJGKZ-3000
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Modern Fiber Laser Handheld Welding Machine

Double Motor 2kw Laser Welder

Fiber Laser Handheld Welding Machine 1500w
Specifications
Laser Power: 3000W Welding Materials: Steel / Stainless Steel / Aluminium
Welding Beam Size: 0-5mm Adjustable ( 0-10mm Option ) Electrical Input Voltage: 380v 50Hz / 60Hz
Welding Thickness: 4mm Stainless Steel Full Penetration Collimation Focal Length: 60mm
Focusing Focal Length: 150mm Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
Laser Output Mode: 4 Mode ( CW, PWM, QCW, Argon ) Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save
High Light:

Stainless Steel Handheld Laser Welding Machine

,

3000W Handheld Laser Welding Machine

,

Single Motor Handheld Laser Welding Machine
Product Description

3000W Handheld Single Motor Laser Welding Machine For Welding Stainless Steel





3000W Handheld Single Motor Laser Welding Machine For Welding Stainless Steel Description:



The Compact Single Motor Welding Head represents a cutting - edge and innovative welding instrument. Adopting a user - focused design approach, it adeptly addresses intricate welding requirements by meticulously taking into account both the functionality of the welding procedure and the comfort for long - term usage. It provides a more productive and precise way of operation for welding undertakings.
This welding head features a light - weight, streamlined, and ergonomically designed construction, ensuring a comfortable and steady grip. It can be effortlessly adapted to different welding jobs under a wide range of working circumstances. Whether it is large - scale factory manufacturing or outdoor on - site repair operations, it is fully capable of achieving outstanding outcomes.

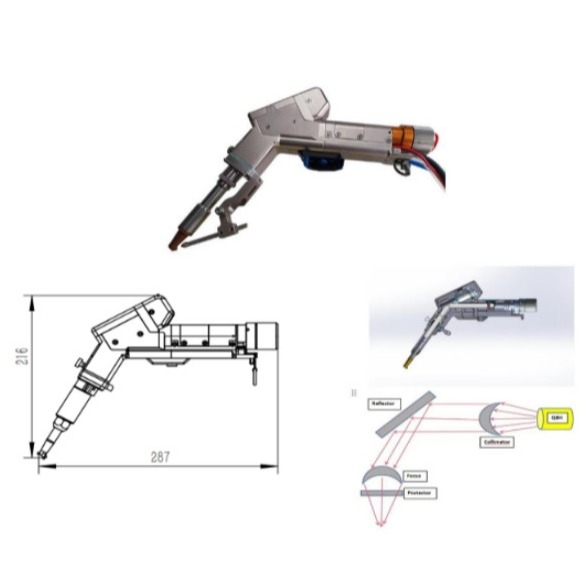

3000W Handheld Single Motor Laser Welding Machine for Welding Stainless Steel 0



3000W Handheld Single Motor Laser Welding Machine For Welding Stainless Steel Features:

  • Handheld Laser Welding Machine
  • Product Name: Fiber Laser Welding Head
  • Fiber Connector: QBH
  • Positioning: Red Guide Beam
  • Fiber Cable: 10m Standard. (15 / 20m Option)
  • Laser Beam Size: 0~5mm Adjustable
  • Handheld Laser Gun Weight: 0.8kg
  • Gas: Argon / Nitrogen

The fiber laser welding head represents a high - end fiber laser device featuring a QBH fiber coupler. The diameter of its laser beam can be adjusted within the range of 0 - 5mm. Moreover, it is equipped with a red alignment beam to guarantee accurate positioning.

This fiber optic laser welding nozzle is lightweight, with an overall weight of merely 0.8kg. It has been designed with great regard for the comfort of the end - user.


3000W Handheld Single Motor Laser Welding Machine For Welding Stainless Steel Technical Parameters:



Product Name

Handheld Single Motor Laser Welding Machine

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

3000W

Handheld Laser Gun Weight

0.8kg

Welding Beam Form

Line " 一 "

Welding Beam Size

0-5mm Adjustable

Welding Parameter Save

30 kinds of different welding parameter save

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Fiber Connector

QBH

Position Guide

Red Guide Light

Cooling method in Winter

Add Antifreeze

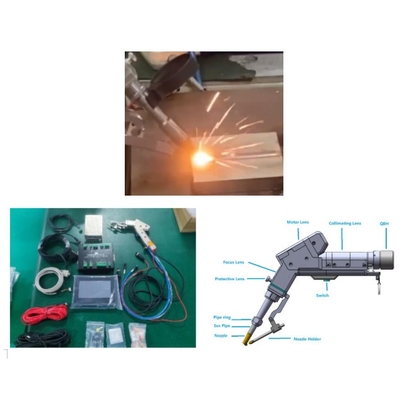

3000W Handheld Single Motor Laser Welding Machine for Welding Stainless Steel 1



3000W Handheld Single Motor Laser Welding Machine For Welding Stainless Steel Application Advantages:



The HanWei HW-BDJGKZ-3000 portable welding apparatus showcases remarkable performance across a diverse range of scenarios. Its portability provides unparalleled ease for on - site welding work, enabling its application in almost any location. The wireless welding feature streamlines the procedure, expediting the prompt completion of welding assignments. This product plays a crucial role in the construction, manufacturing, and repair industries, emerging as an indispensable tool for those in search of a reliable and efficient welding implement.

The handheld single - oscillation welding unit serves as an outstanding alternative to traditional argon arc welding and electric welding techniques when handling thin metal sheets such as stainless steel, carbon steel, and aluminum. The welding torch is lightweight, compact, and ergonomically engineered to guarantee a comfortable grip. It is furnished with a safety latch and a touch - sensitive indicator light. Its user - friendly layout requires minimal effort from the operator. The weld seam is of superior quality, the welding speed is fast, and there are no welding traces or color alterations, thus obviating the need for post - welding buffing. It exhibits robust anti - interference properties and is equipped with an in - house developed control mechanism.


3000W Handheld Single Motor Laser Welding Machine For Welding Stainless Steel Packing:


  • One Fiber Laser Welding Head
  • Two Protective Lens
  • One Controller
  • One User Manual
  • One 15v Power Supply
  • A set of Connection Cables and Line
  • Seven kinds of nozzles
  • One Wire feeding device
  • One Touch Screen Monitor
  • One Safety Switch Clip

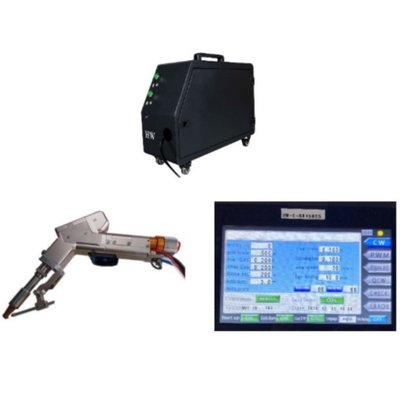

​3000W Handheld Single Motor Laser Welding Machine for Welding Stainless Steel 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. showcases an extensive portfolio of laser equipment, including both desktop and portable models. These setups utilize advanced fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, meticulously designed to satisfy the unique needs of customers. Moreover, the company offers tailored solutions for specific applications and provides training and support services, ensuring clients can fully maximize the potential of their laser systems. With branches and subsidiaries distributed throughout Europe, North America, Asia, and the Middle East, Hanwei Laser has built a strong international footprint, catering to clients worldwide.

The core focus of Hanwei Laser lies in the laser welding domain. The firm is dedicated to providing leading - edge laser welding technology to international laser integration enterprises. Its objective is to deliver superior - quality welding technology to all integrators. As one of the limited number of global national high - tech specialized and innovative enterprises, it specializes in the R&D, manufacturing, and distribution of a wide array of welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.
