Handheld 3-in-1 Laser Welding Machine for Welding Cutting and Cleaning Welding Laser Beam Size 0-5mm Adjustable

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-60150
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Stainless Steel Laser Welding Machine

3-in-1 Laser Welding Machine

Aluminium Alloy Laser Welding Machine
Specifications
Laser Power: Up To 3000W For Welding And 2000W For Cleaning Welding Laser Beam Size: 0-5mm Adjustable
Cleaning Laser Beam Size: 0-50mm Adjustable Handheld Laser Gun Weight: 0.7 Kg
Welding Materials: Steel / Stainless Steel / Aluminium Handheld Laser Gun Materials: Aluminium Alloy & Stainless Steel
Wire Feeding Device: Standard Type : 0.8&1.0&1.2&1.6mm Wire Double Route Wire Feeder: Option ( Same Time Double Route Feeding )
Welding parameter storage: 30 Kinds Of Different Welding Parameter Save
High Light:

Cutting Handheld Laser Welding Machine

,

Handheld 3-in-1 Laser Welding Machine

,

Cleaning Handheld Laser Welding Machine
Product Description

Handheld 3-in-1 Laser Welding Machine for Welding / Cutting and Cleaning





Handheld 3-in-1 Laser Welding Machine for Welding / Cutting and Cleaning Description:



The Handheld Single - Motor Triple - Function Apparatus marks a substantial advancement within the domain of portable multi - purpose tools. Propelled by a solitary but robust motor, this device integrates three crucial functions: welding, cutting, and cleaning. All these functions are neatly incorporated into an ergonomically designed and sleek handheld casing.

Regarding welding, it meticulously regulates the amperage and voltage to produce a steady arc. This allows for robust and precise welds on diverse materials such as steel, stainless steel, and aluminum. For cutting operations, a concentrated high - intensity beam pierces materials of varying thicknesses at modifiable speeds and depths, guaranteeing neat and efficient cuts. In the cleaning mode, it sucks in cleaning agents or water and converts them into a potent, adjustable high - pressure spray through a flexible nozzle. This effectively eradicates rust, dirt, and pollutants. This apparatus showcases remarkable adaptability and is appropriate for a broad spectrum of settings, including workshops, construction areas, and industrial maintenance sites, performing admirably in all three key functions.
.

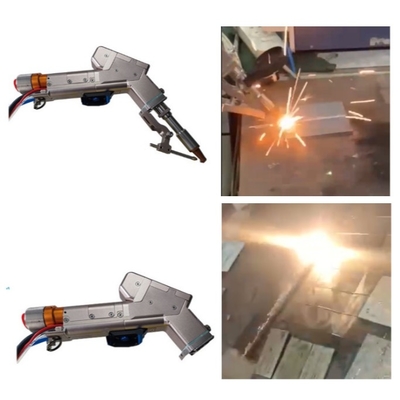

Handheld 3-in-1 Laser Welding Machine for Welding Cutting and Cleaning Welding Laser Beam Size 0-5mm Adjustable 0

Handheld 3-in-1 Laser Welding Machine  for Welding / Cutting and Cleaning Features:

  • Product Name: Fiber Laser Three-in-One Machine
  • Handheld Laser Gun Weight: 0.7kg
  • Laser Power: Up to 3000W for welding and 2000W for cleaning
  • Standard Focus length: 60 and 150mm standard Focus length adjustable
  • Welding Laser Beam Size: 0-5mm Adjustable
  • Cleaning Laser Beam Size: 0-50mm Adjustable
  • Laser Head Connection: QBH
  • Laser Beam Form: Line “一”
  • Welding Materials: Steel / Stainless Steel / Aluminum
  • Cooling method: Water Cooling
  • Gas: Argon / Nitrogen



The Handheld Single - Motor Three - Function Device stands out as an excellent choice for metalworking, machinery repair, and surface pre - treatment in workshops and manufacturing plants. It utilizes a maximum power of 3000W for welding and 2000W for cleaning, which allows it to handle steel, stainless - steel, and aluminum materials. The laser beam is in a linear shape and is connected through a QBH interface, and it requires the use of argon or nitrogen gas.

This handheld laser device, weighing 0.7 kilograms, comes with an adjustable standard focal length that spans from 60 to 150mm. Moreover, it provides adjustable laser beam diameters for both the welding and cutting procedures. The diameter of the welding beam can be adjusted within the range of 0 to 5mm, while the cleaning beam diameter can be varied from 0 to 50mm. To guarantee effective heat dissipation during its operation, the machine makes use of a water - cooling system. This helps in maintaining stable performance and extending its service life.


Handheld 3-in-1 Laser Welding Machine for Welding / Cutting and Cleaning Technical Parameters:



Product Name

Handheld Single Motor Three-in-One Machine

Laser Power

Up to 3000W for welding and 2000W for cleaning

Handheld Laser Gun Weight

0.7 KG

Cleaning Beam Form

Line " 一 "

Standard Focus length

60 and 150mm standard Focus length adjustable

Wire Feeding Device

Standard type : 0.8&1.0&1.2&1.6mm wire

Double Route Wire Feeder

Option (Same time double route feeding)

Welding Laser Beam Size

0-5mm Adjustable

Cleaning Laser Beam Size

0-50mm Adjustable

Fiber Connector

QBH

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Parameter Save

30 kinds of different welding parameter save

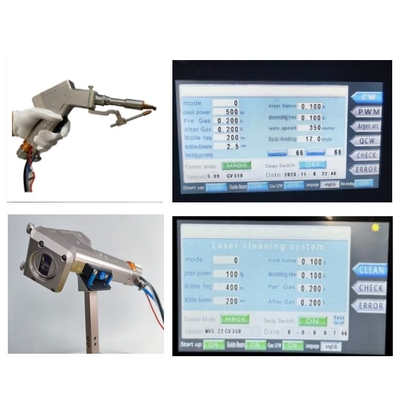

Handheld 3-in-1 Laser Welding Machine for Welding Cutting and Cleaning Welding Laser Beam Size 0-5mm Adjustable 1



Handheld 3-in-1 Laser Welding Machine for Welding / Cutting and Cleaning Application Advantages:


The HanWei HW - 20 - 60150 Handheld Single - Wobble Triple - Function Machine demonstrates outstanding application benefits. Its remarkable portability, attributed to its compact and lightweight build, makes it ideal for use in restricted areas and mobile tasks. This boosts operational agility without relying on elaborate machinery or a large labor force.

This apparatus combines welding, cutting, and cleaning capabilities. In welding, boasting a 3000W power output, it performs exceptionally well when joining steel, stainless steel, and aluminum. The welding beam, which can be adjusted from 0 to 5mm, is capable of fulfilling various welding demands. Concerning the cutting function, the laser beam can slice through materials with adjustable cutting velocity and depth. As for the cleaning function, with a 2000W power, the beam, adjustable from 0 to 50mm, is highly effective in cleaning a wide array of surfaces and is suitable for automotive, domestic, and industrial equipment cleaning.

It is energy - saving and cost - efficient. The single - motor setup conserves energy, simplifies work procedures, and cuts down on both time and energy usage. Its uncomplicated structure leads to reductions in production and maintenance expenses. Additionally, it is user - oriented, as it doesn't necessitate specialized instruction, is accessible to a wide range of users, and helps to minimize mistakes and training - associated costs.

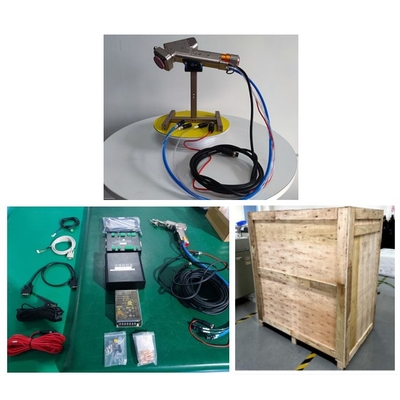

Handheld 3-in-1 Laser Welding Machine for Welding / Cutting and Cleaning Packing:


  • Seven kinds of nozzles
  • A set of Connection Cables and Line
  • Two Protective Lens
  • One 15v Power Supply
  • One Handheld Laser Head
  • One Controller
  • One Touch Screen Monitor
  • One Focus Lens for cleaning
  • One Safety Switch Clip
  • One Wire feeding device
  • One User Manual

Handheld 3-in-1 Laser Welding Machine for Welding Cutting and Cleaning Welding Laser Beam Size 0-5mm Adjustable 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. is committed to providing all global integrators with excellent welding technology. As a national high - tech and newly - recognized specialized enterprise, it focuses on the research, development, manufacturing, and sales of a comprehensive industrial chain that includes welding lasers, laser control systems, laser optical systems, and laser welding processes. The company's product lineup comprises nine major series of laser welding machines, such as the AMB Spot Ring Spot Welding Machine, Blue Light Welding Machine, along with their relevant supplementary components.

Hanwei Laser follows the business tenet of "prioritizing R&D, backed by technology, and protected by service" to serve B - end clients. It has a capable team boasting extensive knowledge and experience in laser welding and related areas. The products are widely applied in various sectors, including new energy batteries, automotive, electronics, and household appliances, demonstrating distinct welding capabilities. Significantly, the company has made remarkable technological advancements. The AMB Spot Ring Spot + Blue Light Composite Swing Welding Machine represents a world - leading innovation, solving the problems in welding highly reflective materials. Other models like the AMB Spot Ring Spot + Semiconductor Composite Welding Machine and the Semiconductor + Single Lamp Single Rod 600W Composite Laser Welding Machine have also efficiently addressed specific welding problems in the power battery field.



Handheld 3-in-1 Laser Welding Machine for Welding Cutting and Cleaning Welding Laser Beam Size 0-5mm Adjustable 3Handheld 3-in-1 Laser Welding Machine for Welding Cutting and Cleaning Welding Laser Beam Size 0-5mm Adjustable 4Handheld 3-in-1 Laser Welding Machine for Welding Cutting and Cleaning Welding Laser Beam Size 0-5mm Adjustable 5Handheld 3-in-1 Laser Welding Machine for Welding Cutting and Cleaning Welding Laser Beam Size 0-5mm Adjustable 6
