Precision Welding of Aluminium 2000W Handheld Single Motor Laser Welding Machine with 60mm Collimation Focal Length

Name: Precision Welding of Aluminium 2000W Handheld Single Motor Laser Welding Machine with 60mm Collimation Focal Length
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-DZJS-2000
Price: 1.00 USD
Availability: InStock

Brand Name:	HanWei
Model Number:	HW-DZJS-2000
MOQ:	1 Set
Price:	USD / Set
Payment Terms:	T/T
Supply Ability:	2000 Sets / year

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen. China

Certification:

Laser Power:

2000W

Electrical Input Voltage:

220v 50Hz / 60Hz

Welding Thickness:

4mm Stainless Steel Full Penetration

Welding Materials:

Steel / Stainless Steel / Aluminium

Welding Beam Size:

0-5mm Adjustable ( 0-10mm Option )

Collimation Focal Length:

60mm

Focusing Focal Length:

150mm

Feeding Wires:

0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )

Laser Output Mode:

4 Mode ( CW, PWM, QCW, Argon )

Welding Parameter Save:

30 Kinds Of Different Welding Parameter Save

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Highlight:

Aluminium Handheld Laser Welding Machine

2000W Handheld Laser Welding Machine

Product Description

2000W Handheld Single Motor Welding Machine With Capability of Welding 4mm Carbon Steel

2000W Handheld Laser Welding Machine With Capability of Welding 4mm Carbon Steel Description:

The Portable Single Wobble Welding Head represents a cutting - edge and innovative welding implement. Utilizing user - oriented design ideas, it adeptly addresses intricate welding requirements by meticulously taking into account both the practical elements of the welding procedure and the comfort during long - term usage. It provides a more productive and precise operational approach for welding undertakings.

This welding head features a lightweight, compact, and ergonomically designed construction, ensuring a comfortable and secure grip. It can be readily adapted to diverse welding tasks in a wide range of working circumstances. Be it large - scale factory manufacturing or outdoor on - site repair jobs, it is fully capable of achieving outstanding outcomes.

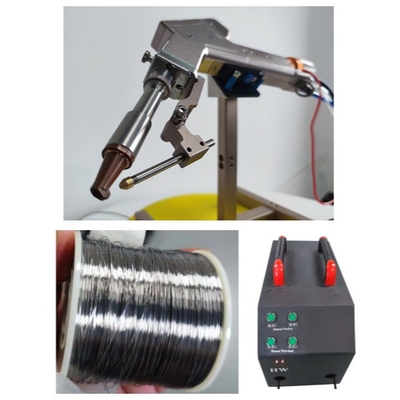

Precision Welding of Aluminium 2000W Handheld Single Motor Laser Welding Machine with 60mm Collimation Focal Length 0

2000W Handheld Laser Welding Machine With Capability of Welding 4mm Carbon Steel Features:

Handheld Laser Welding Machine
Product Name: Fiber Laser Welding Head
Handheld Laser Gun Weight: 0.7kg
Positioning: Red Guide Beam
Fiber Connector: QBH
Laser Beam Size: 0~5mm Adjustable
Fiber Cable: 10m Standard. (15 / 20m Option)
Gas: Argon / Nitrogen

The Fiber Laser Welding Head is an excellent Fiber Laser Device that incorporates a QBH fiber coupler. The diameter of its laser beam can be adjusted within the range of 0 - 5mm. Moreover, it is furnished with a red alignment beam to guarantee accurate positioning. This Fiber Optic Laser Welding Nozzle is lightweight, with an overall weight of merely 0.7kg, and is designed with great consideration for the comfort of the end - user.

2000W Handheld Laser Welding Machine With Capability of Welding 4mm Carbon Steel Technical Parameters:

Product Name	Handheld Single Motor Laser Welding Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	2000W
Handheld Laser Gun Weight	0.7kg
Welding Beam Form	Line " 一 "
Welding Beam Size	0-5mm Adjustable
Welding Parameter Save	30 kinds of different welding parameter save
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Fiber Connector	QBH
Position Guide	Red Guide Light
Cooling method in Winter	Add Antifreeze

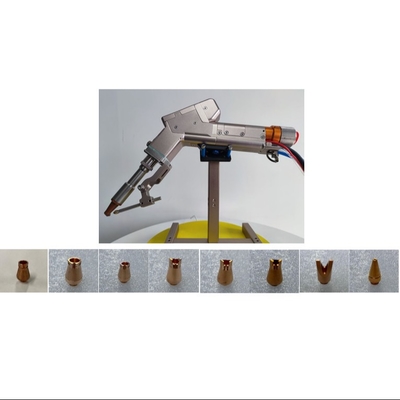

Precision Welding of Aluminium 2000W Handheld Single Motor Laser Welding Machine with 60mm Collimation Focal Length 1

2000W Handheld Laser Welding Machine With Capability of Welding 4mm Carbon Steel Application Advantages:

The HanWei HW - DZJS - 2000 portable welding gear showcases remarkable performance across a diverse range of situations. Its portability provides unparalleled ease for on - site welding work, enabling its use in almost any location. The wireless welding feature streamlines the procedure, enabling the quick completion of welding tasks. This product plays a crucial role in the construction, manufacturing, and repair industries, emerging as an indispensable tool for those in search of a reliable and efficient welding apparatus.

The handheld single - oscillating welding unit serves as an excellent alternative to traditional argon arc welding and electric welding techniques when handling thin metal sheets such as stainless steel, steel, and aluminum. The welding torch is lightweight, compact, and ergonomically crafted to ensure a comfortable grip. It is equipped with a safety latch and a touch - sensitive indicator light. Its user - friendly design places minimal requirements on the operator. The weld seam is of top - notch quality, the welding speed is fast, and there are no welding marks or color alterations, thus eliminating the need for post - welding buffing. It exhibits robust anti - interference capabilities and is furnished with an internally developed control system.

2000W Handheld Laser Welding Machine With Capability of Welding 4mm Carbon Steel Packing:

One Fiber Laser Welding Head
Two Protective Lens
One Controller
One User Manual
One 15v Power Supply
A set of Connection Cables and Line
Seven kinds of nozzles
One Wire feeding device
One Touch Screen Monitor
One Safety Switch Clip

Precision Welding of Aluminium 2000W Handheld Single Motor Laser Welding Machine with 60mm Collimation Focal Length 2

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. presents a wide range of laser equipment, encompassing both desktop and handheld versions. These setups incorporate advanced fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser techniques, carefully designed to meet the distinct requirements of customers. Additionally, they provide customized solutions for particular applications and offer training and assistance to enable customers to make the most of their laser systems. With branches and subsidiaries spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients across the globe.

Hanwei Laser centers its core business around the field of laser welding. The firm is committed to offering international laser integration enterprises top - notch laser welding technology. Its aim is to provide high - quality welding technology to all integrators. As one of the few global national high - tech specialized and emerging enterprises, it specializes in the R & D, production, and marketing of diverse welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.
