Multifunctional Handheld Single Wobble 3-in-1 Machine for Welding / Cleaning and Cutting Wire Feeding Device Standard

Name: Multifunctional Handheld Single Wobble 3-in-1 Machine for Welding / Cleaning and Cutting Wire Feeding Device Standard
Brand: Shenzhen Hanwei Laser Equipment Co., Ltd.
SKU: HW-20-60150
Price: 1.00 USD
Availability: InStock

Basic Properties

Place of Origin: Shenzhen. China

Brand Name: HanWei

Certification: CE

Model Number: HW-20-60150

Trading Properties

Minimum Order Quantity: 1 Set

Price: USD / Set

Payment Terms: T/T

Supply Ability: 2000 Sets / year

Stainless Steel Laser Welding Machine

3-in-1 Laser Welding Machine

Aluminium Alloy Laser Welding Machine

Specifications

Handheld Laser Gun Weight:	0.7 Kg	Laser Power:	Up To 3000W For Welding And 2000W For Cleaning
Welding Laser Beam Size:	0-5mm Adjustable	Cleaning Laser Beam Size:	0-50mm Adjustable
Welding Materials:	Steel / Stainless Steel / Aluminium	Handheld Laser Gun Materials:	Aluminium Alloy & Stainless Steel
Double Route Wire Feeder:	Option ( Same Time Double Route Feeding )	Wire Feeding Device:	Standard Type : 0.8&1.0&1.2&1.6mm Wire

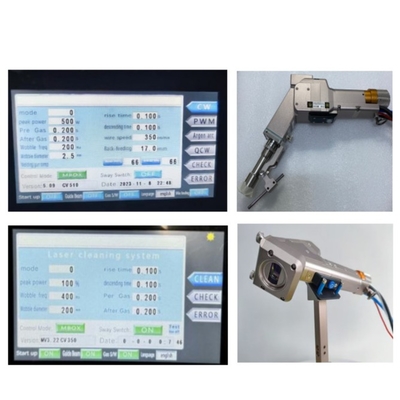

Welding parameter storage:	30 Kinds Of Different Welding Parameter Save
High Light:	Multifunctional Handheld Welding Machine , Cleaning Handheld Welding Machine , 3-in-1 Handheld Welding Machine

Product Description

Multifunctional Handheld Single Wobble 3-in-1 Machine

Multifunctional Handheld Single Wobble 3-in-1 Machine for Welding / Cleaning and Cutting Description:

The Handheld Single - Motor Tri - Function Device represents a significant leap forward in the realm of portable multi - utility tools. Driven by a single yet powerful motor, this device combines three essential functions: welding, cutting, and cleaning, all housed within an ergonomic and stylish handheld body.

When it comes to welding, it precisely controls the amperage and voltage to generate a stable arc, enabling strong and accurate welds on various materials like steel, stainless steel, and aluminum. For cutting tasks, a focused high - intensity beam penetrates materials of different thicknesses at adjustable speeds and depths, ensuring clean and efficient cuts. In the cleaning mode, it draws in cleaning agents or water and transforms them into a powerful adjustable high - pressure spray via a flexible nozzle, effectively removing rust, grime, and contaminants. This device demonstrates outstanding versatility and is suitable for a wide range of environments, including workshops, construction sites, and industrial maintenance, excelling in all three core functions.

Multifunctional Handheld Single Wobble 3-in-1 Machine for Welding / Cleaning and Cutting Features:

Product Name: Fiber Laser Three-in-One Machine
Handheld Laser Gun Weight: 0.7kg
Laser Power: Up to 3000W for welding and 2000W for cleaning
Standard Focus length: 60 and 150mm standard Focus length adjustable
Laser Head Connection: QBH
Laser Beam Form: Line “一”
Welding Laser Beam Size: 0-5mm Adjustable
Cleaning Laser Beam Size: 0-50mm Adjustable
Welding Materials: Steel / Stainless Steel / Aluminum
Cooling method: Water Cooling
Gas: Argon / Nitrogen

The Handheld Single - Motor Tri - Functional Unit serves as an outstanding alternative for metalworking, machinery repair, and surface pretreatment in workshops and manufacturing facilities. It employs a peak power of 3000W for welding and 2000W for cleaning, enabling it to process steel, stainless steel, and aluminum materials. The laser beam is linear and connects via a QBH interface, necessitating argon or nitrogen gas.

This 0.7 - kilogram handheld laser device features an adjustable standard focal length that ranges from 60 to 150mm. Additionally, it offers adjustable laser beam diameters for welding and cutting processes. The welding beam diameter can be adjusted from 0 to 5mm, while the cleaning beam diameter can vary from 0 to 50mm. To ensure efficient heat dissipation during operation, the machine utilizes a water - cooling system, thereby maintaining stable performance and prolonging its service life.

Multifunctional Handheld Single Wobble 3-in-1 Machine for Welding / Cleaning and Cutting Technical Parameters:

Product Name	Handheld Single Motor Three-in-One Machine
Laser Power	Up to 3000W for welding and 2000W for cleaning
Handheld Laser Gun Weight	0.7 KG
Adopt Laser Source	1064~1080nm Fiber laser source
Standard Focus length	60 and 150mm standard Focus length adjustable
Wire Feeding Device	Standard type : 0.8&1.0&1.2&1.6mm wire
Double Route Wire Feeder	Option (Same time double route feeding)
Welding Laser Beam Size	0-5mm Adjustable
Cleaning Beam Form	Line " 一 "
Fiber Connector	QBH
Cleaning Laser Beam Size	0-50mm Adjustable
Welding Parameter Save	30 kinds of different welding parameter save

Multifunctional Handheld Single Wobble 3-in-1 Machine for Welding / Cleaning and Cutting Application Advantages:

The HanWei HW - 20 - 60150 Handheld Single - Wobble Tri - Functional Machine showcases remarkable application advantages. Its highly convenient portability stems from its compact and lightweight design, rendering it suitable for confined spaces and mobile operations. This enhances operational flexibility without the need for complex machinery or a large workforce.

This device integrates welding, cutting, and cleaning functions. For welding, with a power output of 3000W, it excels at welding steel, stainless steel, and aluminum. The welding beam, adjustable within the 0 - 5mm range, can meet diverse welding requirements. Regarding the cutting function, the laser beam can sever materials with adjustable cutting speed and depth. In terms of the cleaning function, with a power of 2000W, the 0 - 50mm adjustable beam is effective in cleaning a wide variety of surfaces and is applicable in automotive, household, and industrial equipment cleaning.

It is energy - efficient and cost - effective. The single - motor configuration saves energy, streamlines work processes, and reduces both time and energy consumption. Its simple structure results in decreases in production and maintenance costs. It is also user - friendly, as it doesn't require specialized training, is accessible to a broad range of users, and helps to minimize errors and training - related expenses.

Multifunctional Handheld Single Wobble 3-in-1 Machine for Welding / Cleaning and Cutting Packing:

Seven kinds of nozzles
One 15v Power Supply
One Handheld Laser Head
One Controller
One Touch Screen Monitor
A set of Connection Cables and Line
Two Protective Lens
One Focus Lens for cleaning
One Safety Switch Clip
One Wire feeding device
One User Manual
