Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Laser Power Up to 2000w

Basic Properties
Place of Origin: Shenzhen. China
Brand Name: HanWei
Certification: CE
Model Number: HW-20-60150
Trading Properties
Minimum Order Quantity: 1 Set
Price: USD / Set
Payment Terms: T/T
Supply Ability: 2000 Sets / year
Tags

Deep Penetration Wobble Laser Welding Head

300mm Wobble Laser Welding Head

Wobble Laser Welding Head 1000w
Specifications
Welding Beam Form: —、o、◎、◎、△、8 Electrical Input Voltage: 220v 50Hz / 60Hz
Reflective Lens: 60° Reflective & 45° Reflective Laser Power: Up To 2000w
Welding Beam Size: 0-5mm Adjustable According To Welding Requirements Welding Materials: Steel / Stainless Steel / Aluminium
Collimation Focal Length: 60mm Focusing Focal Length: 150mm
Welding Parameter Save: 30 Kinds Of Different Welding Parameter Save Feeding Wires: 0.8&1.0&1.2&1.6mm Wire Feeding ( 2.0mm Wire Feeding Option )
High Light:

Handheld Laser Welding Machine

,

2000w Laser Welding Machine

,

Double Motor Laser Welding Machine
Product Description

Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters





Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Description:



The Handheld Dual - Motor Welding Head stands as an advanced and innovative welding device. Adopting a user - oriented design concept, it skillfully addresses complex welding demands. It carefully considers not just the practical aspects of the welding process but also the convenience during extended operations. As a result, it offers a more efficient and accurate solution for welding tasks.

This welding head features a lightweight, sleek, and ergonomically engineered structure, guaranteeing a comfortable and firm hold. It can be easily adapted to diverse welding jobs across a broad spectrum of working conditions. Be it large - scale manufacturing in industrial facilities or outdoor on - site maintenance work, it has the full ability to achieve excellent results.


Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Laser Power Up to 2000w 0

Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Features:

  • Product Name: Fiber Laser Welding Head
  • Handheld Laser Gun Weight: 0.7kg
  • Positioning: Red Guide Beam
  • Fiber Connector: QBH
  • Welding Beam Form: —,o,◎,◎,△,8
  • Reflective Lens: 60° Reflective & 45° Reflective
  • Laser Beam Size: 0~5mm Adjustable
  • Gas: Argon / Nitrogen



The Fiber Laser Welding Head represents a top - notch fiber laser apparatus furnished with a QBH fiber coupler. The diameter of its laser beam is adjustable within the span from 0 to 5 mm. Moreover, it comes with a red alignment beam for precise positioning.

This fiber optic laser welding nozzle is remarkably lightweight. It has been carefully engineered to enhance the end - user's comfort, and its total weight is merely 0.7 kg.



Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Technical Parameters:



Product Name

Handheld Double Wobble Laser Welding Head

Adopt Laser Source

1064~1080nm Fiber laser source

Welding Power

Up to 2000W

Handheld Laser Gun Weight

0.7kg

Reflective Lens

60° Reflective & 45° Reflective

Welding Beam Size

0-5mm Adjustable

Fiber Connector

QBH

Collimation Focal Length

60mm

Focusing Focal Length

150mm

Welding Beam Form

—,o,◎,◎,△,8

Position Guide

Red Guide Light

Welding Parameter Save

30 kinds of different welding parameter save



Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Laser Power Up to 2000w 1



Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Application Advantages:



The HanWei HW - 20 - 60150 handheld welding device, equipped with Reflective Lenses boasting reflection angles of 60° and 45°, demonstrates outstanding performance across diverse scenarios. Its portability provides unrivaled convenience for on - site welding tasks, enabling its application virtually everywhere. The wireless welding feature streamlines the operating procedure, enabling the swift completion of welding projects. This product is of great importance in the construction, manufacturing, and repair industries, emerging as a crucial tool for those in search of a reliable and efficient welding alternative.

The handheld dual - oscillating welding equipment serves as an excellent replacement for traditional argon arc welding and electric welding techniques when working with thin metal sheets such as stainless steel, ordinary steel, and aluminum. The welding head is noted for its lightweight construction, a compact layout that saves space, and an ergonomic design to ensure a comfortable grip. It is equipped with a safety latch and a touch - activated indicator light. Its user - friendly nature places minimal requirements on the operator. The quality of the weld seam is superior, the welding speed is rapid, and there are no visible welding marks or color alterations, thereby eliminating the necessity for post - welding grinding. It exhibits robust anti - interference capabilities and is outfitted with an in - house developed control system.

Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Packing:

  • One User Manual
  • One 15v Power Supply
  • A set of Connection Cables and Line
  • One Controller
  • One Wire feeding device
  • One Fiber Laser Welding Head
  • One Safety Switch Clip
  • Two Protective Lens
  • One Touch Screen Monitor
  • Seven kinds of nozzles

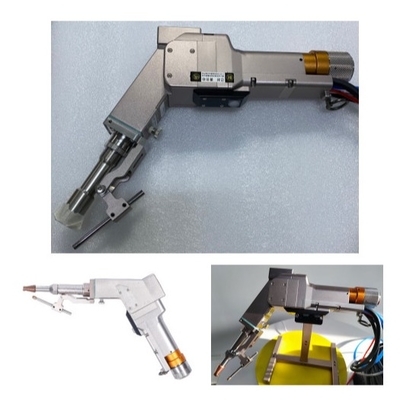

​Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Laser Power Up to 2000w 2



Shen Zhen HanWei Laser Enterprise and Feature:



Shenzhen Hanwei Laser Equipment Co., Ltd. offers an extensive array of laser configurations, encompassing both desktop and handheld varieties. These systems integrate cutting - edge fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, meticulously catering to the unique demands of their clientele. Additionally, they present tailored solutions for particular applications and furnish training and support to empower customers to fully leverage the capabilities of their laser systems. With branches and associated companies spread across Europe, North America, Asia, and the Middle East, Hanwei Laser has forged a global footprint, serving clients across the globe.

Hanwei Laser focuses its core business within the domain of laser welding. The company is dedicated to providing top - notch laser welding technology to international laser integration enterprises. It endeavors to supply high - quality welding technology to all integrators. As one of the scarce global national high - tech specialized and innovative enterprises, it specializes in the research, development, production, and marketing of diverse welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.

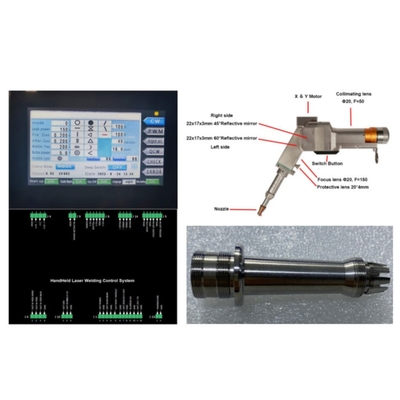

Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Laser Power Up to 2000w 3Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Laser Power Up to 2000w 4Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Laser Power Up to 2000w 5Handheld Double Motor Laser Welding Machine Stores 30 Different Welding Parameters Laser Power Up to 2000w 6
